Professional AGV Transfer Carts With Anti-collision Cushioning

  • Professional AGV Transfer Carts With Anti-collision Cushioning
  • Professional AGV Transfer Carts With Anti-collision Cushioning
  • Professional AGV Transfer Carts With Anti-collision Cushioning
  • Professional AGV Transfer Carts With Anti-collision Cushioning
  • Professional AGV Transfer Carts With Anti-collision Cushioning
  • Professional AGV Transfer Carts With Anti-collision Cushioning
  • Professional AGV Transfer Carts With Anti-collision Cushioning
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number AGV
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The Automated Heavy Duty Factory Rail Trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1500 set/sets, per year
Product Details
Power Battery Powered Warranty 24 Months
Load Capacity 1-1500 Ton Application Workshop, Production Line
Running Ways On Rails Power Supply Lithium Battery Power, Optional Power Supply
Leave a Message
Product Description

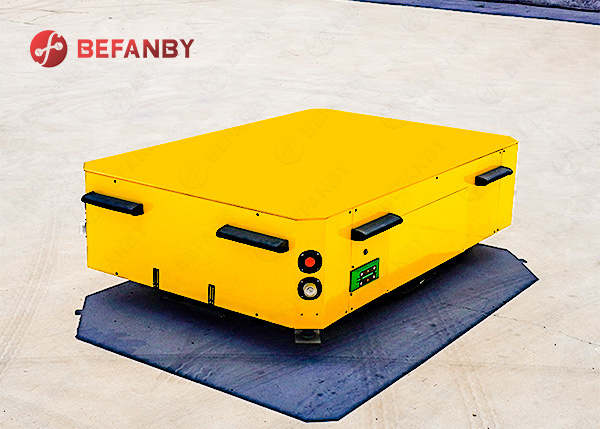

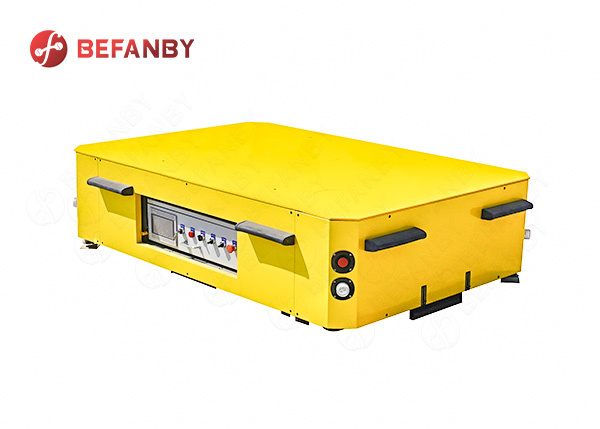

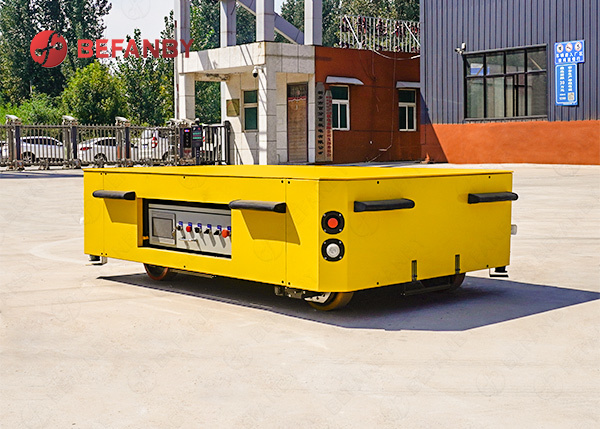

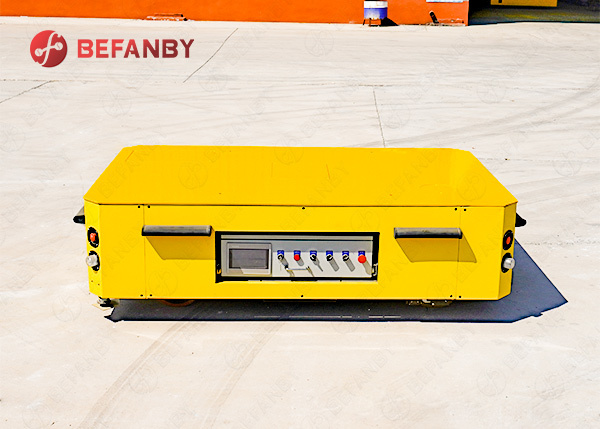

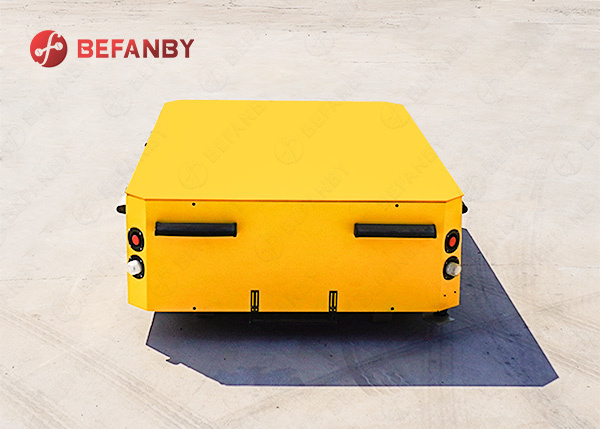

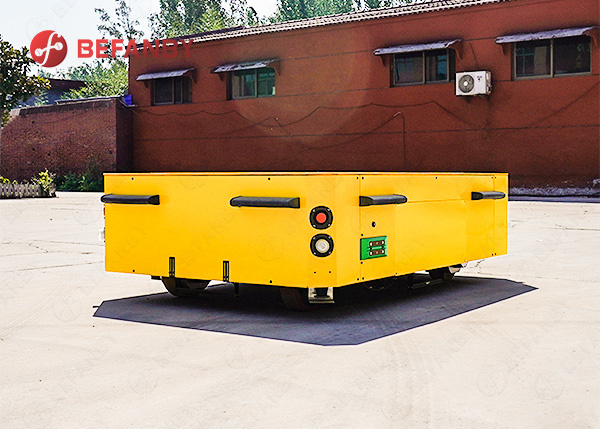

Professional AGV Transfer Carts With Anti-collision Cushioning


Product Description

This intelligent, trackless AGV (Automated Guided Vehicle) does not require the installation of fixed tracks. It can be configured with various navigation methods tailored to specific operating conditions, with each method suited to different types of work environments. Whether for distributing materials between production workshops or transporting workpieces alongside production lines, the vehicle can be custom-designed to align with the site layout and specific transport requirements.

All-Around Anti-Collision Buffering

To ensure the safety of personnel in the workplace, the AGV is equipped with anti-collision buffering devices around its perimeter. In the event of accidental contact with surrounding facilities or other objects, the buffering structure absorbs a portion of the impact—within its design capacity—thereby mitigating the force of the collision and providing supplementary protection for both the vehicle and the surrounding infrastructure. This design is particularly well-suited for industrial environments characterized by dense equipment, intersecting transport routes, or frequent material handling.

Product Parameter


Rated load(T) 2T 5T 10T 16T 20T 25T 30T 40T 50T 63T 80T 100T 150T
Table Size(MM) 2000*1500 3500*2000 3600*2000 4000*2000 4000*2200 4500*2200 4500*2200 5000*2500 5500*2500 5600*2500 6000*2600 6500*2800 10000*3000
Height(MM) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base(MM) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai lnner Gauge(MM) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(MM) 270 300 300 350 350 350 400 500 500 600 600 600 600
Wheel Quantity(PCS) 4 4 4 4 4 4 4 4 4 4 4 4 8
Running Speed(M/MIN) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(KW) 1 1.2 1.6 2 2 2.2 3.5 4 5 6.3 8 10 15
Max Wheel load(KN) 14.5 25.8 43 64.5 78 95 110 143 174 220 280 345 265
Control Mode Remote control and touch screen


Flexible Customization

Different industrial materials impose varying requirements on handling equipment. Parameters such as load capacity, platform dimensions, wheel configuration, operating speed, and control methods can all be tailored to the client’s specific working conditions. For items like steel, molds, mechanical components, and other large-scale workpieces, the load-bearing platform and auxiliary fixtures can be custom-designed. Furthermore, based on transport routes and operational needs, the equipment can be equipped with features such as wireless remote control, automated control, and other specialized functions. Through targeted structural design and functional configuration, these transport vehicles can be seamlessly integrated into existing production processes.

Applications

Intelligent, trackless AGV (Automated Guided Vehicle) transport carts are highly versatile and can be deployed across sectors including machinery manufacturing, automotive parts processing, warehousing and logistics, metalworking, and automated production lines. With their flexible movement, customizable load-bearing structures, and integrated all-around collision-avoidance buffering, these vehicles provide effective solutions for internal factory tasks—such as the distribution of raw materials, the transfer of semi-finished goods, the transport of molds, and the handling of finished products.
