Extra Long Size Docking Furnace Transport Remote Control Ferry Transfer Carts
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPT-3T |
| Minimum Order Quantity | 1 pcs |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 30-40 days as usual delivery,20-30days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance,70%balance by T/T before dispatch |
| Supply Ability | 1500 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Factory Transport | Load Capacity | 50T |
|---|---|---|---|
| Car Size | Customized | Exported Countries | Singapore, Australia, South Africa, Mexico |
| Electrical Parts | Siemens, Schneider, Nord | Safety Devices | Warning Lamp, Siren, Bumper |
| Power Supply | Electrical | ||
| Highlight | extra long motorized transfer trolley,remote control ferry transfer carts,docking furnace transport carts |
||
Product Description
Extra Long Size Docking Furnace Transport Remote Control Ferry Transfer Carts
Product Description

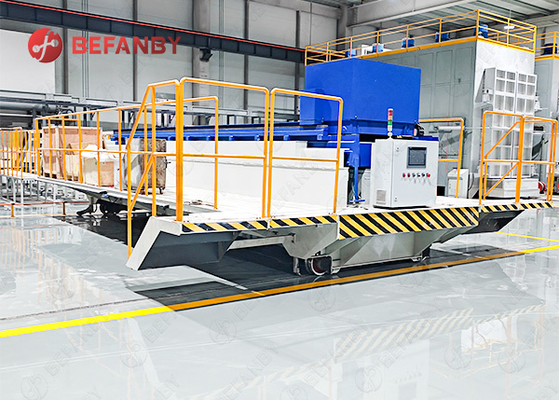

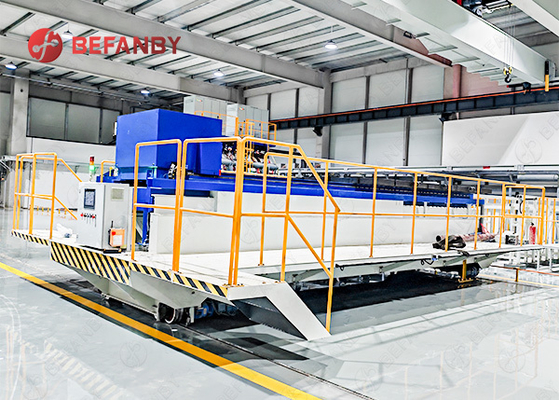

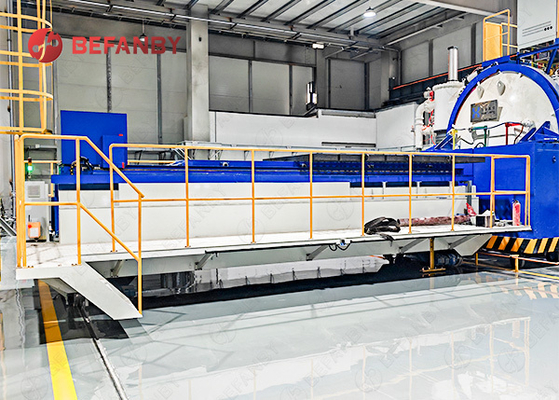

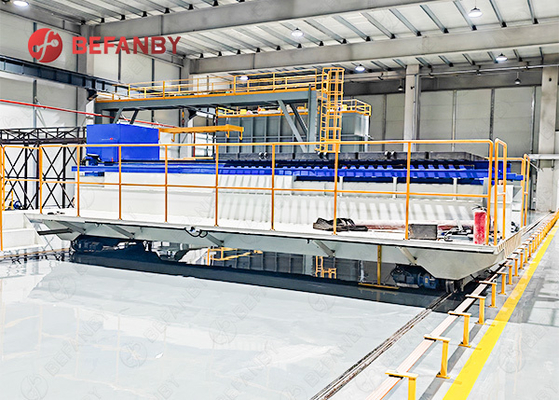

Extra-Long Platform Rail-Mounted Shuttle Vehicle - A Solution for Docking Inside High-Temperature Furnaces
This rail-mounted shuttle cart features an extra-long platform design, meeting the needs of transporting large materials or equipment over long distances. Operating on dedicated rails, the cart offers stable operation and high positioning accuracy. This cart is specifically designed for docking and handling equipment inside high-temperature furnaces.
Technical Parameter
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-25T | KPT-30T | KPT-40T | KPT-50T | KPT-63T | KPT-80T | KPT-100T | KPT-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
|
Company Profile
Main Parts
----The entire cart utilizes a high-strength welded steel structure, offering excellent high-temperature resistance and load capacity, ensuring safe operation in high-temperature environments such as metallurgy and casting.
----Based on the on-site working environment, the platform is equipped with thermal insulation, a hydraulic lifting system, and a tilting and stretching device to ensure stability and efficiency when docking with the furnace mouth or equipment within the furnace.
Advantages
The cart uses batteries as a power source, which is green and environmentally friendly and can achieve long-term continuous operation. The cart body structure is sturdy and has strong carrying capacity. The platform size, load tonnage, and operating speed can be customized according to the actual working conditions of the customer. The operating system supports dual modes of steering wheel manual driving and automatic navigation. It can be driven and operated by personnel, or integrated with laser, magnetic stripe or visual navigation system to achieve automatic operation.
Application
The rail layout can be customized to meet on-site process requirements, supporting curved rails, dual-rail translation, cross-docking, or multi-station docking, enabling seamless connections between different furnace areas or production sections.
To meet the needs of various industries, the cart's load capacity and dimensions are customizable, with common load capacities ranging from 5 to 100 tons and platform lengths extending to over 20 meters. The cart's structure is constructed of high-strength steel, offering high-temperature and wear resistance. Optional modules include hydraulic lift and wireless remote control.
