Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPJ-15T
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Production Line Or Crossing Rails Workshop Rated Load 15t
Max. Capacity Up To 300ton Car Size 2000*2000*500mm
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Rail Wagon Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
High Light

motorised trolleys carts

,

motorized material handling equipment

Leave a Message
Product Description
Shipyard cast steel wheel steel tube rail wagon on tracks with slope

Working principle of shipyard rail wagon


KPJ series rail wagon is powered by cable drum.The power source 380V alternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the rail wagon. The rail wagon can realize full automatic operation by PLC system.



Detailed description of the railway transport wagon



This kind of shipyard rail wagon is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.



The main parts of the box girder rail transporters includes Cable drum, driving system, box girder frame, electric appliance, etc.



wide platform transport wagon Driving system of the rail wagon Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 2

                  Frame                                              Driving system                                  Cable drum



Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 3



Features of rail wagon on slope

  • Anti-explosion,Anti-high temperature;
  • Powered by cable;
  • With lifting holes, convenient to shipment;
  • Stable start, big starting power, long lifetime;
  • Simple structure, low cost ;
  • Running distance is limited;
  • Safe and convenient operation ;
  • High using frequency ;
  • Unlimited load capacity
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • High efficiency, low energy consumption;

Technical parameters of box girder rail transporters


Model
KPJ-2T KPJ-10T KPJ-20T KPJ-30T KPJ-50T KPJ-63T KPJ-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of shipyard rail wagon on slope

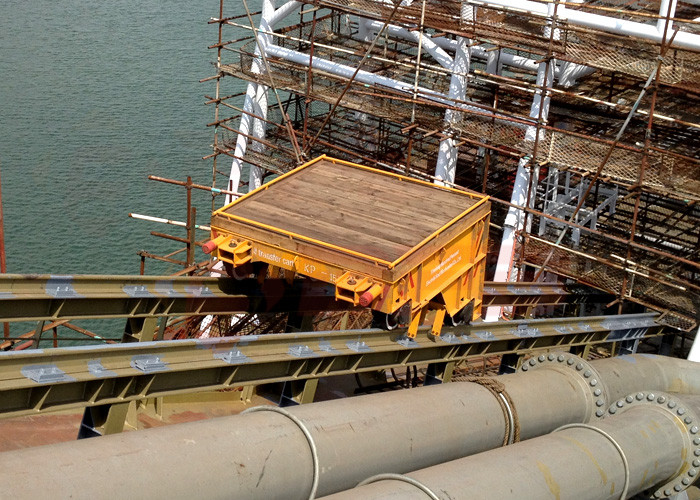

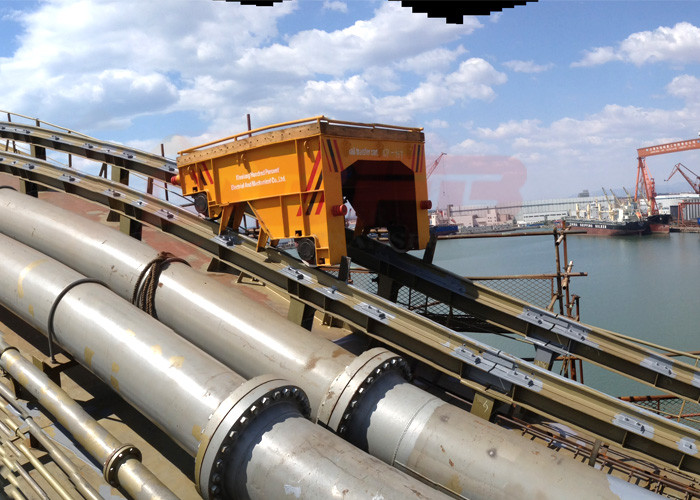

This kind of rail wagon is running on steel tracks or steel squre bars.It is commonly applied in shipyard, seaside to transferring ship parts or ship maintenance machine.



Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 4 Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 5



For the rail wagon is running on tracks on slope, so the wagon is special design. It can meets the working environment and improve the working efficiency.


shipyard apply rail wagon on tracks shipyard apply rail wagon on tracks



shipyard apply rail wagon on tracks shipyard apply rail wagon on tracks





The rail wagon is also applied in the following working station:

  • Carry loads along assembly lines;
  • transfer material from one work station to the next;
  • store and transport an entire shift worth of production.
  • They can even be used as a stable yet moveable machine base.

Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 10 Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 11



Delivery of rail wagon


Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 12 Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 13



Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 14 rail transporter


Generally the rail wagon on tracks is delivery through container, but if the platform is too large, it can be delivery through frame rack

Customer visit in our factory


rail wagon rail wagon

Customer feedback

 rail wagon

Quality control of rail traverser


shipyard apply rail wagon on tracks



Other rail hwagon in BEFANBY company


Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 20 shipyard apply rail wagon on tracks Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 22 Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 23




Our company

shipyard apply rail wagon on tracks

Our certificate
Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 25Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 26Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope 27

FAQ

  1.  Q: What is the capacity of the shipyard apply rail wagon on tracks?                                           A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

      2. Q: What is the using candition?
         A: The environment temperature should be in level. such as production line

      3. Q: What is the working speed of the rail wagon?
          A: The standard running speed is 0-20m/min.
