30T Die Change Mold Transfer Cart , Automobile Assembly Line Hydraulic Die Cart
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-30T |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 600 sets one year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Production Line Or Paper Industry | Rated Load | 30T |
|---|---|---|---|
| Max. Capacity | Up To 300ton | Car Size | 8000*3000*500mm |
| Electrical Equipment | Siemens, Schneider, Nord | Exported Countries | Mexico, Australia, Singapore |
| Material | Q235 Steel | Wheel Quantity | 4 Pcs |
| Package | The Whole Driving Carriers Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate | Delivery Time | 45-60 Days After Received Advamced Payment |
| Payment Terms | T/T, L/C | Port | Qingdao/Tianjin/Shanghai/Ningbo |
| High Light | mold change carts,hydraulic die cart |
||
Product Description

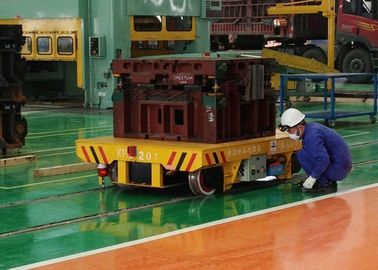

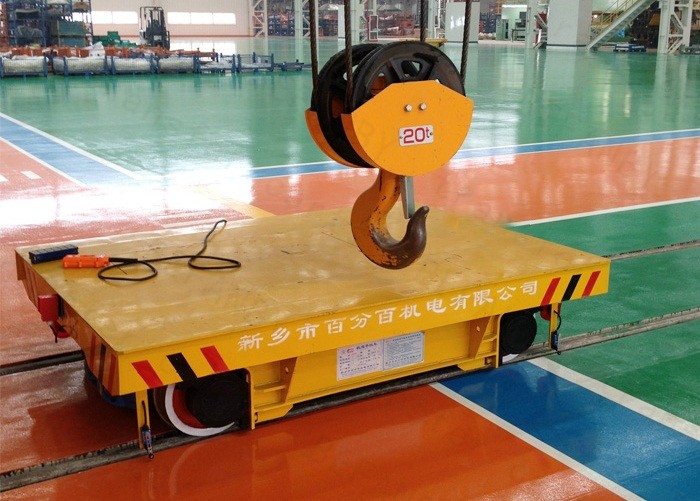

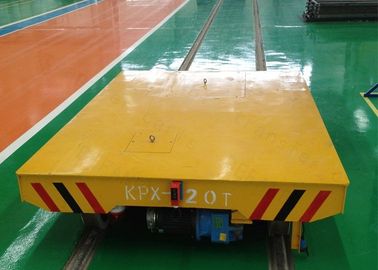

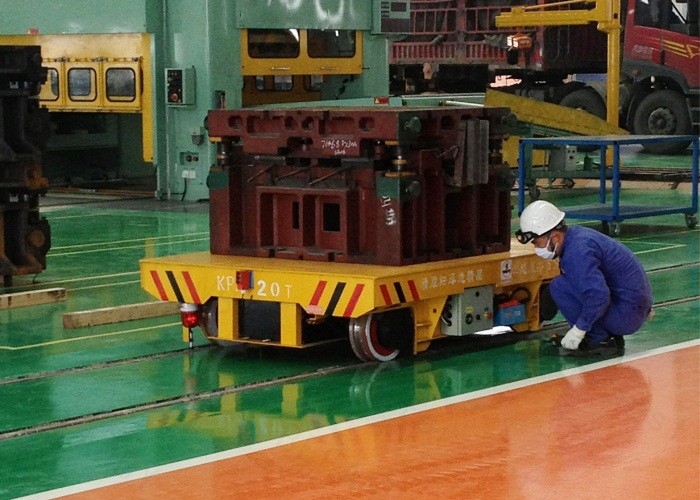

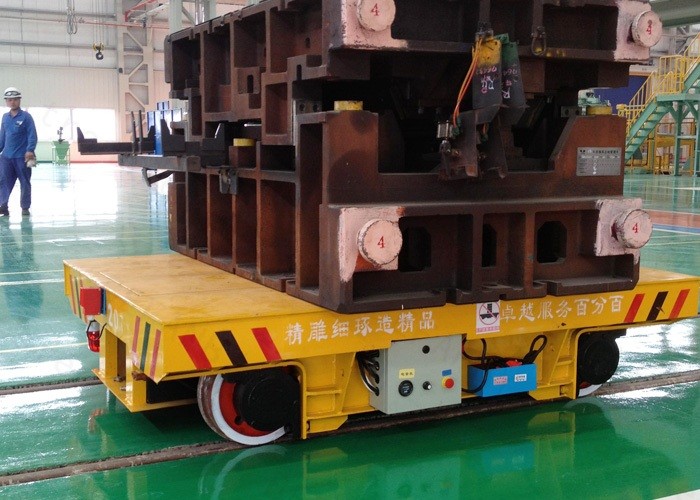

30 tons die change driving carriers on rail in automobile assembly line
Working principle of die change driving carriers
The die change driving carriers on rail is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.
Detailed description of 30 tons die change driving carriers
This kind of steel coil handling railway trailer is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
The main parts of steel coil handling railway trailer outdoor includes storage battery, driving system, box girder frame, electric appliance, etc.
Frame Storage battery Charger
Driving system Casting wheel Alarm
Features of die change driving carriers on rail
- Box girder structure
- Without cable, flexibility & durable
- Can run on arc-shape rails, S-shape rails, crossing rails
- can be applied high using frequency condition
- can be used in high-temperature environment
- can be used in explosion-proof environment
- Reasonable design, reliable operation;
- Can be add hydraulic lifting device;
- Can be add dumping device;
- High efficiency, low energy consumption;
Technical parameters of die change driving carriers
|
Model
|
KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Application of steel coil handling railway trailer
This kind of steel coil handling railway trailer is running on steel tracks or steel squre bars.It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.

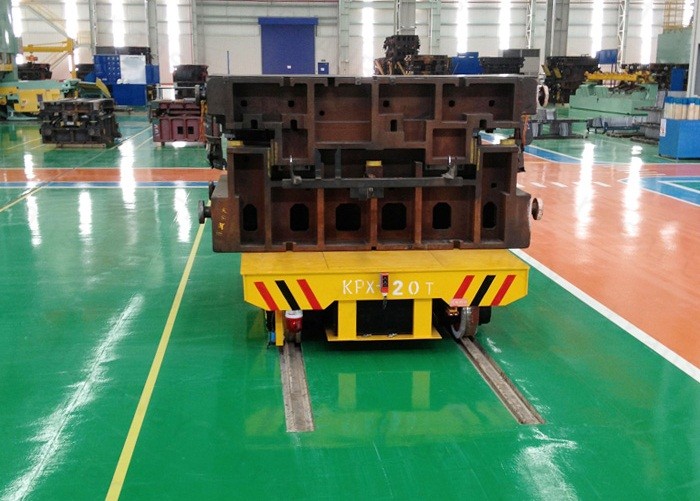

The 20t die driving system is applied in die manufacturing plant to transfer steel dies from production line to warehouse or to painting room.
In order not to influence other vehicles travelling within the workshop, the rail is in level with the floor.
The die change driving carriers also applied in the following working station:
- Carry loads along assembly lines;
- transfer material from one work station to the next;
- store and transport an entire shift worth of production.
- They can even be used as a stable yet moveable machine base.
The die change driving carriers can be applied on turning rails, arc-shape rails.
Delivery of steel coil handling railway trailer
Generally the steel structure die change driving carriers is delivery through container, but if the platform is too large, it can be delivery through frame rack
Customer visit in our factory
Quality control of interbay transfer cart
Other rail interbay transfer cart in BEFANBY company
Our company
Our certificate
FAQ
- Q: What is the capacity of the die change driving carriers? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.
2. Q: What is the using candition?
A: The environment temperature should be in level. such as production line
3. Q: What is the working speed of the die change driving carriers?
A: The standard running speed is 0-20m/min.
