Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Payment Terms Table Size Supply Ability Power Supply Mode
Product Name Customized Steel Ladle Transfer Carts On Rail With Electric Scale And Screen Made In China Load Capacity 1-300T
Application Industrial Field Running Speed 0-20m/min
Running Distance Unlimited Warranty 12 Months
Color Customized Size Customized
High Light

material handling trolley

,

battery powered cart

Leave a Message
Product Description





Steel ladle transfer carts on rail with electric scale and screen





KPX series' ladle transfer cart---- it is powered by storage battery, it is our specialized research, Simply speaking, it is an electric cart. Compaired with KPD, It has no limited distance; Compaired with others, it is simple operation and structure, But its main source powered is battery, the maintenance free battery is equipped to make the cart more convenient. its lifetime reachs to about 2.5 years, About this, it is popular in many foreign countries like South Aferican ,Germany , Turkey etc.Our company have professional team and utilize more advanced technique to make it.

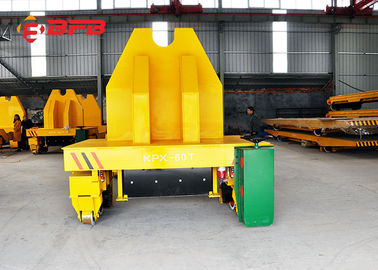

Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 0





Character Showing
  • Simple structure
  • Anti-explosion
  • Anti-high temperature
  • Customization can be supported
  • Safe devices are installed
  • China professional manufacture
  • Low noise
  • Easy Operation
  • Environmental
  • Long lifetime (about 2.5 years)
  • Stable start
  • Big starting power
  • Small impact to the geer reducer
  • Low voltage
  • Regular maintenance
  • Charge 750 times, reduce 1/3 lifetime
Parts Showing

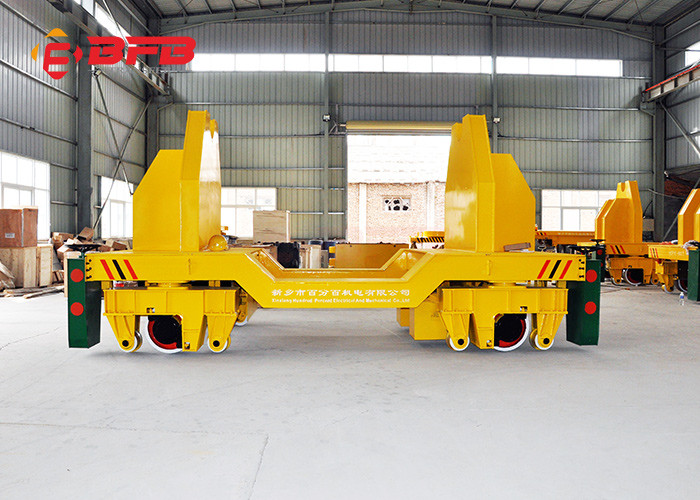

Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 1


Working Principle


Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 2



KPX series' railroad carriage is battery powered . The battery is installed in the carts. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the flat cart to start, stop, go forward , back ward , adjust the speed and so on.

Application Showing


Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 3



KPX seires' transfer cart can be used in many occasions, Such as industry field(Steel plant/Metallurgy Field); Chemical Industry(Copper Industry); Warehouse;Working Line; etc. due to its simple structure, wherever in the plant or assembly line,only exists track, and the battery is charged fully,it can transport anywhere.



For ladle transfer cart, It can run in high temperature, and the load capacity can reach to 300t. and the electrical scale and screen can be equipped as per your demand. and it has been our comment product for applied in steel field.


Different ladlr transfer cart showing

Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 4Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 5Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 6Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 7
Technique Parameter

Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 1 1.2 2 2.2 3 3.5 4 5 6.3 8 10 15 15
Battery Capacity 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage 24 36 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Our Company


Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 8


Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Our Advantage


Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 9


Our Customer


Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart 10


Production Supply Scope

Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-300ton, can be customized per client demand Running distance Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery Using frequency
Motorized Transfer Trolley KPJ Cable Drum Running distance
Busbar Powered Handling Cart KPC Busbar Working shop
Towed Rail Trailer KP Tractor 1-100t Working shop
Steerable Towed Car BWT Tractor Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. Working environment
Trackless Handling Machine BWP Battery Working path

Our After Service
  • Our commitment:
  • The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 16 hours engineering service and 24 hours internet service for our customers
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
