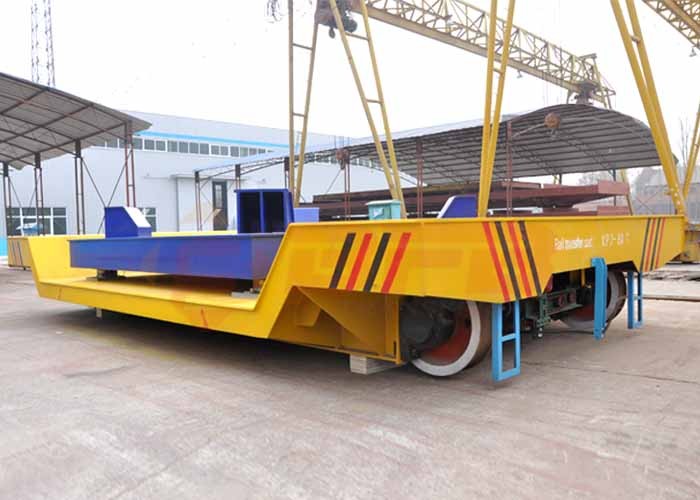

Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-30T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Feature Steady, Security Rated Load 50t
Capacity Up To 300ton Car Size Custom Car Length And Width
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Turning Angle 0-360 Degree Wheel Material ZG 55, Cast Steel
Product Origin Xinxiang, China Warranty 12 Months
Highlight

industrial transfer car

,

battery powered cart

Leave a Message
Product Description


Environmental 30t metallurgy industry apply motorized transfer trolley on railway



Features of transfer trolley on railway
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • Electric weighing scale and LED display can be installed;
  • Can run on straight rails or arc-rail, turning rails
  • Low failure rate, working steady;
  • High efficiency, low energy consumption,
  • Reasonable design, reliable operation.
Main parts of transfer trolley

Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 0Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 1
                 Casting wheel                                                          Electric Control Box

Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 2Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 3
                          Charger                                                             Battery


Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 4Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 5
            Sound & Light Alarm                                                     remote control


Application of transfer trolley on railway


The steel transfer trolley is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.



In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design.



In order to realize the lifting and loading function, the additional device can be added, such as hydraulic lifting device, dumping device, rotary device, etc.





Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 6





Technical parameters of rail transfer trolley

Model
KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

The applying site is one of our client’s factory, they use the transfer trolley to transfer steel ladle from production line to warehouse. In order to improve the working efficiency, the use two sets ladle cars for alternative using.

Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 7

Delivery of transfer trolley on railway

Generally the rail bogie is packed by high quality plastic cloth, if the platform is small, it will put in a container, if the platform is large, it will put in a frame rack.


Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 8


Customer visit in our factory


ladle car ladle car



                      Spanish client                                                                   India client



Quality control of rail bogie


Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 11





Other rail handling car in BEFANBY company


Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 12 Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 13 Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 14 Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 15



FAQ



1.      Q: What is the capacity of the motorised transfer trolley?

         A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

2.      Q: What temperature the transfer trolley on railway can bearing? 500 degree or higher?

         A: The environment temperature can reach 200 degree, and the steel ladle temperature can reach to   1500 degree.

3.      Q: What is the working speed of the ladle car?

         A: The standard running speed is 20m/min.



Our company and our team



Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 16Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 17



Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd is a professional manufacturer and exporter of material handling equipment with more than 16 years' experience, and our product has exported to more than 50 countries like America, South Africa, Turkey, Bangladesh...



Our Advantage



Metallurgy Industry Ladle Transfer Cart 30T Capacity Environmental Friendly 18





Our service

  • The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
