Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-30T
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 60 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Feature Steady, Security, Anti-high Temperature Rated Load 30t
Capacity Form 1 Ton To 300ton Car Size Custom Car Length And Width
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Rail Gauge(mm) 1435 Wheel Material Forged Wheel Or Casting Wheel
Wheel Quantity 4 Pcs Rail Type P38
Main Works Of The Product Rail Mounted Molten Steel Carriage
High Light

industrial transfer car

,

material handling trolley

Leave a Message
Product Description
30t large platform electric rail mounted molten steel carriage with electric scale and LED screen

Working principle of rail mounted molten steel carriage


The molten steel carriage is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive rail ladle car working.



Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 0steel metal scrap carts



Features of molten steel carriage with electric scale
  • Box girder structure;
  • Anti-high temperature and explosion-proof;
  • PLC automatic control;
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • Electric weighing scale and LED display can be installed;
  • Can run on straight rails or arc-rail, turning rails;
  • Low failure rate, working steady;
  • High efficiency, low energy consumption;
  • Reasonable design, reliable operation;

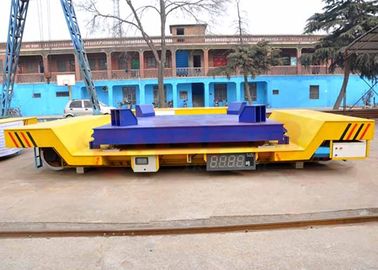

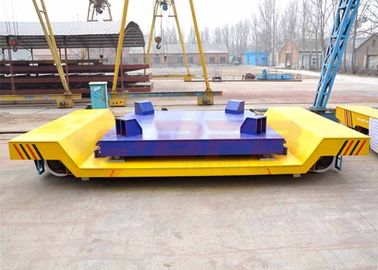

Photos of molten steel carriage





Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 2 Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 3


Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 4 Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 5



Application of molten steel carriage with electric scale


The molten steel carriage is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.



In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design. This kind of ladle car can run on both straight rails and S-shaped rails.



Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 6



Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 7



The applying site in one of our client’s factory, they use the scrap bucket carts to transfer steel scraps ladle from production line to warehouse. In order to improve the working efficiency, the use two sets ladle cars for alternative using.



Several kinds of of molten steel carriage with electric scale



Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 8Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 9





Technical parameters of molten steel carriage with LED screen

Model
KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Delivery of rail scrap transfer car


steel metal scrap bucket carts


Customer visit in our factory about molten steel carriage with LED screen


steel metal scrap bucket carts steel metal scrap bucket carts



Customer feedback of molten steel carriage with LED screen



 steel metal scrap bucket carts

Quality control of steel ladle car


steel metal scrap bucket carts





Other rail handling car in BEFANBY company

steel metal scrap bucket carts steel metal scrap bucket carts Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 17 steel metal scrap bucket carts

Molten Steel Material Transfer Trolley , Battery Powered Cart Ladle Powered Transport Car With LED Screen 19



Our service



  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
