Busbar powered rail transfer bogie for steel plate handling bay to bay

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPC-25T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply Mode Busbar Power Application Heavy Industry
Car Size Can Be Customised Load Capacity Up To 300 Ton
Electrical Parts Siemens, Schneider, Nord Saftey Devices Warning Lamp, Siren, Bumper
Exported Countries South Africa, Australia, Syria Product Name 25t Steel Factory Apply Railway Motorised Cart Running On Steel Rails
Wheel Diameter(mm) 400 Rail Gauge(mm) 1435
Wheel Quantity 4 Pcs Contact Marketing@bfbhandling.com
High Light

heavy duty cart

,

industrial material handling carts

Leave a Message
Product Description

Busbar powered rail transfer bogie for steel plate handling bay to bay



Working principle of the motorized rail transfer bogie



The rail transfer bogie is powered by the sliding contact line or busbar.The alternative current is supplied consistently to the pulling motor by slide knife taken sliding contact line through electric control system.

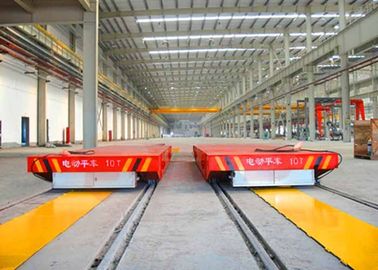

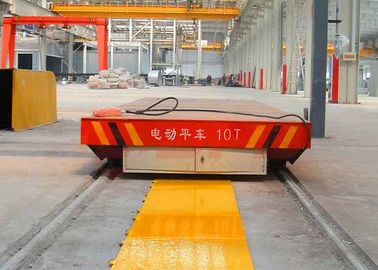

Photo show of railway motorized rail transfer bogie


These kind of rail transfer bogie is applied to transfer heavy steel or aluminum coils. In order to inviod the steel coils falling down from the transfer cart, we designed a V-frame. It can protect the coils also the security. We can recommend you the direction of the V-frame according to the coils.



Main parts



The main parts of motorized rail transfer bogie is cart frame, motor, reducer, cable drum, electric appliance, etc.

Busbar powered rail transfer bogie for steel plate handling bay to bay 0



Photo show



Busbar powered rail transfer bogie for steel plate handling bay to bay 1Busbar powered rail transfer bogie for steel plate handling bay to bay 2Busbar powered rail transfer bogie for steel plate handling bay to bay 3Busbar powered rail transfer bogie for steel plate handling bay to bay 4



The rail transfer bogie is applied in metal industry factory to transfer large dimension steel plate, steel structure. The transport cart is remote control, it is convenient to operate.


The parameter of railway motorised rail transfer bogie

Model KPC-2t KPC-20t KPC-50t KPC-100t KPC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance(m) 70 70 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

BEFANBY Company

Busbar powered rail transfer bogie for steel plate handling bay to bay 5



Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China meanwhile we also design material handling solution according to client's demand



Customer showing from worldwide


Busbar powered rail transfer bogie for steel plate handling bay to bay 6


Parts of BEFANBY Certificates


Busbar powered rail transfer bogie for steel plate handling bay to bay 7


Delivery of railway motorized rail transfer bogie


Busbar powered rail transfer bogie for steel plate handling bay to bay 8



Generally the railway motorised cart is delivery through container. If the dimension of the transport is too large, itcan be break up or delivery through flat rack.



BEFANBY advantages
  • The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
