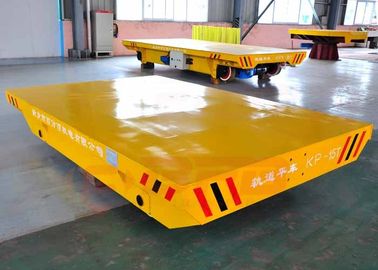

Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity

  • Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity
  • Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity
  • Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity
  • Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity
  • Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity
  • Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity
Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KP-10T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Heavy Industry Car Size Can Be Customised
Load Capacity Up To 100 Ton Exported Countries South Africa, Australia, Syria
Product Name 25t Steel Factory Apply Railway Motorised Cart Running On Steel Rails Wheel Diameter(mm) 400
Rail Gauge(mm) 1435 Wheel Quantity 4 Pcs
Contact Marketing@bfbhandling.com Warranty 12 Months
High Light

material handling carts

,

material moving carts
Leave a Message
Product Description

Heavy duty manual handling cart on tracks for equipment transfer



The manual handling cart is non-power, or it is man power or towed by forklift. These kind of manual handling cart is applied to transfer light duty material within workshop or warehouse.

Without motor and reducer, this kind of transfer car can be applied in painting room and blasting room.



Production Showing



Advantages of manual handling cart

  • Box girder structure, not easy to deform
  • Low cost
  • Anti-explosion and anti- high temperature
  • Cab be towed or push by manual
Main of manual handling cart


The main parts of the manual handling cart includes cart frame, towed hook, cast wheel, control box, etc.



Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity 0Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity 1



Cart Frame


Material is Q235-B. It is formed by welding the section steel and steel plate together.This kind of design has the advantages of heavy carrying capacity and making the table bear equivalent force.



Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity 2



Application of the manual handling cart



Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity 3Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity 4Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity 5



The motorised rail transfer cart is applied in metal industry factory to transfer large dimension steel plate, steel structure. The transport cart is remote control, it is convenient to operate.



They also can be used in the high-temperature environment. The hydraulic lifting device can be installed on the handling carts.



The parameter of manual handling cart

Model KP-2t KP-20t KP-50t KP-100t
Rated Load(t) 2 20 50 100
Table Size(mm) Length(L) 2000 4000 5500 6500
Width(W) 1500 2200 2500 2800
Heigth(H) 450 550 650 850
Wheel Base(mm) 1200 2800 4200 4900
Rail Inner Gauge(mm) 1200 1435 1435 2000
Wheel Diameter(mm) 270 350 500 600
Wheel Quantity 4 4 4 4
Ground Clearance(mm) 50 50 50 75
Running Distance(m) 70 70 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8
Reference Weight(t) 2.8 5.9 8 14.6
Recommended Rail Model P15 P24 P43 QU100

BEFANBY Company

Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity 6



Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand


Customer from worldwide


Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity 7


Parts of BEFANBY Certificates



Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity 8


Delivery of manual handling cart


Heavy Duty Material Transfer Carts For Equipment 1 - 100 Ton Load Capacity 9



Generally the manual handling cart is delivery through container. If the dimension of the transport is too large, it can be break up or delivery through flat rack.


BEFANBY after sale service
  • The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
