Electric Winch Industrial Trolley Cart , Towed Anti Explosion Rail Transfer Cart

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KP-15T
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Production Line Or Crossing Rails Workshop Rated Load 15t
Max. Capacity Up To 300ton Car Size 2000*2000*500mm
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Rail Wagon Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
High Light

material moving carts

,

industrial trolley cart

Leave a Message
Product Description

Electric winch towed rail electric flat car with anti-explosion function

Working principle of winch towed rail electric flat car


KPJ series electric flat car is powered by cable drum.The power source 380V alternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the rail wagon. The electric flar car can realize full automatic operation by PLC system.



Detailed description of winch towed rail electric flat car



This kind of electric flat car is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.



The whole cart frame adopts crane box girder structure. It has advantages of no easy deformation, large bearing ability.



Electric Winch Industrial Trolley Cart , Towed Anti Explosion Rail Transfer Cart 0



The main parts of the winch towed rail electric flat car includes Cable drum, driving system, box girder frame, electric appliance, etc.



wide platform transport wagon Driving system of the rail wagon Electric Winch Industrial Trolley Cart , Towed Anti Explosion Rail Transfer Cart 3

                  Frame                                              Driving system                                  Cable drum







Features of winch towed rail electric flat car

  • Anti-explosion,Anti-high temperature;
  • Powered by cable;
  • With lifting holes, convenient to shipment;
  • Stable start, big starting power, long lifetime;
  • Simple structure, low cost ;
  • Running distance is limited;
  • Safe and convenient operation ;
  • High using frequency ;
  • Unlimited load capacity
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • High efficiency, low energy consumption;

Technical parameters of winch towed rail electric flat car



Model
KPJ-2T KPJ-10T KPJ-20T KPJ-30T KPJ-50T KPJ-63T KPJ-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of winch towed rail electric flat car

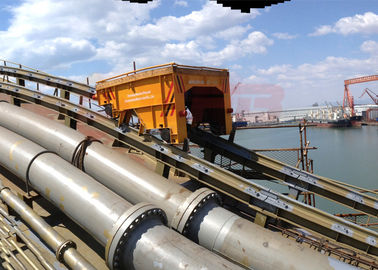

This kind of electric flat car is running on steel tracks or steel squre bars.It is commonly applied in shipyard, seaside to transferring ship parts or ship maintenance machine.

For the winched towed electric flat car is running on tracks on slope, so the wagon is special design. It can meets the working environment and improve the working efficiency.


shipyard apply rail wagon on tracks shipyard apply rail wagon on tracks



ship parts handling motorised transfer trolley shipyard apply rail wagon on tracks



electric flat car electric flat car



The electric flat car is also applied in the following working station:

  • Carry loads along assembly lines;
  • transfer material from one work station to the next;
  • store and transport an entire shift worth of production.
  • They can even be used as a stable yet moveable machine base.
Delivery of winch towed rail electric flat car


Electric Winch Industrial Trolley Cart , Towed Anti Explosion Rail Transfer Cart 10 electric flat car



ship parts handling motorised transfer trolley electric flat car


Generally the electric flat car on tracks is delivery through container, but if the platform is too large, it can be delivery through frame rack

Customer visit in our factory


electric flat car rail wagon

Customer feedback

  winch towed rail electric flat car

Quality control of rail traverser


 winch towed rail electric flat car




Other rail hwagon in BEFANBY company


Electric Winch Industrial Trolley Cart , Towed Anti Explosion Rail Transfer Cart 18 shipyard apply rail wagon on tracks Electric Winch Industrial Trolley Cart , Towed Anti Explosion Rail Transfer Cart 20




Our company

ship parts handling motorised transfer trolley

Our certificate
Electric Winch Industrial Trolley Cart , Towed Anti Explosion Rail Transfer Cart 22Electric Winch Industrial Trolley Cart , Towed Anti Explosion Rail Transfer Cart 23Electric Winch Industrial Trolley Cart , Towed Anti Explosion Rail Transfer Cart 24



Our service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
