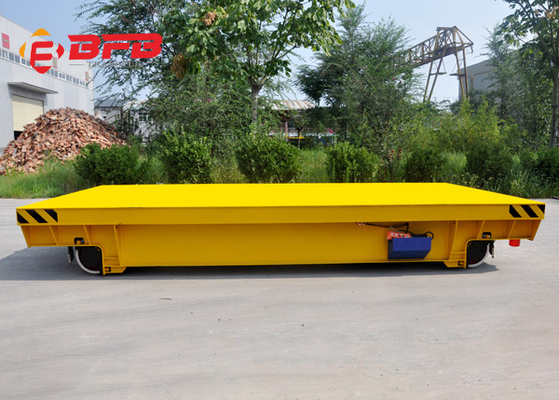

Battery Driven 20T Rail Mold Transfer Cart 25m/Min Remote Control
| Place of Origin | Xinxiang, Henan |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-25T |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Peoduct Name | Industrial Mold Trolley Manufacturer | Capacity(t) | 25t |
|---|---|---|---|
| Table Size(mm) | 4000*2200*600 | Running Speed(m/min) | 0-25 |
| Running Distance(m) | 100 | Rail Type | P24 |
| Wheel Pressure(KN) | 77.7 | Rail Gauge(mm) | 1435 |
| Wheel Diameter(mm) | 300 | Wheel Quantity(pcs) | 4 |
| Weight(t) | 5.9 | Certificate | CE, SGS, ISO9001, SASO |
| Package | The Whole Mold Trolley Is Packed By High Quality Plastic Cloth | Color | Red, Yellow, Blue |
| Opration Type | Hand Pendant+ Remote Control | ||
| High Light | 20T Rail Mold Transfer Cart,Battery Driven Rail Mold Transfer Cart,Mold Transfer Cart 25m/Min |
||
Product Description
Battery Driven Foundry Industrial Mold Trolley 20 Ton On Rails
There are a variety of drive and control systems for the industrial mold trolley. drive systems include gear reducer, axle drives and individual wheel drives. a typical unit is equipped with a hand held pendant control which is used by the operator to control the transfer car to move backward, forward along the track. with an average travel speed of 30m/min(stepless speed regulation), an operator can walk along with the car to operate the unit. the pendant can be provided to be mounted on any of the 4 corners of the vehicle to allow the operator to walk along the leading end of the vehicle during operation. and our transfer cars are also available with semi-automatic and fully automatic control systems to meet the needs of specialized applications.
It is battery power,with advantages of flexiability, it can run on S shape rail, arc-shape rail and stright rails.
Structure of the foundry plant mold transfer trolley

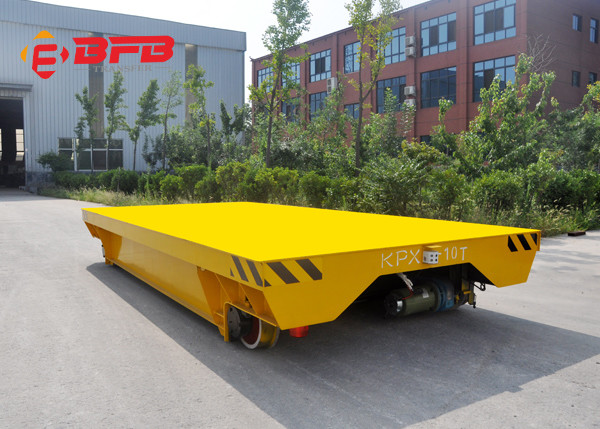

Photo show of foundry plant mold transfer trolley
Complete absence of pollution (with total flexibility of use, both indoors and outdoors)
1. almost complete absence of maintenance
2. increase in vehicle's useful life periods (the replacement of an electric motor is very simple and cheap)
3. huge decrease in noise pollution
4. possibility of automation.
The parameter of foundry plant mold trolley
Model | KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
BEFANBY Company
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
You can copy the following options and click here to select your specific requirement for the transfer trolley to send us. And then the proper solution and price will be sent to you.
1. The load capacity of the transfer cart is ( ) ton.
2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).
3. The voltage is ( ) V, ( ) HZ, 3 phase.
4. The running time is ( ) hours per day.
5. The running distance is ( ) m per time.
6. The transfer cart runs on the rails or common floor?
7. Whether exist turning?
8. Whether has other special requirement?
