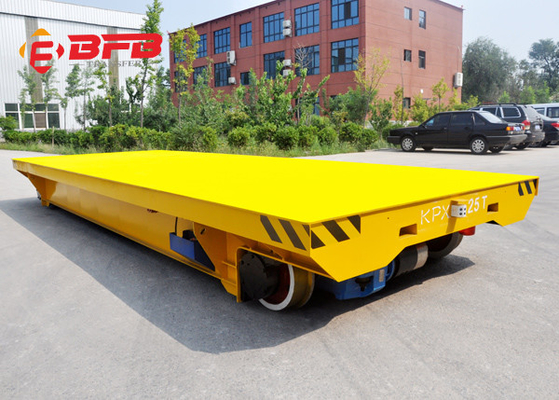

Mold Transfer Battery Powered Railroad Cart 25t Hand Pendant Opration
| Place of Origin | Xinxiang, Henan |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-25T |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Peoduct Name | Mold Transfer Battery Powered Railroad Cart | Capacity(t) | 25t |
|---|---|---|---|
| Table Size(mm) | 4000*2200*600 | Running Speed(m/min) | 0-25 |
| Running Distance(m) | 100 | Rail Type | P24 |
| Wheel Pressure(KN) | 77.7 | Rail Gauge(mm) | 1435 |
| Wheel Diameter(mm) | 300 | Wheel Quantity(pcs) | 4 |
| Weight(t) | 5.9 | Certificate | CE, SGS, ISO9001, SASO |
| Package | The Whole Mold Trolley Is Packed By High Quality Plastic Cloth | Color | Red, Yellow, Blue |
| Opration Type | Hand Pendant+ Remote Control | ||
| High Light | Battery Powered Railroad Cart,Mold Transfer Railroad Cart,Transfer Railroad Cart 25t |
||
Product Description
Mold Transfer Battery Powered Railroad Cart For Assembly Line Inside
Mold transfer railroad cart is powered by battery. the battery is installed in the transfer cart and we also equip intelligent charger for it. the mold transfer battery powered railroad cart is controlled to go forward, backward, turn left, turn right, adjust speed through plc and speed controller.
Trackless transfer cart has different movement track, so the price do. the small table size trackless flat transfer car generally use the lithium battery and cos will be higer than ordinary battery.
the battery operated transport cart can increase night light, collision strip for safety operation.
Structure of the assembly line mold transfer cart
Photo show of foundry plant mold transfer trolley
Complete absence of pollution (with total flexibility of use, both indoors and outdoors)
1. almost complete absence of maintenance
2. increase in vehicle's useful life periods (the replacement of an electric motor is very simple and cheap)
3. huge decrease in noise pollution
4. possibility of automation.
The parameter of foundry plant mold cart
Model | KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
BEFANBY Company
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
You can copy the following options and click here to select your specific requirement for the transfer trolley to send us. And then the proper solution and price will be sent to you.
1. The load capacity of the transfer cart is ( ) ton.
2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).
3. The voltage is ( ) V, ( ) HZ, 3 phase.
4. The running time is ( ) hours per day.
5. The running distance is ( ) m per time.
6. The transfer cart runs on the rails or common floor?
7. Whether exist turning?
8. Whether has other special requirement?
