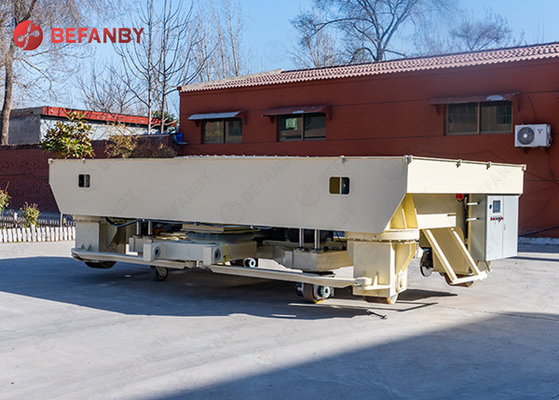

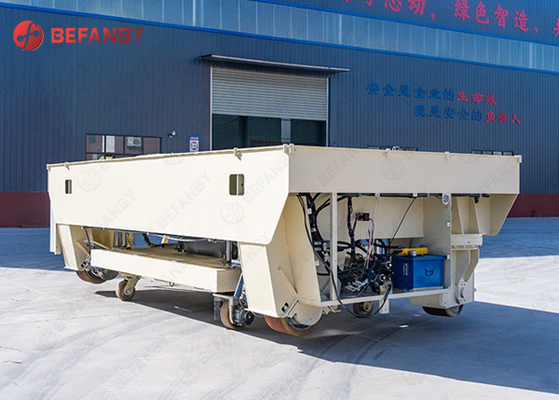

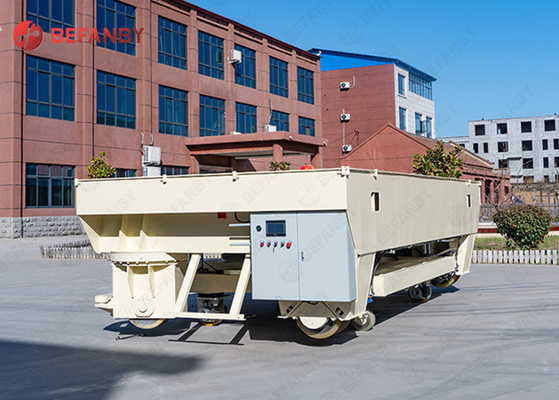

Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn

  • Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn
  • Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn
  • Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn
  • Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn
  • Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn
  • Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number BWT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The flatbed trailer will be packed by the tarp, the parts will be packed y the high quality wooden case.
Delivery Time 15-20 working days for usual delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas Warranty 2 Year
Application Material Transfer, Workshop ,production Line Capacity 1-500 Ton For Steel Coil Trailer
Power Supply No Powered/munual Model Product Name Manual Model Flatbed Trailer For Concrete Floor Capacity 10Tn
Material Q235 Operation Type Winch, Forklift, Manual Towing
Color Yellow, Gray, Red Or As Your Needs
Highlight

manual material transfer carts

,

flatbed material transfer carts

,

capacity 10tn material transfer trolley
Leave a Message
Product Description

Manual Model Flatbed Trailer For Concrete Floor Capacity 10Tn



BEFANBY manufactured the flatbed trailers can be pushed by manpower or towed by other vehicles,such as winch, forklift or tractor, A manual model flatbed trailer is a kind of truck that does not require a motor to provide driving force and has no power itself. This kind of manual model flatbed trailer can be divided into track use and ground use according to whether the rails is laid.
Because this kind of flatbed trailer itself has no driving force, in order to make the flat car run, it is necessary to provide traction for the flat car. The size of the traction force here needs to be determined according to the weight and working conditions of the cargo.

It is powered by forklift, so a drawbar is needed. There are two kinds of drawbar type, one is fixed length drawbar, the

other is adjustable drawbar. The length can be customized as per customer's demand. The turning radius is designed as per car dimension.



Advantages of no power transfer trailer

  • Box girder structure, not easy to deform
  • Low cost
  • Anti-explosion and anti- high temperature
  • Cab be towed or push by manual
  • Durable
  • Environmental

​Manual Model Flatbed Trailer For Concrete Floor Capacity 10Tn



Main of no power transfer cart


The main parts of the forklift transfer cart includes cart frame, towed hook, cast wheel, control box, etc.



Manual Model Flatbed Trailer For Concrete Floor Capacity 10Tn


The parameter of non power flatbed trailer

Model KP-2t KP-20t KP-50t KP-100t KP-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100



Packing& Delivery of no power transfer trailer

manual model flatbed trailer



Company Introduce



Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.



flatbed trailer 10tn

You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.



1. The load capacity of the transfer cart is ( ) ton.



2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).



3. The transfer cart runs on the rails or common floor?



4. Whether exist turning?



5. Whether has other special requirement?
