40t Battery Driven Molten Steel Transfer Car For Ladle
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-40T |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
| Supply Ability | 60 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feature | Steady, Security, Anti-high Temperature | Rated Load | 40t |
|---|---|---|---|
| Capacity | Form 1 Ton To 1500ton | Car Size | Custom Car Length And Width |
| Electrical Equipment | Siemens, Schneider, Nord | Exported Countries | Mexico, Australia, Singapore |
| Rail Gauge(mm) | 1435 | Wheel Material | Forged Wheel Or Casting Wheel |
| Wheel Quantity | 4 Pcs | Rail Type | P38 |
| High Light | Industrial Transfer Car 40t,Battery Powered Ladle Transfer Car,Molten Steel Ladle Car |
||
Product Description

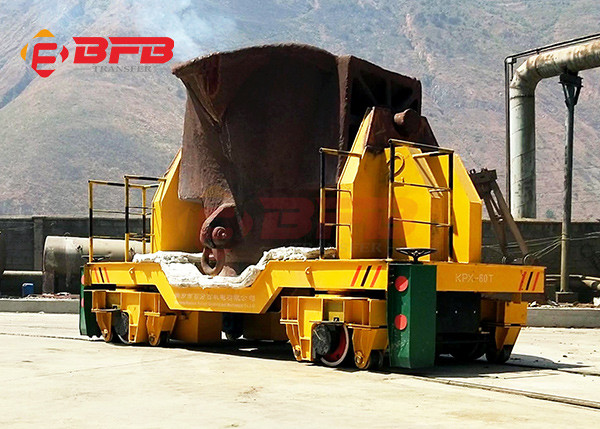

40t Battery Driven Molten Steel Transfer Car For Steel Ladle
Working principle of molten steel transfer car
The molten steel transfer car is powered by battery. The battery supply power to the DC motor, which is installed inside of car body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive ladle transfer car working.
Application of molten steel ladle transfer car
The molten steel ladle transfer car is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.
In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design. This kind of ladle car can run on both straight rails and S-shaped rails.

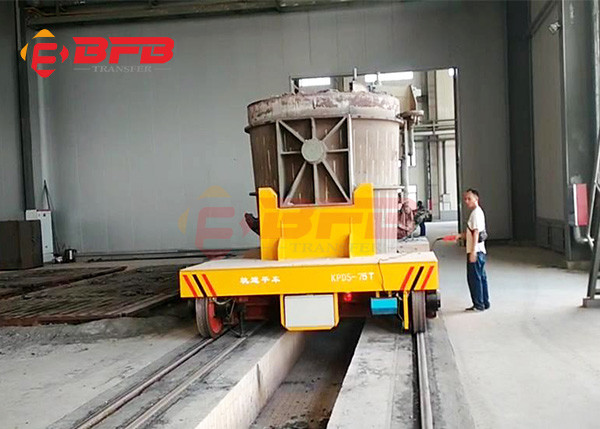

The applying site in one of our client’s factory, they use the scrap bucket carts to transfer steel scraps ladle from production line to warehouse. In order to improve the working efficiency, the use two sets ladle cars for alternative using.

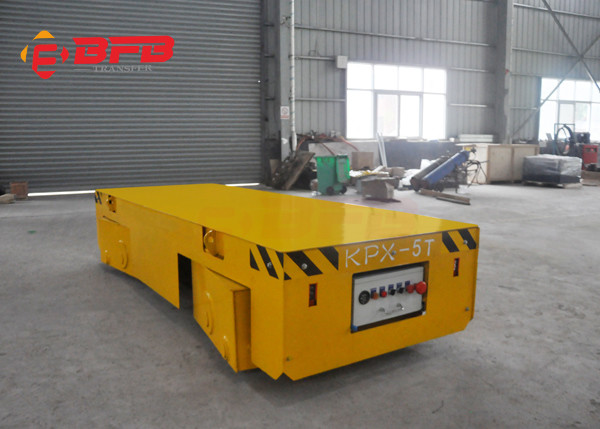

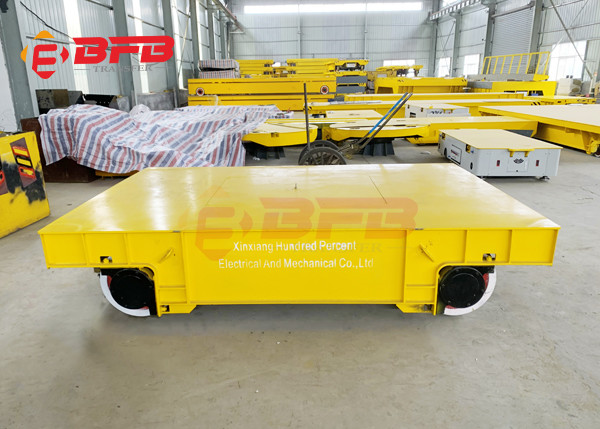

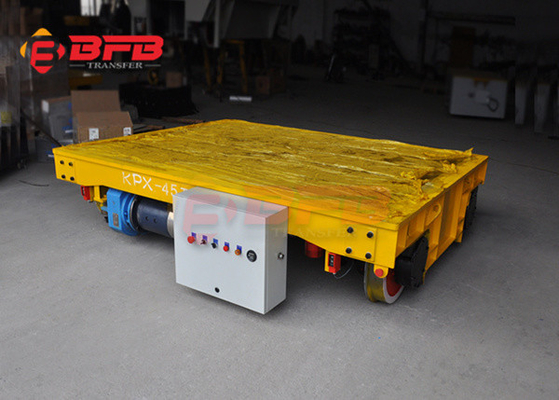

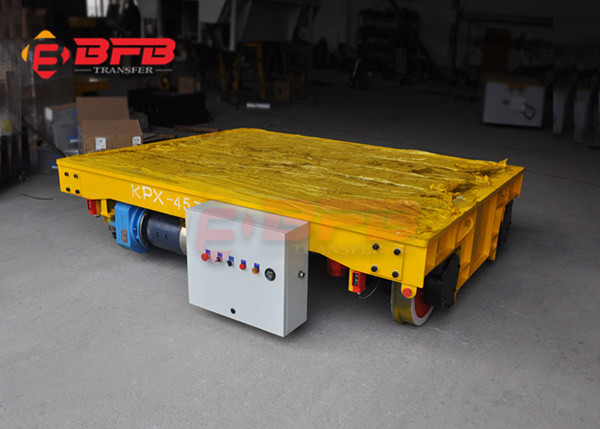

Several kinds of of ladle transfer car
Technical parameters of ladle transfer car
|
Model
|
KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Delivery of ladle transfer car
Customer visit in our factory
Customer feedback
Quality control of steel ladle car
