Injection Molding Transfer Cart Industrial Electric Trolley Platform With Track

Place of Origin Xinxiang, Henan
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-25T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certificate CE, SGS, ISO9001, SASO Package The Whole Mold Trolley Is Packed By High Quality Plastic Cloth
Color Red, Yellow, Blue Opration Type Hand Pendant+ Remote Control
Warranty 2 Years Advantage Rich Experience For Material Handling Solution
High Light

Injection Molding Transfer Cart

,

Electric Trolley Platform With Track

,

Industrial Electric Injection Molding Transfer Cart

Leave a Message
Product Description

Injection Molding Industrial Electric Trolley Platform With Track

Injection molding industrial electric trolley platform is powered by battery. the battery is installed inside the transfer trolley and we also choose intelligent charger for the battery. the electric trolley platform is controlled to go forward, backward, turn left, turn right, adjust speed through plc and speed controller.



BEFANBY can customized different type transfer trolley on demand, for example,the battery operated transfer trolley can increase night light, collision strip for safety operation.




Injection Molding Industrial Electric Trolley Platform With Track



Structure of the Industrial electric trolley platform


electric transfer trolley platform Molding transfer trolley Inside

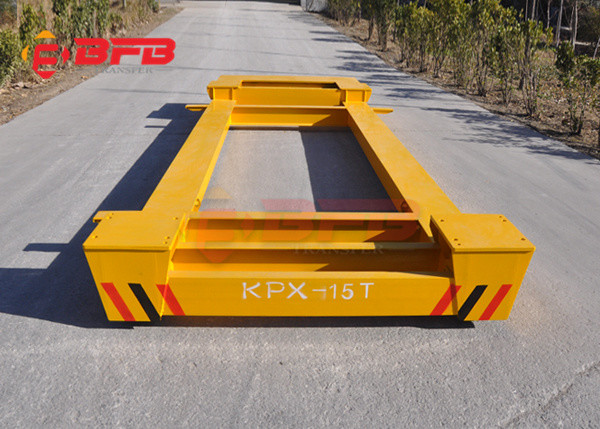

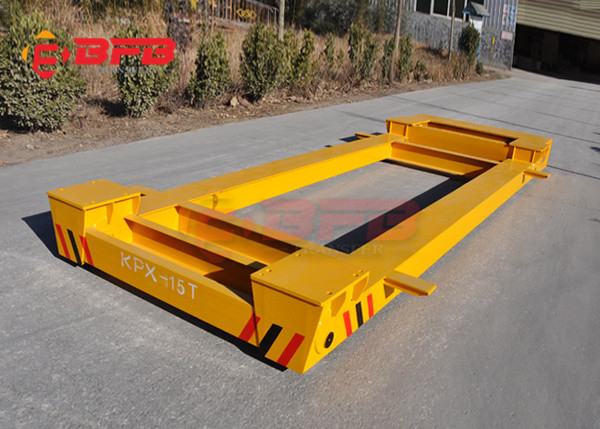

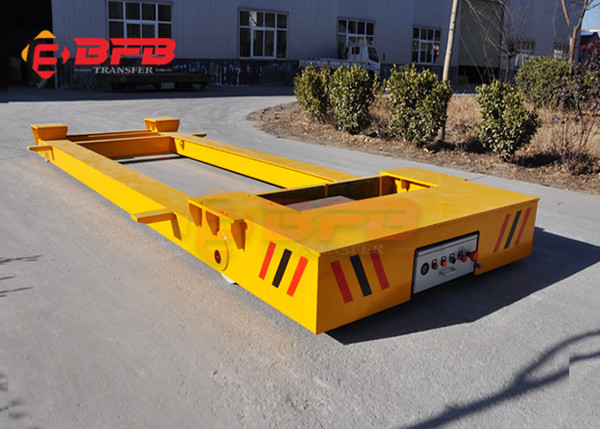

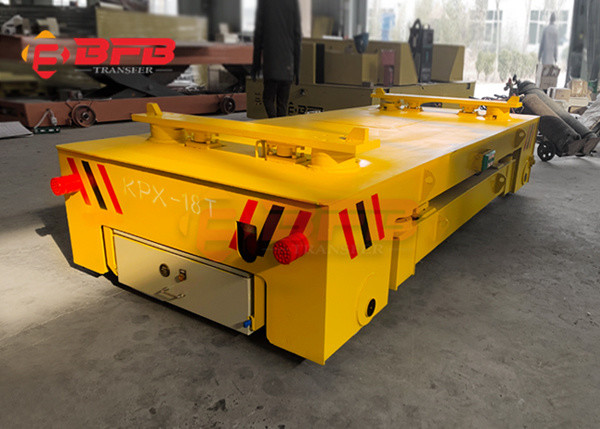

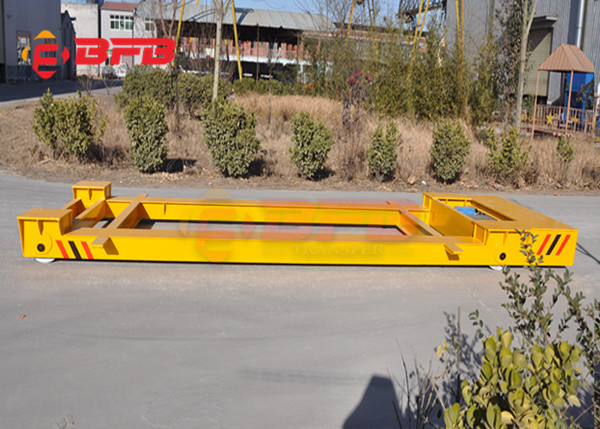

Photo show of industrial electric trolley

industrial electric track trolleyelectric transfer trolley platformelectric industrial transfer trolley Mold Transfer cart

Mold Transport trolley Mold Transporter


 mold transfer platformelectric mold cart




The parameter of industrial electric trolley platform

Model
KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

BEFANBY Company


Injection Molding Transfer Cart Industrial Electric Trolley Platform With Track 11


Mold handling trolley











































































You can copy the following options and click here to select your specific requirement for the transfer trolley to send us. And then the proper solution and price will be sent to you.





1. The load capacity of the transfer cart is ( ) ton.

2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).

3. The voltage is ( ) V, ( ) HZ, 3 phase.

4. The running time is ( ) hours per day.

5. The running distance is ( ) m per time.

6. The transfer cart runs on the rails or common floor?

7. Whether exist turning?

8. Whether has other special requirement?
