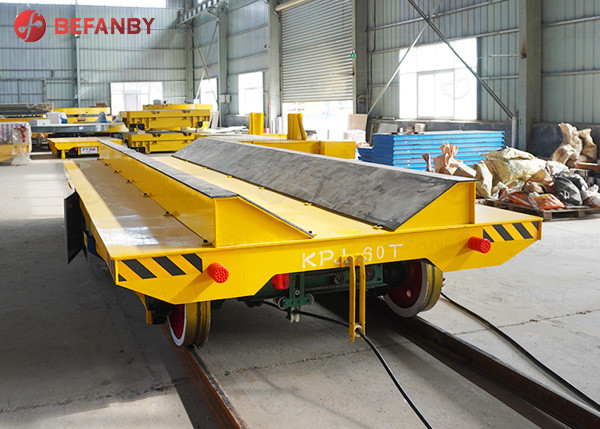

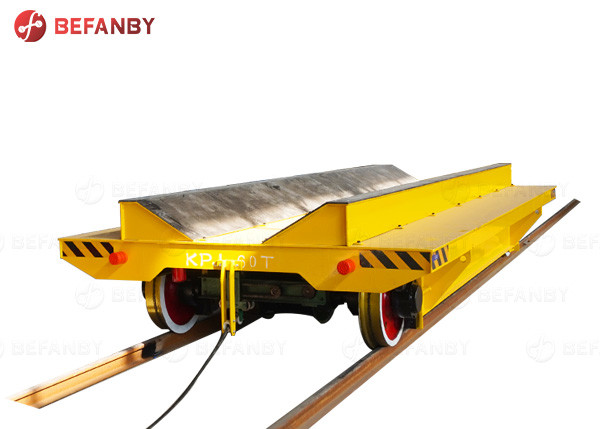

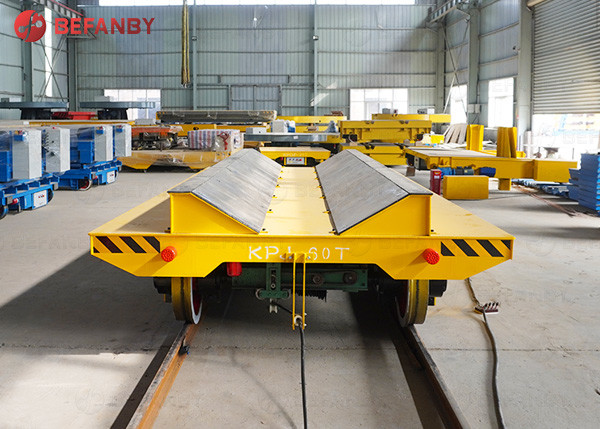

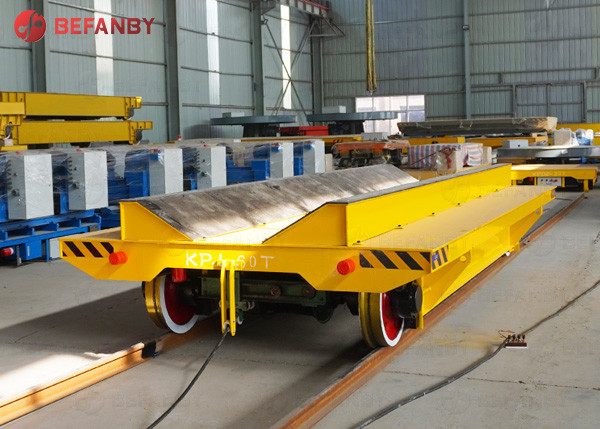

Metal Industry V-Block Coil Transfer Trolley

  • Metal Industry V-Block Coil Transfer Trolley
  • Metal Industry V-Block Coil Transfer Trolley
  • Metal Industry V-Block Coil Transfer Trolley
  • Metal Industry V-Block Coil Transfer Trolley
  • Metal Industry V-Block Coil Transfer Trolley
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPJ
Minimum Order Quantity 1 set/sets
Price $3000-$6000/per set
Packaging Details The steerable coil car will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Customized Warranty 24 Months
Load Capacity 1-1500T Running Speed 0-20m/min
Running Distance Unlimited Power Supply Cable Reel Power
High Light

V-Block Coil Transfer Trolley

,

Metal Industry Transfer Trolley

,

Cable Reel Coil Transfer Cart
Leave a Message
Product Description

Metal Industry V-Block Coil Transfer Trolley

Product Description

Coil transport vehicle is a kind of transport equipment specially used for the transport of coil, such as steel coil, aluminum coil, copper coil, so the surface of the transport car is not flat structure, but installed V-frame. The V-frame allows the coil to sit firmly on the transfer trolley and not roll easily. In addition, the design of the V-shaped frame on the table is also very clever, can be stretched to both sides, so as to flexibly adapt to the size of the coil.



Electric flat car is often used as a good helper for material handling in factories, warehouses, logistics warehousing, aerospace and other places. This metal industry V-block coil transfer trolley runs on the track. According to the needs of customers, the flat trailer can also be made into a turning car to realize the operation on the arc track.

metal industry V-groove deck coil transfer carMetal Industry V-Block Coil Transfer Trolley 1

Product Details

foundry factory V-Block coil 55t handing trolley

Workshop Using electric Coil Car 15ton

Product Parameter

Model KPJ-2T KPJ-5T KPJ-10T KPJ-16T KPJ-20T KPJ-25T KPJ-30T KPJ-40T KPJ-50T KPJ-63T KPJ-80T KPJ-100T KPX-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Application

 forging factory V-Block Coil transport cart

Product Feature

Metal Industry electric V-Block Coil Transfer trailer

Delivery

electrical Industry V-deck frame Transfer carrier

Company Profile

55t steel coil transfer trolley on track

35t aluminium coil handing electric mover on railway

heavy load copper coil transport coil cart

rails mounted workshop coil trolley



workshop coil cart
