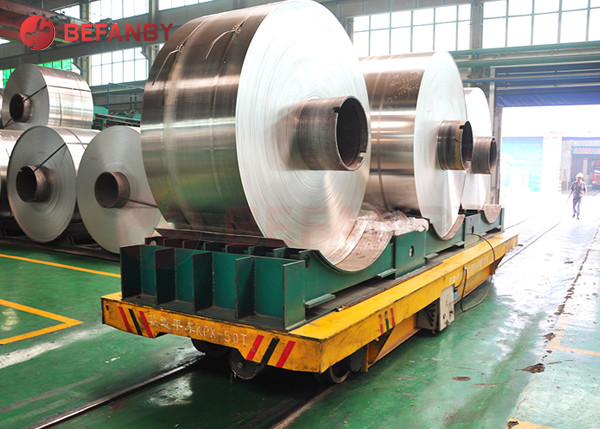

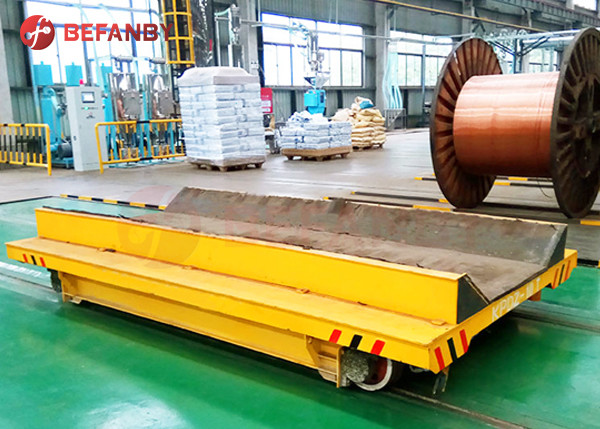

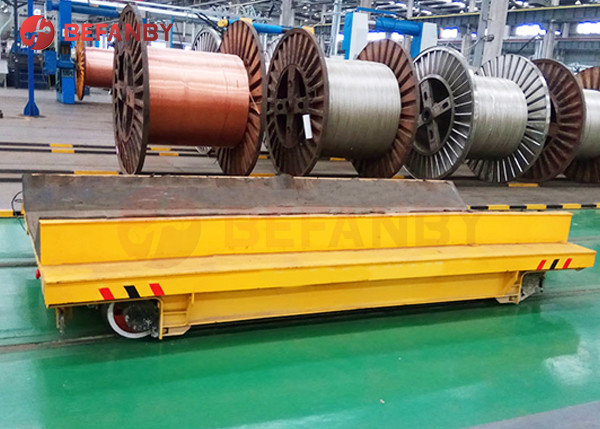

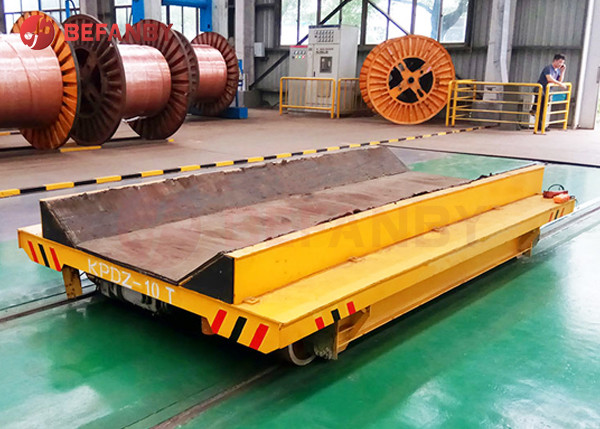

Heavy Load Electric 50t Coil Transfer Bogie

  • Heavy Load Electric 50t Coil Transfer Bogie
  • Heavy Load Electric 50t Coil Transfer Bogie
  • Heavy Load Electric 50t Coil Transfer Bogie
  • Heavy Load Electric 50t Coil Transfer Bogie
  • Heavy Load Electric 50t Coil Transfer Bogie
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPJ coil
Minimum Order Quantity 1 set/sets
Price $3000-$6000/per set
Packaging Details The coil transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 600 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Heavy Load Electric 50t Coil Transfer Bogie Color Customized
Warranty 12 Months Load Capacity 50t
Running Speed 0-20m/min Running Distance Unlimited
Power Supply Cable Reel Power
High Light

50t Coil Transfer Trolley

,

Coil Transfer Bogie 20m/min

,

Electric Coil Transfer Cart
Leave a Message
Product Description

Heavy Load Electric 50t Coil Transfer Bogie

Product Description Of Coil Transfer Cart

The heavy load electric coil transfer bogie is a revolutionary machine that is designed to make transportation of coils smoother, faster, and more efficient. This bogie is designed to carry large coils of up to 50 tonnes in weight, making it a perfect tool for industries that require heavy-duty transportation.



The electric motor used in this bogie ensures that it runs silently, with no fumes or emissions. It can be operated remotely, which makes it easy to use and more productive than traditional transportation methods. The bogie is also equipped with a reliable brake system that ensures maximum safety during operation.



One of the biggest advantages of the heavy load electric coil transfer bogie is that it significantly reduces the manual handling required when moving heavy loads. This reduces the risk of accidents and injuries that could occur during transportation. It also improves the efficiency of the transportation process, allowing for faster and more effective deliveries.



Heavy Load Electric 50t Coil Transfer Bogie

Heavy Load Electric 50t Coil Transfer carts

Product Details Of Coil Transfer Cart

Heavy Load Electric 50t Coil Transfer trolley

Heavy Load Electric 50t Coil Transfer carts

Product Parameter Of Coil Transfer Cart

Model KPJ-2T KPJ-5T KPJ-10T KPJ-16T KPJ-20T KPJ-25T KPJ-30T KPJ-40T KPJ-50T KPJ-63T KPJ-80T KPJ-100T KPX-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100



Application

 Heavy Load Electric 50t Coil Transfer trolley

Product Feature

Heavy Load Electric 50t Coil transport Bogie

After-Sales Service



Heavy Load Electric 50t Coil handing Bogie

Delivery

Heavy Load Electrical 50t Coil Transfer Bogie

Company Profile

Heavy Load Electric 50t Coil Transfer Bogie

Heavy Load Electric 50t Coil Transfer Bogie

Heavy Load Electric 50t Coil Transfer trolley

Heavy duty Electric 50t Coil Transfer Bogie
