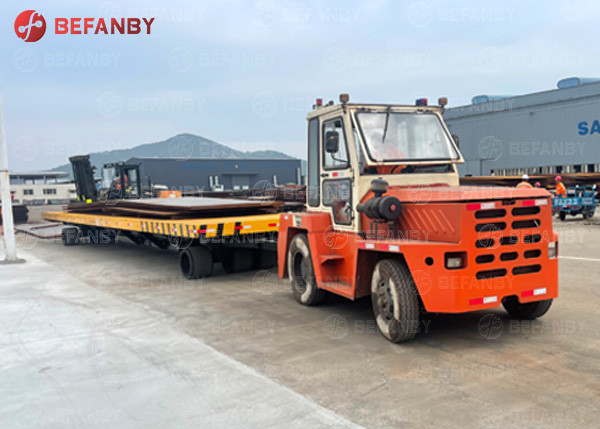

45 Ton No Power Trackless Transfer Trailer

  • 45 Ton No Power Trackless Transfer Trailer
  • 45 Ton No Power Trackless Transfer Trailer
  • 45 Ton No Power Trackless Transfer Trailer
  • 45 Ton No Power Trackless Transfer Trailer
  • 45 Ton No Power Trackless Transfer Trailer
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE, SGS, ISO9001
Model Number BWT
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The transfer trailer will be packed by the tarp, the parts will be packed y the high quality wooden case.
Delivery Time 15-20 working days for usual delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Engineers Available To Service Machinery Overseas Warranty 1 Year
Application Material Transfer, Workshop ,production Line Capacity 1-500 Ton For Steel Coil Transportation Trailer
Power Supply No Powered/munual Product Name 45 Ton No Power Trackless Transfer Trailer
Material Q235 Operation Type Winch, Forklift, Manual Towing
Color Yellow, Gray, Red Or As Your Needs
High Light

Trackless Material Transfer Trailer

,

Trackless Transfer Trailer

,

Material Transfer Carts 45 Ton
Leave a Message
Product Description

45 Ton No Power Trackless Transfer Trailer



No Powered trailers do not rely on any power. You need to pay attention to the following points when using them:
1. Choose the right hook. Make sure the hitch is installed securely to avoid it falling during towing.
2. Communication and cooperation between front and rear vehicles. Establish a reasonable driving route, avoid complex and congested road sections, and agree on communication signals for starting, slowing down, turning, going up and down slopes, etc.
3. Control the safe distance. Keep the distance between vehicles at least 10 meters and control the vehicle speed below 20 km/h to prevent accidents.
4. Pay attention to the status of the vehicle. The towed vehicle should remain activated so that steering and brake assist can be used at any time.
5. Coping with curves on slopes. On a downhill section, if the slope is long, you can untie the rope and let the vehicle slide down; if the slope is short, you can hang the rope and go downhill, but the vehicle in front should not brake easily. At curves, you should turn on your lights in advance and pass in a large circle to avoid sudden braking.


Precautions when parking. When parking, the towed vehicle should be stopped first and then the towing vehicle to prevent the towed vehicle from stopping early and causing the towing rope to break.


Its design meets practical application needs and can meet the requirements of various working scenarios. We believe that the no powered trailer will be a powerful assistant in your work, bringing convenience and efficiency to your work.





45 Ton No Power Trackless Transfer Trailer55 Ton No Power Trackless Transfer Trailer



The parameter of non power steel coil trailer

Model KP-2t KP-20t KP-50t KP-100t KP-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100





Processing of no power transfer cart china factory


45 Tonne No Power Trackless Transfer Trailer


Packing& Delivery of no power transfer trailer

45 Ton No Power Trackless Transport Trailer



Company Introduce



Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.



45 T No Power Trackless Handling Trailer

You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.



1. The load capacity of the transfer cart is ( ) ton.



2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).



3. The transfer cart runs on the rails or common floor?



4. Whether exist turning?



5. Whether has other special requirement?
