Stable Cast Steel Wheel Hollow In The Middle Ladle Transfer Cart
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPC |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The transfer cart will be packed by the tarp, the parts will be packed y the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
| Materials | Steel |
Product Description

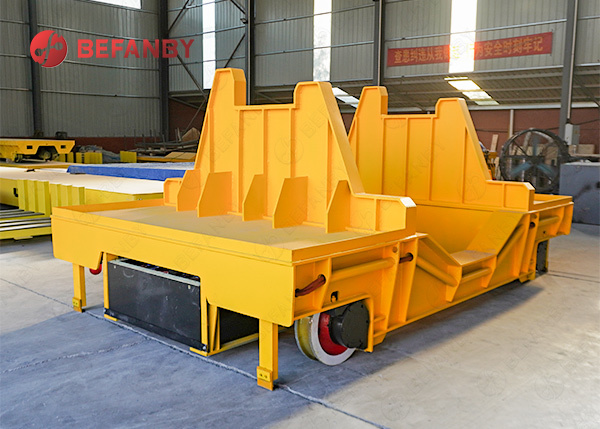

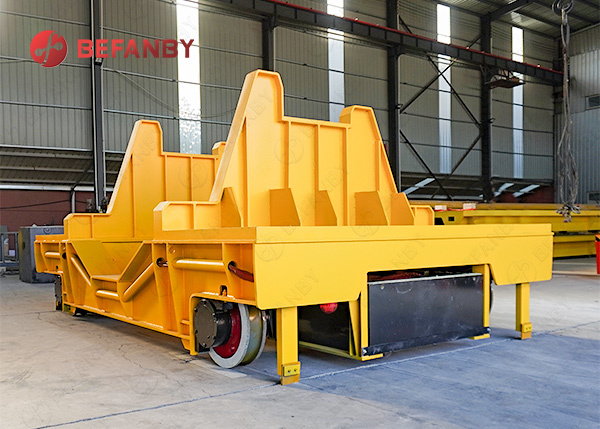

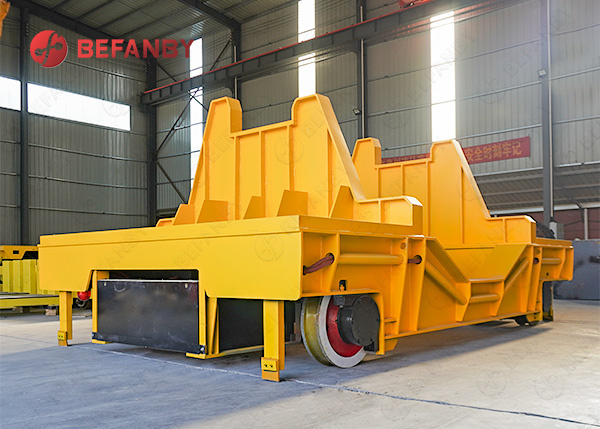

Stable Cast Steel Wheel Hollow In The Middle Ladle Transfer Cart
Product Description
The Ladle Rail Handler is a heavy-duty transport vehicle designed specifically for the metallurgical, steel, and foundry industries. It is primarily used to transport ladles containing molten steel or iron in high-temperature environments. The vehicle operates on rails, ensuring smooth travel and precise docking, enabling efficient and safe transfers within complex production cycles.

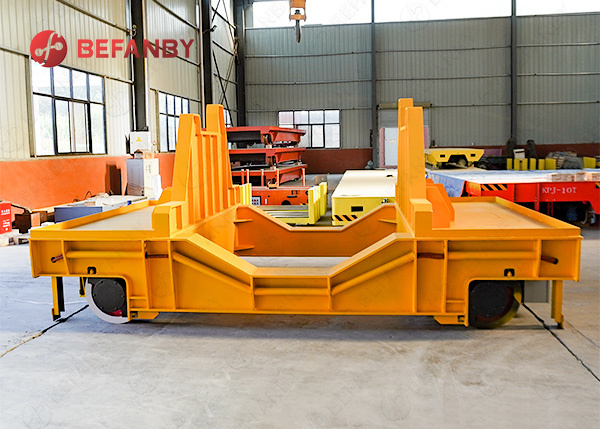

This vehicle is custom-built for each customer. Its most distinctive feature is the hollow, grooved center section of the platform, customizable to suit the ladle's size. The groove precisely fits the ladle's bottom, ensuring stability and stability during transport, significantly enhancing safety and ease of operation. The vehicle body utilizes a welded frame structure of high-temperature-resistant steel plates and is paved with refractory bricks. The surface is treated with heat-resistant and anti-oxidation treatments to ensure stable operation in harsh environments such as high temperatures and dust.
Company Profile
Support Customized
Product Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Product Feature
The power supply method can be selected based on site requirements, including busbar power, low-voltage rail power, or battery power, to accommodate various production line layouts. The dual-drive system utilizes a high-power DC motor or AC variable-frequency motor, delivering powerful torque and smooth operation, enabling continuous operation and precise docking of heavy-loaded ladles.
In addition, the rail-mounted ladle transporter can be equipped with optional features such as infrared temperature alarm, explosion-proof system, emergency stop button, and remote control, further enhancing operational safety and automation.
Shipping
Related Products
FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
