Customized For Metal Plant Battery Operated Material Transfer Cart
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Color | Customized |
|---|---|---|---|
| Application | Industrial Field,motorized Slab Transfer | Running Speed | 0-20m/min |
| Running Distance | 60m, Customized On Demand | Warranty | 24 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-100 Ton Payload |
| Power Supply | Battery Powered | Operation Type | Hand Pendant + Remote Control |
| Advantage | More Than 19 Years' Experience For Motorized Slab Transfer | Option Power | Cable Power Supply, Trolly Line, Low Voltage Rail, Diesel, Etc. |
Product Description
Customized For Metal Plant Battery Operated Material Transfer Cart
Battery-powered rail transfer carts are a type of material transport equipment powered by a DC motor and powered by batteries. They are commonly used for short- and medium-distance material transfer within production workshops. Requiring no external cables or busbars, they operate flexibly, safely, and reliably.
Customized Manufacturer
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer
cart rail power supply trolley line motorized rail cart cable power supply

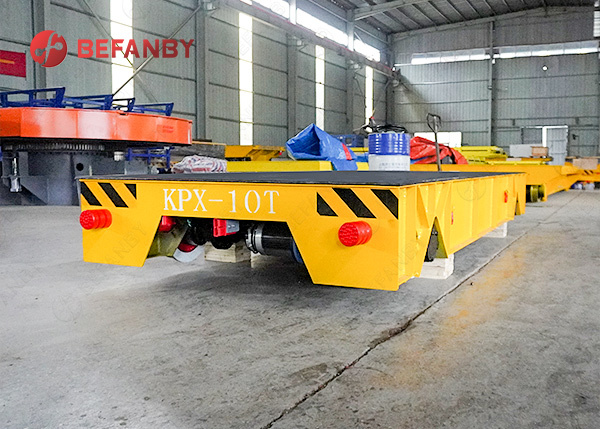

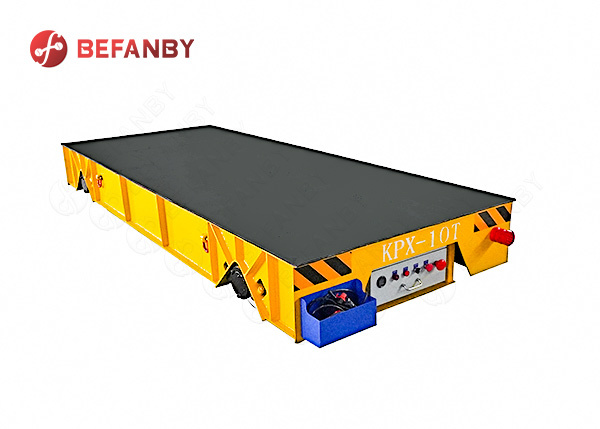

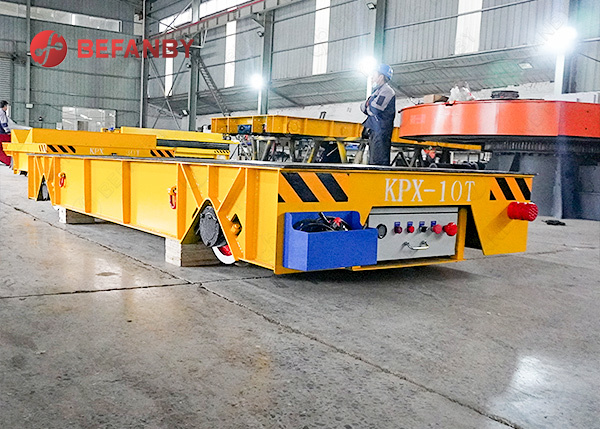

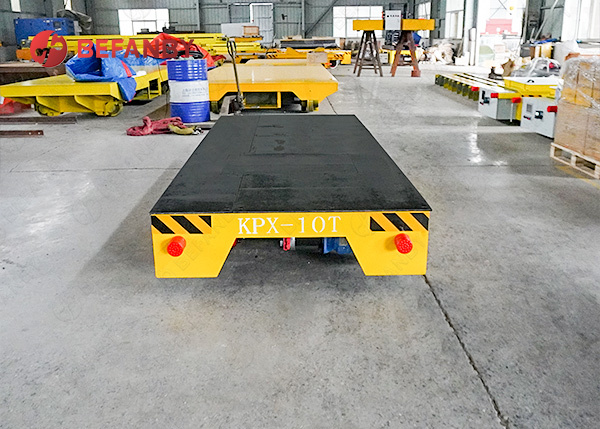

Detailed Images
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Our Company
Advantages
Independent Power Supply: Powered by high-performance, maintenance-free batteries, the machine offers unlimited operating distance and can be customized to suit specific operating conditions.
Safety and Reliability: Equipped with an audible and visual alarm, an emergency stop button, and anti-collision devices, it ensures the safety of both personnel and equipment.
Sturdy Structure: The vehicle body utilizes a high-quality box-girder structure, offering strong load-bearing capacity and resisting deformation over extended use.
Easy Maintenance: Driven by a DC motor, it offers high starting torque and smooth starting, and supports variable frequency speed control. It is convenient, simple, and easy to maintain.
Customization: Optional features such as hydraulic lift, turntable docking, coil grooves, guardrails, and automatic charging can be configured to meet specific operating requirements.
