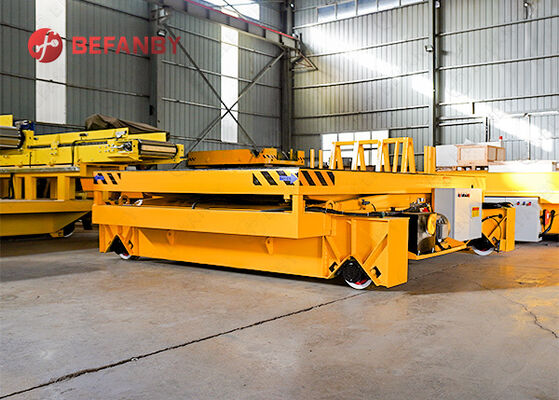

Steel Box Beam Structure Rail Transfer Cart With Lift Device
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPT |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 20-30 days as usual delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | Warranty | 24 Months |
|---|---|---|---|
| Load Capacity | Customized | Power Supply | Battery Operated |
| Port | Qingdao/Tianjin/Shanghai | Application | Heavy Industry,outdoor,construction |
| Materials | Steel |
Product Description

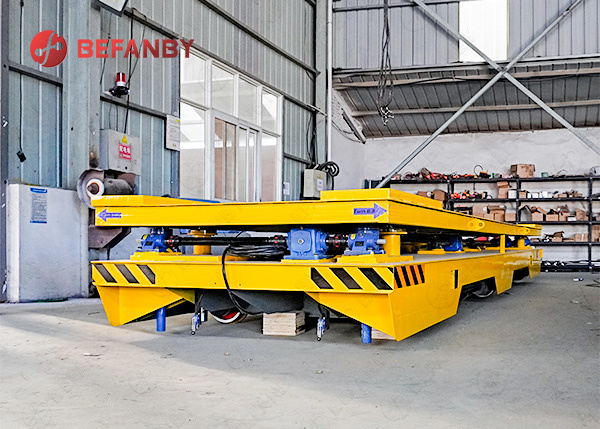

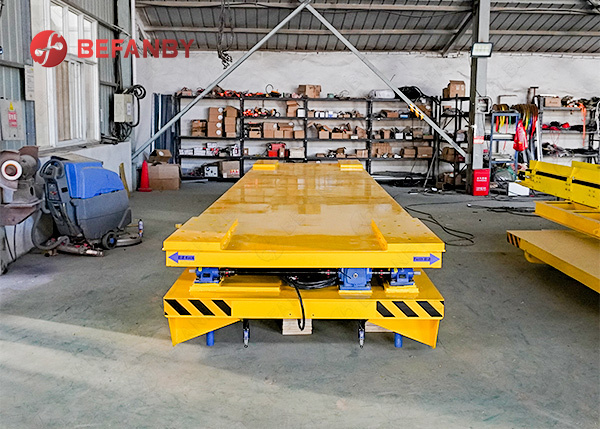

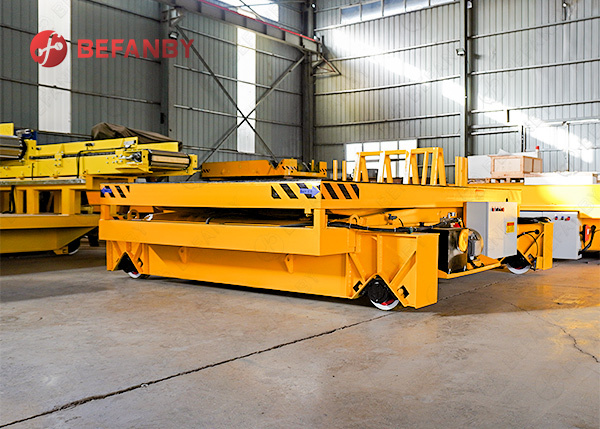

Steel Box Beam Structure Rail Transfer Cart With Lift Device
The scissor lift rail transport vehicle is an innovative handling equipment that combines a rail guidance system and a scissor lifting structure. This equipment is specifically designed for the efficient and smooth transport of heavy goods along fixed rail routes, while providing precise vertical lifting capabilities.
Products Details
Our Company
Customized Support
Product Specifications
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Load (t) | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Length L (mm) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Table Width W (mm) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Table Height H (mm) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base (mm) | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power (kW) | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 |
| Battery Capacity (Ah) | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage (V) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Max Wheel Load (kN) | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight (t) | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
Key Features
Rail Guiding System: Runs along a preset track, ensuring precise and highly repeatable transport paths.
Scissor Lift Mechanism: Employs a mechanical scissor structure for smooth lifting and adjustable height. High load-bearing capacity.
Intelligent Control System: Equipped with an advanced control panel and sensors for precise positioning. Also allows for fixed-point stopping.
Modular Design: Track layout and load capacity can be customized to suit different sites and needs.
Safety Protection System: Multiple safety devices including fall arrestors, overload protection, and emergency braking.
Production Process
Related Products
Frequently Asked Questions
How can I operate the transfer cart?
Please don't worry, dear friend. The English user manual and parts manual will be delivered with your items together.
How to ensure your product quality?
We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.
Whether you can offer customized transfer car?
Yes, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Whether there is professional technician assist our installation?
Yes. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance so that we can arrange technicians.
