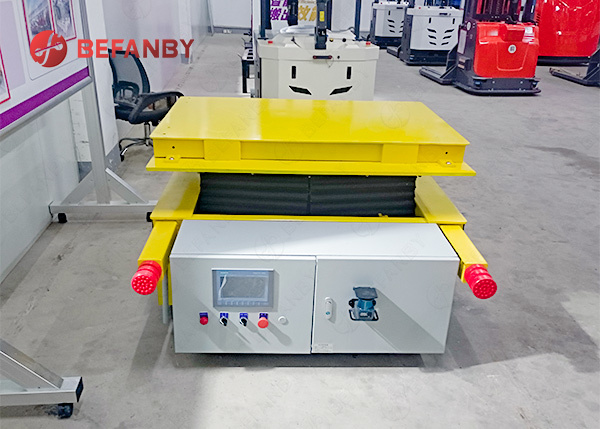

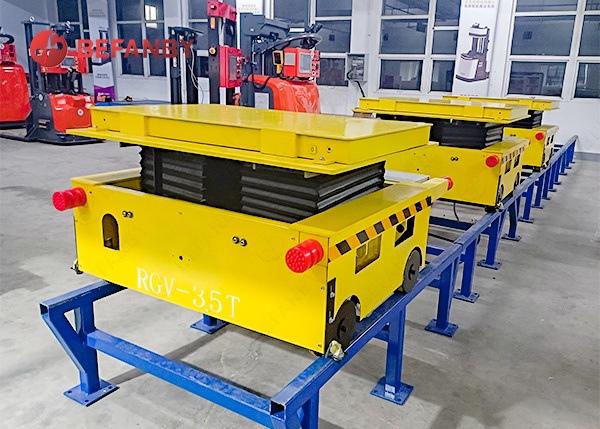

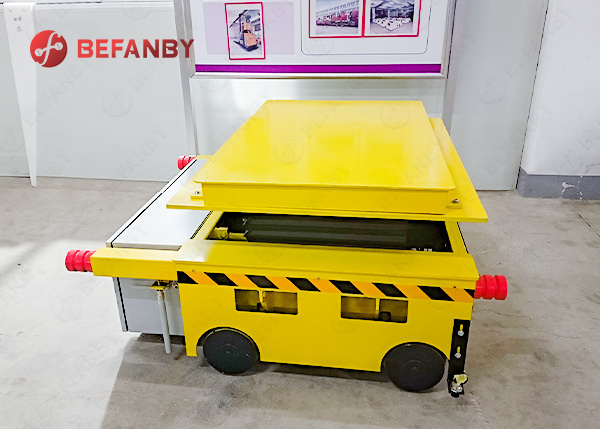

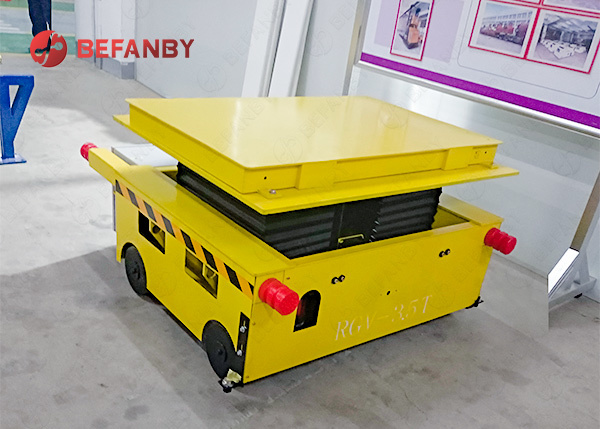

3 Ton Capacity Battery RGV Transfer Cart With Lift Control

  • 3 Ton Capacity Battery RGV Transfer Cart With Lift Control
  • 3 Ton Capacity Battery RGV Transfer Cart With Lift Control
  • 3 Ton Capacity Battery RGV Transfer Cart With Lift Control
  • 3 Ton Capacity Battery RGV Transfer Cart With Lift Control
  • 3 Ton Capacity Battery RGV Transfer Cart With Lift Control
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number RGV
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The motorized slab trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 20-30 days as usual delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Customized Warranty 24 Months
Load Capacity Customized Power Supply Battery Operated
Port Qingdao/Tianjin/Shanghai Application Heavy Industry,outdoor,construction
Materials Steel
Leave a Message
Product Description
Box Girder Structure Material Transfer Cart - Battery Operated
The RGV intelligent rail transfer cart is a high-efficiency material handling device designed for the logistics and transportation needs of semi-automated factories. This model integrates intelligent operation, rail guidance, and lifting functions, enabling stable operation on predetermined tracks and precise material transport between different workstations. Equipped with a lifting device, the vehicle offers stable and controllable lifting height, allowing for flexible docking with production lines, equipment, or tooling of varying heights, effectively reducing manual intervention and improving overall operational efficiency.

3 Ton Capacity Battery RGV Transfer Cart With Lift Control 0


Product Details

3 Ton Capacity Battery RGV Transfer Cart With Lift Control 1


Our Manufacturing Facility
3 Ton Capacity Battery RGV Transfer Cart With Lift Control 2 3 Ton Capacity Battery RGV Transfer Cart With Lift Control 3 3 Ton Capacity Battery RGV Transfer Cart With Lift Control 4
Customized Engineering Solutions
3 Ton Capacity Battery RGV Transfer Cart With Lift Control 5
Product Specifications
Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load (t) 10 16 25 30 40 50 63 80 100 150
Table Length L (mm) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Table Width W (mm) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Table Height H (mm) 500 550 600 600 650 650 700 800 900 1200
Wheel Base (mm) 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge (mm) 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 25 20 20 20 20 20 20 20 20 18
Motor Power (kW) 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity (Ah) 160 180 250 250 300 330 400 400 440 600
Battery Voltage (V) 48 48 48 48 48 48 48 72 72 72
Max Wheel Load (kN) 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight (t) 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Key Features
  • Load Capacity: With a load capacity of 30 tons, it can transport heavy materials and equipment, meeting various heavy-duty transportation needs.
  • Operating Range: Powered by a battery, its operating range is unlimited, allowing for efficient transportation across large work areas.
  • Operation Modes: Offers multiple operation modes, which can be customized as needed, such as remote control, manual operation, or automated operation.
3 Ton Capacity Battery RGV Transfer Cart With Lift Control 6
Production Process
3 Ton Capacity Battery RGV Transfer Cart With Lift Control 7
Related Products
3 Ton Capacity Battery RGV Transfer Cart With Lift Control 8
Frequently Asked Questions
How can I operate the transfer cart?
The English user manual and parts manual will be delivered with your items together for easy operation.
How to ensure your product quality?
We provide rail installation drawings, rail foundation construction drawings, and free technical guidance. If necessary, our installation engineer will visit your factory to guide the installation process.
Whether you can offer customized transfer cart?
Yes, we are a manufacturer with our own engineering team. They can create customized designs according to your requirements. Please inform us of your specific needs.
Whether there is professional technician assist our installation?
Yes. We have a professional installation team with international experience. If you require technical assistance at your factory, please inform us in advance for proper arrangement.
