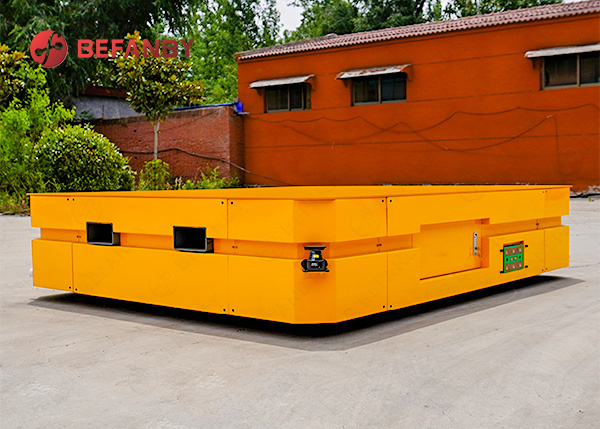

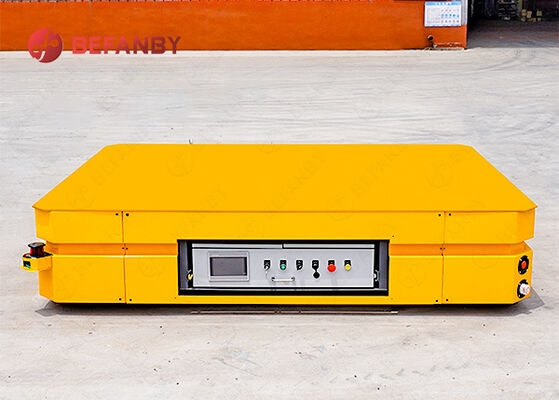

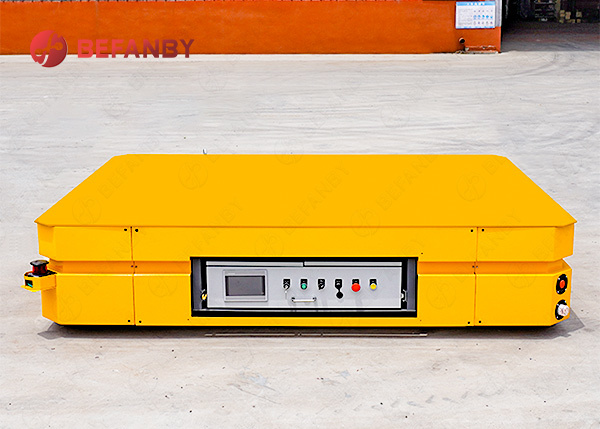

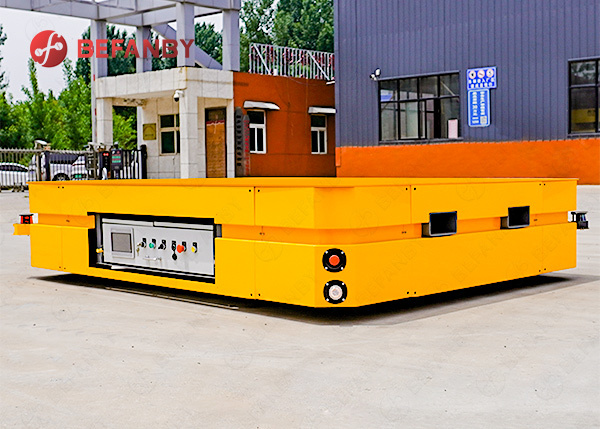

20T AGV Steerable Transfer Cart With Intelligent Navigation
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | AGV |
| Document | AGV.pdf |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The electric transfer cart factory will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1000 set/sets per year |
Product Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Load Capacity | 20T | Power Supply | Battrey Power |
| Operation Type | Hand Pendent + Remote Control | Wheel Material | Insulated |
Product Description
20T AGV Steerable Transfer Cart With Intelligent Navigation
1. Product Introduce
AGV (Automated Guided Vehicle) intelligent rail transporters are material handling equipment integrating automatic navigation, intelligent control, and heavy-duty transportation. They are primarily used in factory workshops, production lines, warehouse areas, steel handling, and material transfer in large manufacturing enterprises. AGVs automatically travel along preset paths, enabling point-to-point material transport, automatic start/stop, and precise docking, reducing manual labor intensity and improving overall handling efficiency.
In terms of structural design, AGVs utilize a high-strength frame structure and can be customized based on actual load capacity, material size, and track layout. Platform size, load capacity, and vehicle height can all be customized to customer needs, allowing for the transport of various materials such as steel, molds, machinery, and large workpieces. For special materials, V-shaped supports, tooling fixtures, roller conveyors, and hydraulic lifting devices can be added to the platform.
2. Technique Parameter
| Model | AGV-2t | AGV-5t | AGV-10t | AGV-16t | AGV-20t | AGV-25t | AGV-30t | AGV-40t | AGV-50t | AGV-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
3.Navigation Methods
To suit different factory environments, ground conditions, and transportation routes, AGV intelligent rail transsfer carts can be configured with different navigation methods. Multiple solutions, such as magnetic strip navigation, laser navigation, and QR code navigation, can be selected based on actual on-site conditions, enabling the tranfer cart to operate stably along the planned route.
For production scenarios with fixed routes and clearly defined transportation tasks, magnetic strip navigation can be used; for scenarios with complex routes and requiring flexible scheduling, laser navigation can be selected.
4.Safety Design
During automated operation, AGVs can be configured with various safety protection functions according to the actual usage environment, such as obstacle detection, automatic deceleration, emergency stop buttons, and anti-collision buffers. When an obstacle or pedestrian is detected in the operating area, the AGV can stop automatically.
Secondly, the system speed can be controlled or adjusted according to actual conditions to reduce safety risks during transportation. Furthermore, the AGV's operating speed, starting method, and stopping position can all be adjusted based on the on-site working conditions.
5.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
