Capacity 10T Rail RGV Transfer Cart With Lift Device
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | AGV |
| Document | AGV.pdf |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The electric transfer cart factory will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1000 set/sets per year |
Product Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Load Capacity | 20T | Power Supply | Battrey Power |
| Operation Type | Hand Pendent + Remote Control | Wheel Material | Insulated |
Product Description

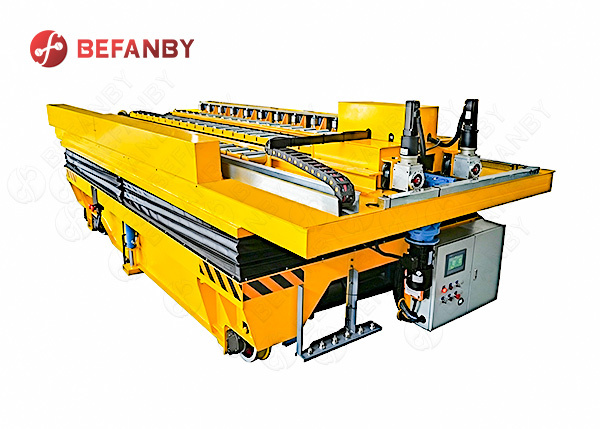

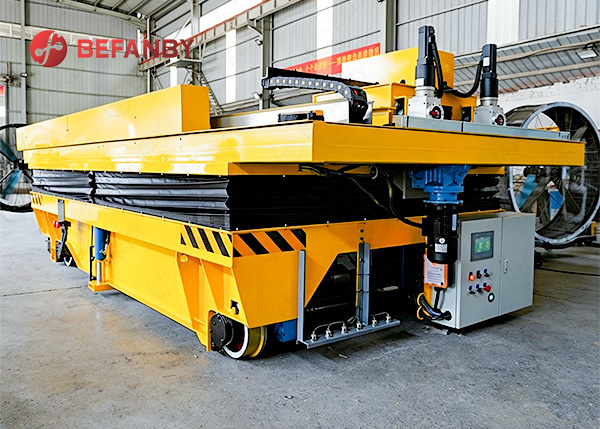

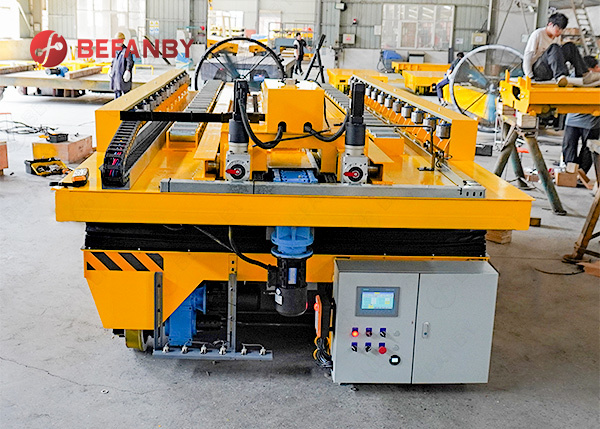

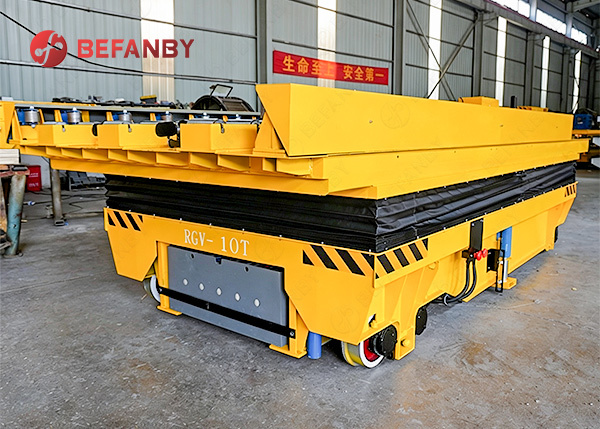

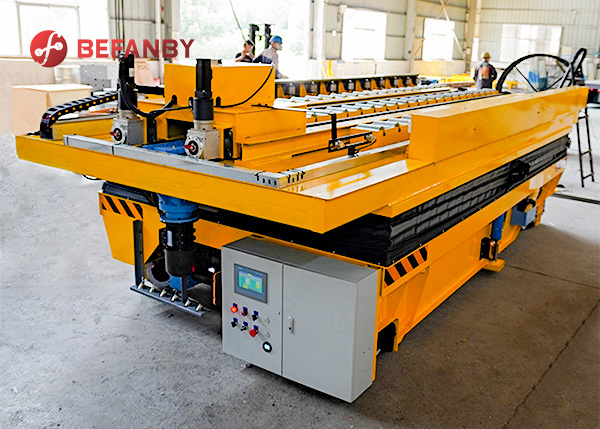

Capacity 10T Rail RGV Transfer Cart With Lift Device
1. Product Introduce
The RGV intelligent rail transfer cart with lifting function is an automated material handling equipment that combines rail transport, intelligent control, and lifting capabilities. The cart runs along a pre-set factory track and can be controlled by a programmed control system to achieve point start/stop, automatic positioning, and multi-station transfer. The lifting mechanism allows for flexible adjustment of the platform height, facilitating integration with production lines, conveyors, and other handling equipment of varying heights. It is suitable for various industrial scenarios such as steel, machinery manufacturing, mold making, warehousing, and production lines.
2. Technique Parameter
| Model | AGV-2t | AGV-5t | AGV-10t | AGV-16t | AGV-20t | AGV-25t | AGV-30t | AGV-40t | AGV-50t | AGV-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
3.Lifting Function
Compared to ordinary material handling vehicles, this RGV (Automated Guided Vehicle) adds a lifting function, allowing adjustment of the platform height according to on-site process requirements. When materials need to be transferred between equipment at different heights, the lifting device can be used to adjust the height, reducing the inconvenience of manual handling and transporting materials at varying heights. Multiple lifting methods are available, such as hydraulic lifting and scissor lifting, to achieve height adjustment, thereby reducing manual handling and auxiliary equipment intervention and improving material handling efficiency.
4.Support customized
Because the size, weight, and shape of materials transported by different companies vary significantly, RGV intelligent rail transfer carts are mostly custom-designed and non-standard. The load capacity, cart dimensions, rail specifications, lifting height, platform structure, operating speed, control method, power supply, and safety devices of the transfer cart can all be matched to the actual working conditions.
For large steel structures, molds, coils, and other materials of various shapes, specialized tooling and positioning devices can be added to keep the materials stable during transportation and reduce the risk of shaking, shifting, or slipping.
5.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
