Transfer Cart Roller Conveyor System For Tabletop Design
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BWP |
| Document | KPDZ.pdf |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The electric transfer cart factory will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1000 set/sets per year |
Product Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Load Capacity | 60T | Power Supply | Battery Powered |
| Operation Type | Hand Pendent + Remote Control | Wheel Material | Insulated |
Product Description

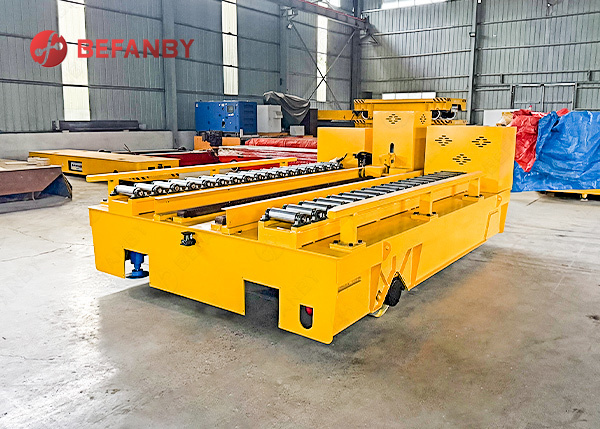

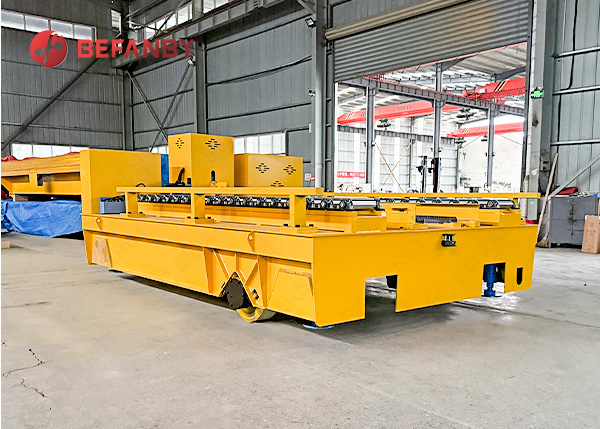

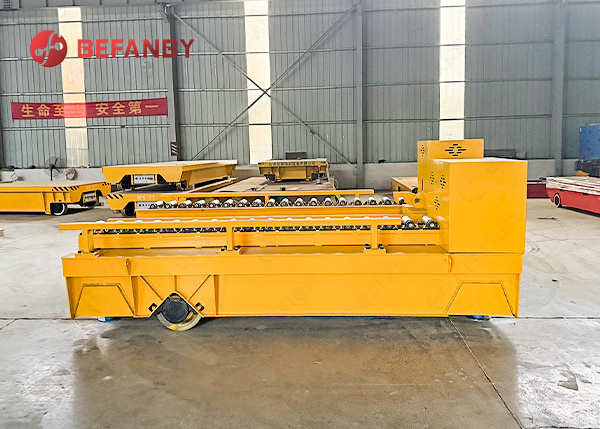

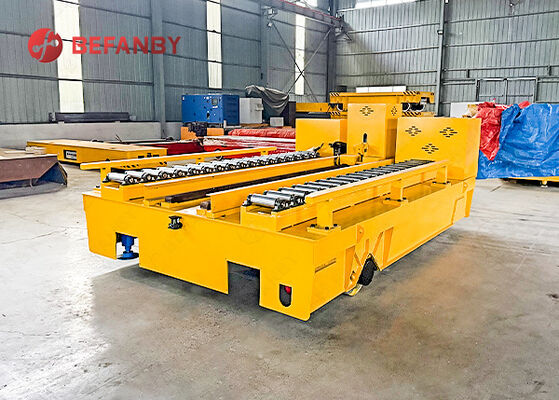

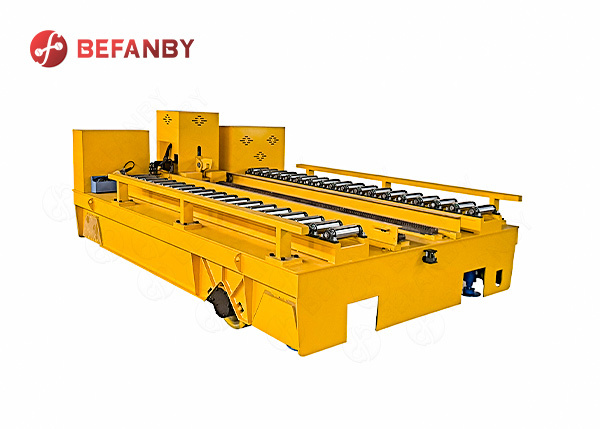

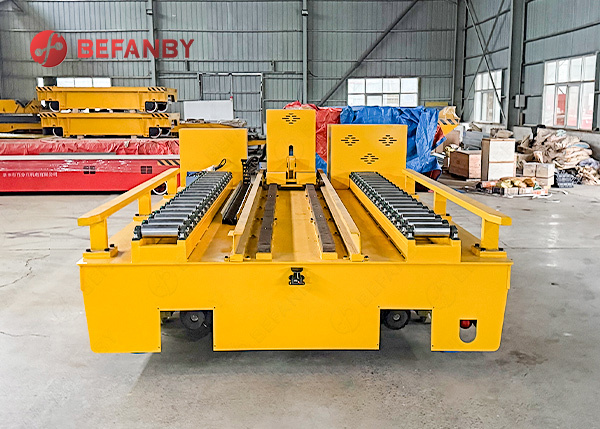

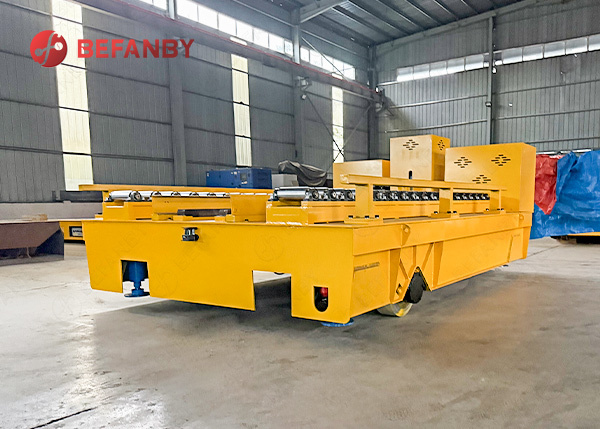

Transfer Cart Roller Conveyor System For Tabletop Design
1. Product Introduce
This trackless transfer cart features a roller conveyor deck design, adding rolling transport capabilities to the standard transfer cart configuration. This enables the cart not only to handle horizontal material transport but also to interface seamlessly with production lines, conveyor systems, and automated workstations. Roller spacing, conveyor width, and overall deck dimensions can be customized based on the size, weight, and shape of the materials being transported.
2. Technique Parameter
| Model | BWP-2t | BWP-5t | BWP-10t | BWP-16t | BWP-20t | BWP-25t | BWP-30t | BWP-40t | BWP-50t | BWP-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
3.Introduction to Advantages
- Automated Material Transfer
The roller conveyor system utilizes the continuous rotation of rollers to move materials, enabling rapid transfer between the transport vehicle and fixed production lines. Compared to traditional flat platforms, the roller design minimizes manual handling and intermediate loading/unloading steps, allowing for direct transfer to the production line and enhancing overall operational efficiency.
- Seamless Production Line Integration
This transfer cart can be customized to match the height and layout of the customer's on-site production lines, allowing its roller deck to interface smoothly with conveyors, processing equipment, and assembly stations of varying heights. Upon reaching the designated location, the cart utilizes a positioning system to ensure precise stopping, facilitating the continuous transfer of materials between different production zones.
- Robust Structural Design
The cart features a structure fabricated from high-strength steel plate, with the frame design tailored to specific load capacities and operating conditions to provide stable support for the roller system and the transported loads. Its trackless operation ensures smooth movement and high load-bearing capacity, making it suitable for transporting a wide range of materials, including steel products, molds, workpieces, and machinery.
4.Flexible customization
Given the variations in production lines and materials across different clients, the deck of the trackless transfer cart can be custom-engineered—including specifications for deck dimensions, number and spacing of rollers, conveying direction, load capacity, and docking height. Additionally, features such as limit switches, positioning systems, detection sensors, and control units can be integrated to meet automated production requirements and ensure seamless incorporation into existing production systems.
5.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
