6 Ton Steerable Trackless Transfer Cart For Material Handling
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BWP |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The electric transfer cart factory will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1000 set/sets per year |
Product Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Load Capacity | 6T | Power Supply | Battery Powered |
| Operation Type | Hand Pendent + Remote Control | Wheel Material | Insulated |
Product Description

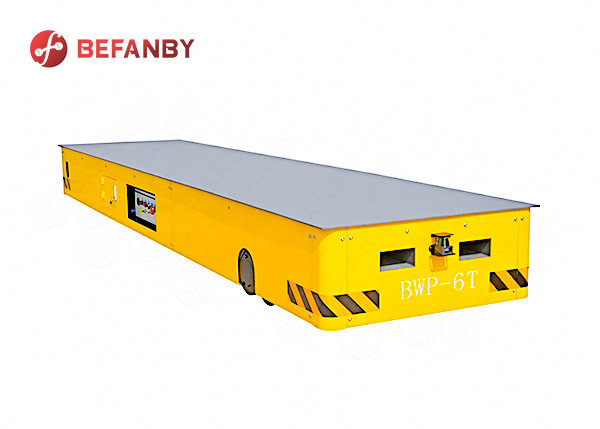

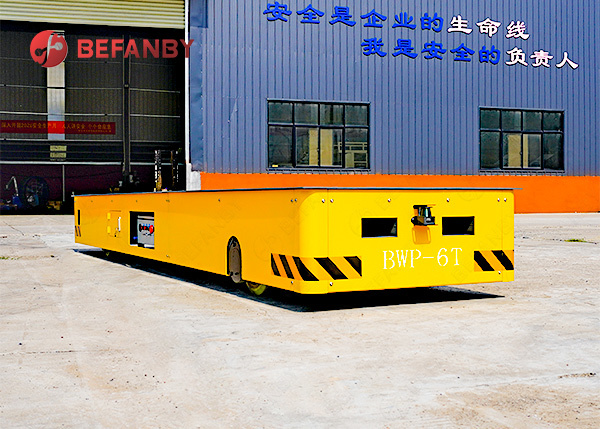

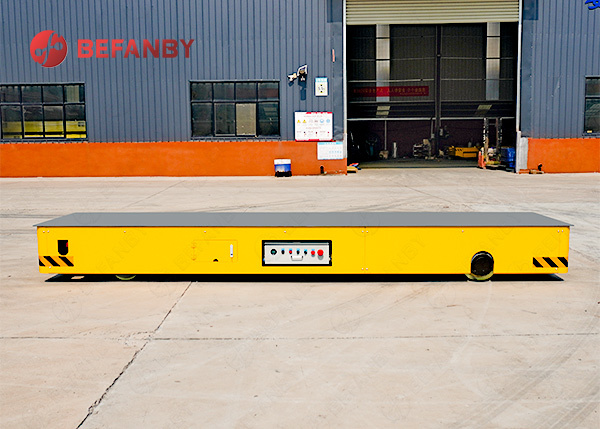

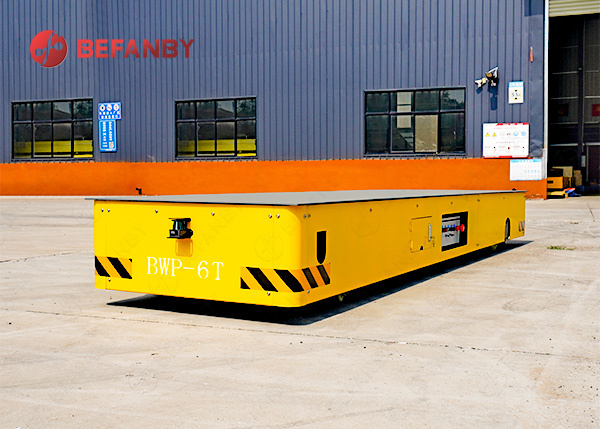

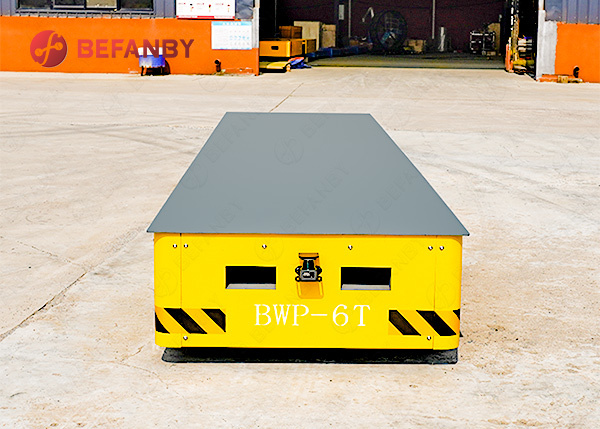

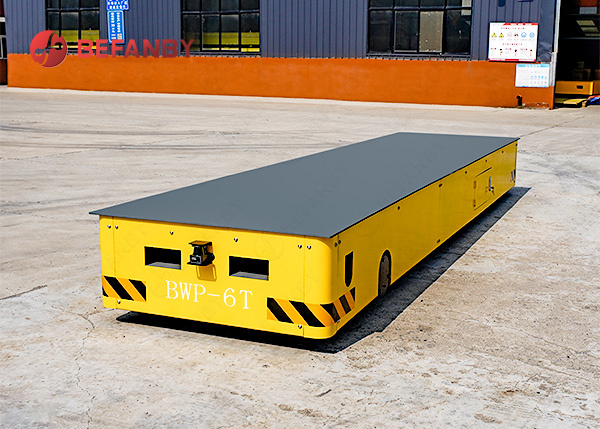

6 Ton Steerable Trackless Transfer Cart For Material Handling
1. Product Introduce
This trackless material handling vehicle is a heavy-duty material handling device customized for a New Zealand customer, with a rated load capacity of 6 tons. Unlike traditional rail-mounted material handling vehicles, this vehicle does not require track laying and can operate flexibly directly on paved factory roads, both indoors and outdoors, providing a more convenient solution for material transfer between different work areas.
2. Technique Parameter
| Model | BWP-2t | BWP-5t | BWP-10t | BWP-16t | BWP-20t | BWP-25t | BWP-30t | BWP-40t | BWP-50t | BWP-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
3.Platform Design
- Based on the characteristics of the customer's on-site material transportation and operating space, a narrow and long tabletop design was adopted for this project. Compared to conventional tabletop transport vehicles, the narrow and long body is more suitable for transporting long workpieces, steel, profiles, equipment parts, and other materials, while also making better use of limited factory aisle space.
- The tabletop dimensions, vehicle length, and load-bearing structure can all be customized according to the customer's actual material dimensions, ensuring that the transport vehicle not only meets the 6-ton heavy-duty transportation requirements but also better matches the customer's existing production layout and transportation routes.
4.Flexible customization
To meet the load-bearing requirement of 6 tons of material, the transport vehicle adopts a high-strength frame structure design, with comprehensive matching of the vehicle's load-bearing capacity, wheel layout, and drive system. During transportation, the frame maintains excellent overall stability, reducing the risk of swaying and shifting during the movement of heavy materials.
Furthermore, protective structures, limiting devices, and material fixing brackets can be configured according to different working conditions, providing more stable transportation conditions for workpieces of different shapes and sizes.
5.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
