Professional 5 Ton Electrical Transfer Carts On Rail
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Document | KPX.pdf |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The electric transfer cart factory will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1000 set/sets per year |
Product Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Load Capacity | 5T | Power Supply | Battrey Power |
| Operation Type | Hand Pendent + Remote Control | Wheel Material | Insulated |
Product Description

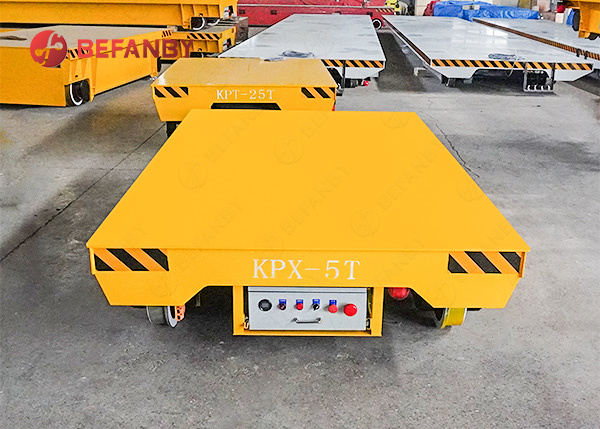

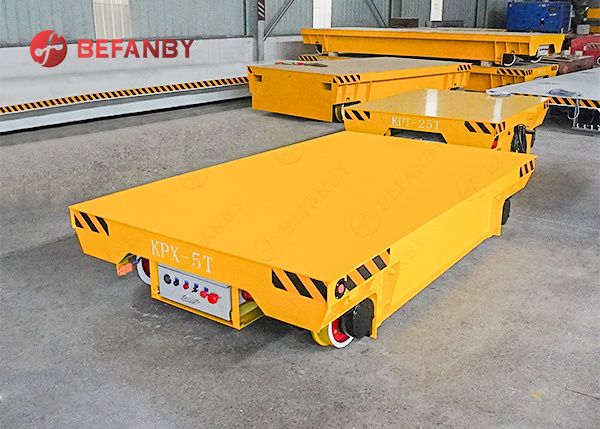

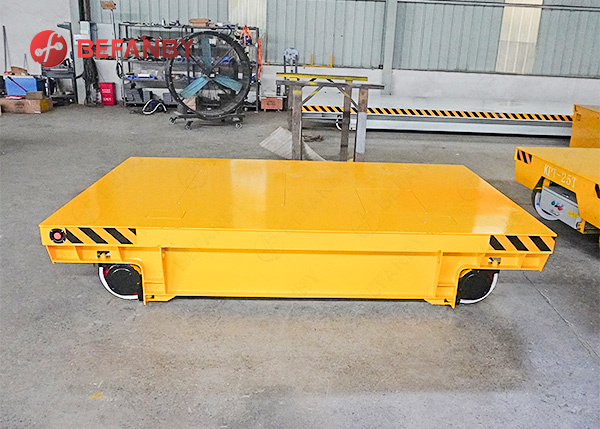

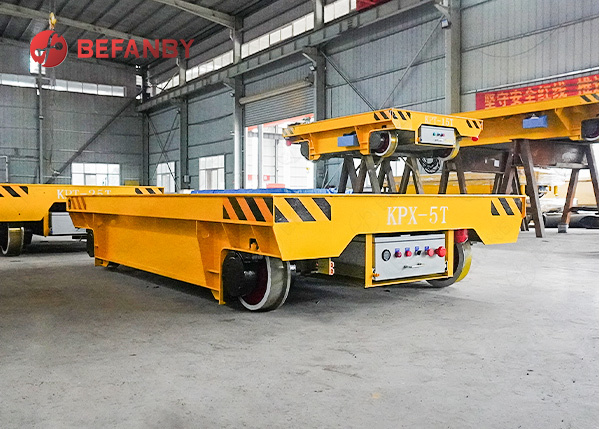

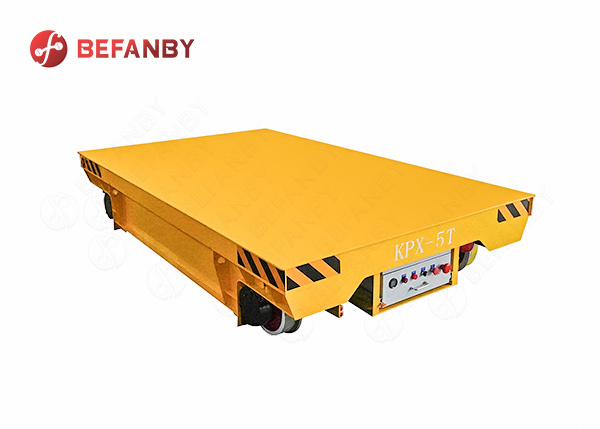

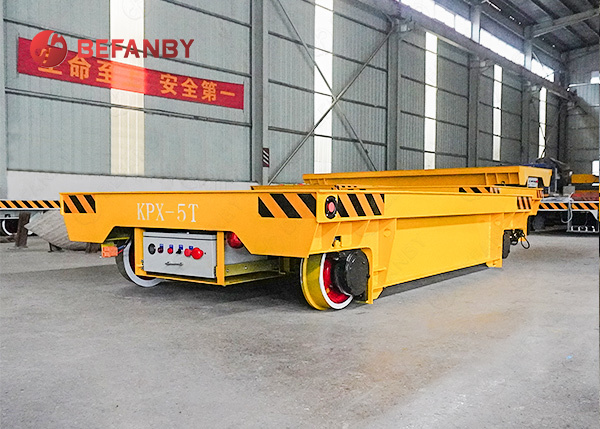

Professional 5 Ton Electrical Transfer Carts On Rail
1. Product Introduce
The rail transfer cart is a heavy-duty transport vehicle commonly used in industrial production, warehousing, and workshop material handling. This model features a robust structural design and cast-steel wheels, operating on fixed rails to provide a stable and efficient material transfer solution for production workshops.
2. Technique Parameter
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
3.Meets Diverse Material Transport Needs
This rail transfer cart is suitable for transporting a wide range of materials—such as steel, molds, and machinery—over short to medium distances. Its platform dimensions, load-bearing structure, and operating speed can be customized to meet specific operational requirements, ensuring optimal performance across various workshop environments.
For manufacturing enterprises requiring frequent material transfer, this rail-guided cart overcomes the limitations associated with traditional forklifts or manual handling, thereby enhancing overall transport efficiency.
4.Customized Solutions
The design of rail transfer carts requires a comprehensive assessment of the client's specific operating conditions. Based on parameters such as load weight, cargo dimensions, track length, operating environment, and usage frequency, we tailor the cart's structure, drive system, wheel configuration, and control scheme to meet specific requirements.
From initial design and drawing approval to manufacturing, assembly, commissioning, and delivery, every step is customized to align with actual transport needs. This ensures the 5-ton rail transfer cart integrates seamlessly into the client's existing production workflow, providing a reliable solution for industrial material transport.
5.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
