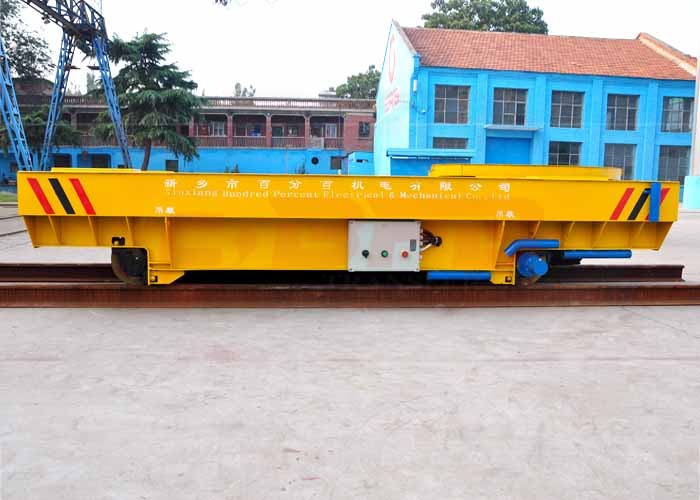

20t flat deck trailerfor container transportation on rails

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-60T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Production Line Or Paper Industry Rated Load 40T
Max. Capacity Up To 300ton Car Size 8000*3000*500mm
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Vehicle Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
Highlight

battery powered cart

,

rail transfer trolley

Leave a Message
Product Description

20t flat deck trailer for container transportation on rails

Working principle of 20t flat deck trailer


The flat deck trailer is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.



rail mounted car moving equipment



Structure of 20t flat deck trailer



20t flat deck trailerfor container transportation on rails 1 rail mounted car moving equipment



Detailed description of 20t flat deck trailer



This kind of flat deck trailer is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.



The main parts of flat deck ttrailer on rail includes storage battery, driving system, box girder frame, electric appliance, etc.



industrial worskhop steel structure handling steel pipe transfer large container transport wagon industrial worskhop steel structure handling steel pipe transfer

           Frame                                                    Storage battery                                 Charger

industrial worskhop steel structure handling steel pipe transfer industrial worskhop steel structure handling steel pipe transfer industrial worskhop steel structure handling steel pipe transfer

        Driving system                                             Casting wheel                                     Alarm



Features of 20t flat deck trailer

  • Box girder structure
  • Without cable, flexibility & durable
  • Can run on arc-shape rails, S-shape rails, crossing rails
  • can be applied high using frequency condition
  • can be used in high-temperature environment
  • can be used in explosion-proof environment
  • Reasonable design, reliable operation;
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • High efficiency, low energy consumption;

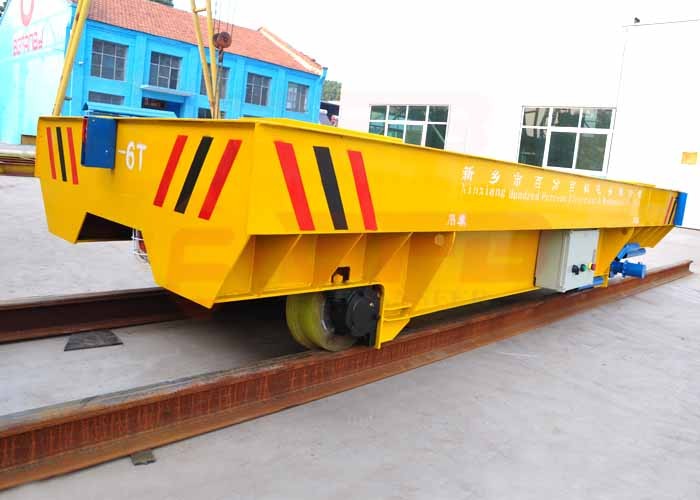

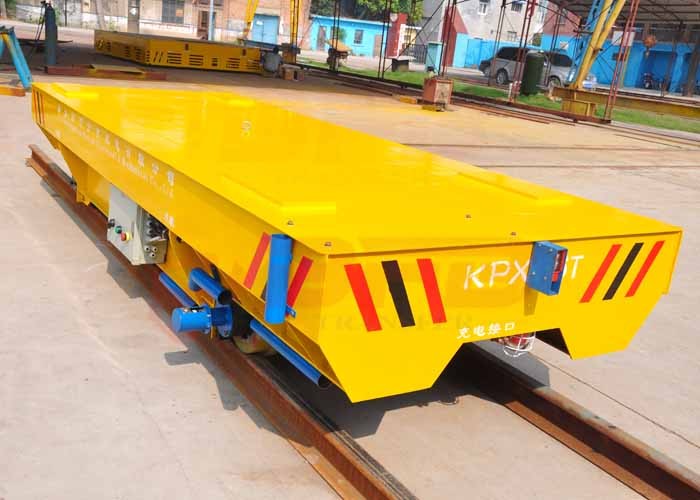

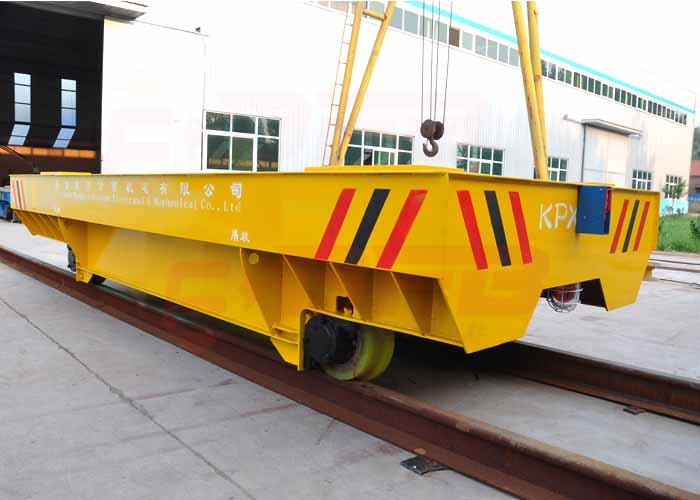

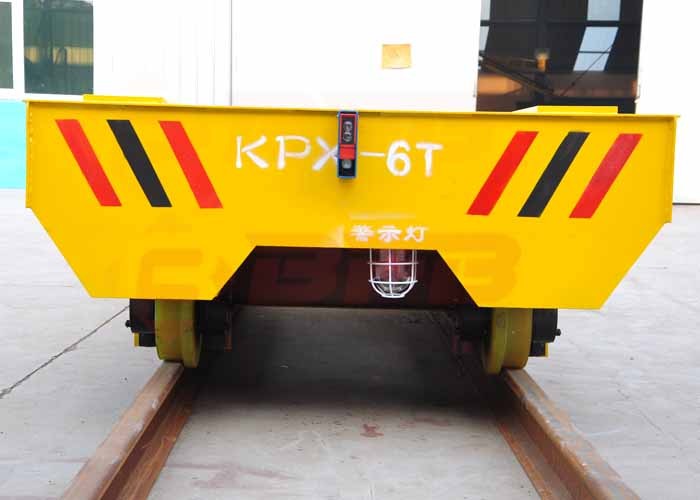

Photoes of 20t flat deck trailer



OEM track transport car OEM track transport car

OEM track transport car OEM track transport car

OEM track transport car OEM track transport car



The 6 sets 20t flat deck trailer is exported to Romania client, they are applied in steel plant to transfer heavy load steel structure.



Technical parameters of 20t flat deck trailer



Model
KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of 20t flat deck trailer


This kind of flat deck track trailer is running on steel tracks or steel squre bars.It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.



AGV rail mounted car moving equipment AGV rail mounted car moving equipment



The flat deck trailer also applied in the following working station:

  • Carry loads along assembly lines;
  • transfer material from one work station to the next;
  • store and transport an entire shift worth of production;
  • They can even be used as a stable yet moveable machine base.

steel pipe transfer


The 20t flat deck trailer can be applied on turning rails, arc-shape rails.

Delivery of 20t flat deck trailer


AGV rail mounted car moving equipment AGV rail mounted car moving equipment

AGV rail mounted car moving equipment AGV rail mounted car moving equipment


Generally the flat deck trailer is delivery through container, but if the platform is too large, it can be delivery through frame rack.

Customer visit in our factory


AGV rail mounted car moving equipment



Quality control of 20t flat deck trailer


AGV rail mounted car moving equipment



Other AGV car moving equuipment in BEFANBY company


AGV rail mounted car moving equipment 20t flat deck trailerfor container transportation on rails 25

 20t flat deck trailerfor container transportation on rails 26



Our company

AGV rail mounted car moving equipment

Our certificate
AGV rail mounted car moving equipmentAGV rail mounted car moving equipmentAGV rail mounted car moving equipment

FAQ

  1.  Q: What is the capacity of the flat deck track transport car?                                                                  A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

      2. Q: What is the using candition?
         A: The environment temperature should be in level. such as production line

      3. Q: What is the working speed of the flat deck track transport car?
          A: The standard running speed is 0-20m/min.
