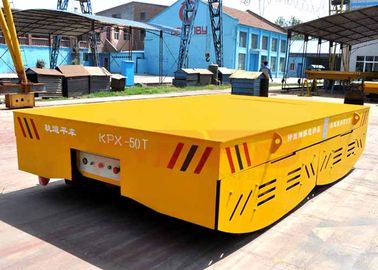

Long dip pipe handling turning transfer cart on arc-shaped rail from bay to bay

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX-80T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Production Line Or Paper Industry Rated Load 80T
Max. Capacity Up To 300ton Car Size 8000*3000*500mm
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Turning Transfer Cart Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
High Light

battery powered cart

,

battery operated cart

Leave a Message
Product Description

Long dip pipe handling turning transfer cart on arc-shaped rail from bay to bay

Working principle of dip pipe handling turning transfer cart


The dip pipe handling turning transfer cart is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.



rail mounted car moving equipment



Structure of dip pipe handling turning transfer cart



Long dip pipe handling turning transfer cart on arc-shaped rail from bay to bay 1 rail mounted car moving equipment



Detailed description of dip pipe handling turning transfer cart



This kind of dip pipe handling turning transfer cart is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.



The main parts of dip pipe handling turning transfer cart includes storage battery, driving system, box girder frame, electric appliance, etc.



industrial worskhop steel structure handling steel pipe transfer large container transport wagon industrial worskhop steel structure handling steel pipe transfer

           Frame                                                    Storage battery                                 Charger

industrial worskhop steel structure handling steel pipe transfer industrial worskhop steel structure handling steel pipe transfer industrial worskhop steel structure handling steel pipe transfer

        Driving system                                             Casting wheel                                     Alarm



Features of dip pipe handling turning transfer cart

  • Box girder structure
  • Without cable, flexibility & durable
  • Can run on arc-shape rails, S-shape rails, crossing rails
  • can be applied high using frequency condition
  • can be used in high-temperature environment
  • can be used in explosion-proof environment
  • Reasonable design, reliable operation;
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • High efficiency, low energy consumption;

Technical parameters of turning transfer cart



Model
KPX-2T KPX-10T KPX-20T KPX-30T KPX-50T KPX-63T KPX-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of turning transfer cart


This kind of dip pipe turning transfer cart is running on steel tracks or steel squre bars.It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.



AGV rail mounted car moving equipment AGV rail mounted car moving equipment



The dip pipe transfer cart also applied in the following working station:

  • Carry loads along assembly lines;
  • transfer material from one work station to the next;
  • store and transport an entire shift worth of production;
  • They can even be used as a stable yet moveable machine base.

steel pipe transfer


The dip pipe turning transfer cart can be applied on turning rails, arc-shape rails.

Delivery of turning transfer cart


AGV rail mounted car moving equipment AGV rail mounted car moving equipment

AGV rail mounted car moving equipment AGV rail mounted car moving equipment


Generally the turning transfer cart is delivery through container, but if the platform is too large, it can be delivery through frame rack.

Customer visit in our factory


AGV rail mounted car moving equipment



Quality control of turning transfer cart


AGV rail mounted car moving equipment



Other AGV car moving equuipment in BEFANBY company


AGV rail mounted car moving equipment Long dip pipe handling turning transfer cart on arc-shaped rail from bay to bay 19

 Long dip pipe handling turning transfer cart on arc-shaped rail from bay to bay 20



Our company

AGV rail mounted car moving equipment

Our certificate
AGV rail mounted car moving equipmentAGV rail mounted car moving equipmentAGV rail mounted car moving equipment

FAQ

  1.  Q: What is the capacity of the flat deck track transport car?                                                                  A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

      2. Q: What is the using candition?
         A: The environment temperature should be in level. such as production line

      3. Q: What is the working speed of the flat deck track transport car?
          A: The standard running speed is 0-20m/min.



flat deck track transport car
