Steel Pipe Handling Large Table Electric Remote Control Material Handling Trailers Design
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The tranfer trailer will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Running Distance | Unlimited | Power Supply | Battery |
| Load Capacity | 1-500T | Warranty | 12 Months |
| Port | Qingdao/Tianjin/Shanghai | Application | Steel Pipe Handling |
| Operation Method | Hand Pendant + Remote Control | ||
| High Light | battery powered cart,rail transfer trolley |
||
Product Description
Steel Pipe Handling Large Table Electric Remote Control Material Handling Trailers Design
Our company
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 60 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

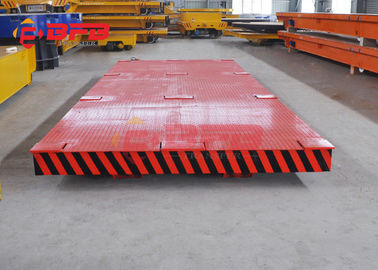

Product Showing of Steel Pipe Handling Large Table Electric Remote Control Material Handling Trailers
KPX series' Steel Pipe Handling Large Table Electric Remote Control Material Handling Trailers Design---- it is powered by storage battery, it is our specialized research, Simply speaking, it is an electric cart. Compaired with KPD, It has no limited distance; Compaired with others, it is simple operation and structure, But its main source powered is battery, so it has the limitation of time, and the storage should be maintanced once a regular time, its lifetime reachs to about 2.5 years, About this, it is popular in many foreign countries like South Aferican ,Germany , Turkey etc.Our company have professional team and utilize more advanced technique to make it.

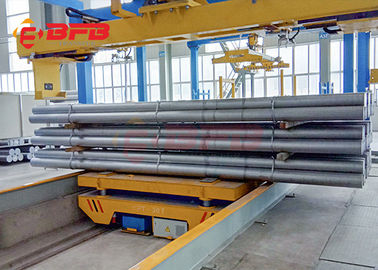

Application Showing of Steel Pipe Handling Electric Remote Control Material Handling Trailers Design
Character Showing of Steel Pipe Handling Large Table Remote Control Material Handling Trailers Design
- Simple structure
- Anti-explosion
- Anti- high temperature
- Safe devices are installed
- Customization can be supported
- Long lifetime
- Stable start
- Big starting power
- Small impact to the geer reducer
- Low voltage
- Charge 750 times, reduce 1/3 lifetime
Processing of Steel Pipe Handling Large Table Electric Remote Control Material Handling Trailers Design
Technique Parameter of Steel Pipe Handling Large Table Electric Remote Control Material Handling Trailers Design
| Model | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-63t | KPX-80t | KPX-150t | |
| Rated Load | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 63 | 80 | 150 | |
| Table size | Length(L) | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5600 | 6000 | 10000 |
| Width(W) | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2600 | 3000 | |
| Height(H) | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 700 | 800 | 1200 | |
| Wheel Base | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4300 | 4700 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | |
| Wheel Diameter | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 1.2 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 8 | 10 | 15 | |
| Battery Capacity | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 400 | 400 | 600 | |
| Battery Voltage | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3 | 3.6 | 2.9 | |
| Max Wheel Load | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 221.4 | 278.4 | 265.2 | |
| Reference Weight | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 10.8 | 12.8 | 26.8 | |
| Recommended Rail Model | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P50 | P50 | QU100 | |
