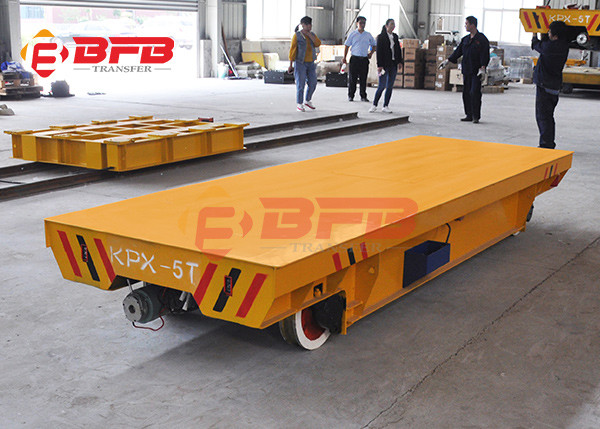

Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The tranfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 50-60 days as usual delivery,40-50days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Color | Customized |
|---|---|---|---|
| Application | Industrial Field | Running Speed | 0-20m/min |
| Running Distance | Unlimited | Warranty | 12 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-500T |
| Power Supply | Battery Powered | Operation Type | Hand Pendant + Remote Control |
| High Light | battery powered cart,battery operated cart |
||
Product Description
Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty
This is one of our products, it is powered by battery. The battery is installed in the inner of the cart. The direct-current machine gets its power from the electric control system, which make the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if it is necessary.
The feature of Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty
1. The transfer machine is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc .
2. For horizontal load transfers of a wide range of material, we could provide heavy duty, high quality Transfer Cart completely meet your need.
3. Transfer carts are used to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base.
4. It's necessary equipment for lifting goods, raising labor efficiency, improving working conditions.
Application Showing
KPX seires' rail transport vehicle can be used in many ocassions, Such as industry field(Steel plant/Metallurgy Field); Chemical Industry(Copper Industry); Working Line; etc. due to its simple structure, wherever in the plant or assembly line,only exists track, and the battery is charged fully,it can transport anywhere.Compaired with KPJ,KPT,KPC, it is not so complicated.Compaired with KPD, it is not so strict requiremnt,Therefore it is also the reason why many buyer like to purchase it.
Technique Parameter
| Model | KPX-10t | KPX-20t | KPX-30t | KPX-50t | KPX-80t | KPX-100t | |
| Rated Load | 10 | 20 | 30 | 50 | 80 | 100 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 5500 | 6000 | 6500 |
| Width(W) | 2000 | 2200 | 2200 | 2500 | 2600 | 2800 | |
| Height(H) | 500 | 550 | 600 | 650 | 800 | 900 | |
| Wheel Base | 2600 | 2800 | 3200 | 4200 | 4700 | 4900 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | |
| Motor Power | 2 | 3 | 4 | 6.3 | 10 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 330 | 400 | 440 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.8 | 4 | 3.5 | 3.3 | 3.6 | 3.2 | |
| Max Wheel Load | 42.6 | 77.7 | 110.4 | 174 | 278.4 | 343.8 | |
| Reference Weight | 4.2 | 5.9 | 6.8 | 8 | 12.8 | 14.6 | |
| Recommended Rail Model | P18 | P24 | P38 | P43 | P50 | QU100 | |
Our Company
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Our Advantage
Our Customer
Production Supply Scope
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling Cart | KPC | Busbar | Working shop | ||
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop | |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment | |
| Trackless Handling Machine | BWP | Battery | Working path |
Our After Service
- Our commitment:
- The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
- 16 hours engineering service and 24 hours internet service for our customers
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
