Long Distance Electric Transfer Cart , Towed Electric Transfer Cart With Emergency Stop
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40 days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Long Distance DC Motor Driven Towed Rail Transfer Cart With Emergency Stop | Color | Customized |
|---|---|---|---|
| Application | Industrial Field | Running Speed | 0-20m/min |
| Running Distance | Unlimited | Warranty | 18 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-1000T |
| Power Supply | Battery Powered | Operation Type | Hand Pendant+ Remote Control |
| Highlight | battery powered cart,rail transfer trolley |
||
Product Description

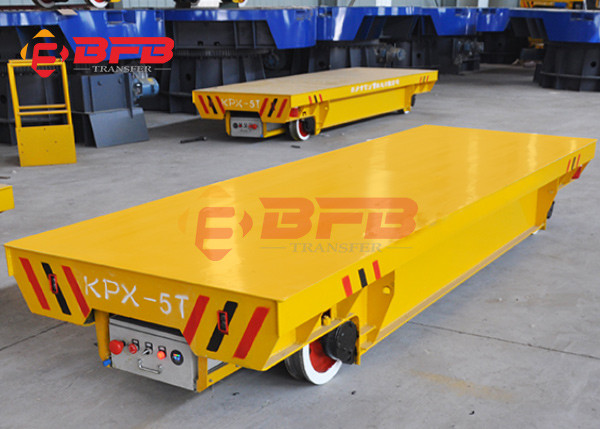

Long Distance Electric Transfer Cart , Towed Electric Transfer Cart With Emergency Stop
1. Product Introduction
Long Distance Electric Transfer Cart , Towed Electric Transfer Cart With Emergency Stop is one of our hot sale products, it is powered by battery. The battery is installed in the inner of the cart. The direct-current machine gets its power from the electric control system, which make the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if it is necessary.
2. Why choose electric transfer cart to instead of the manual type transfer cart
a. Low noise It causes low noise level.
b. Maximum safety Offers guarantee of maximum safety for operators and for the material handled. BEFANBY really care about the safety of everyone involved in the job.
c. Easy to operation These carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. BEFANBY will support you to make the best out of your heavy load transporter.
d. Customized 1-500t capacity The electric transfer cart is super for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
e. To Increase Output The multidirectional battery powered trolley on wheels minimizes forklifts and cranes usage, due to the lifting deck which allows to these poly directional battery-driven trolleys to lift and move the loads where needed.
f. No limits for the Spaces The steering battery-driven trolley is rather compact and with all the different types of steering: 90 degree, carousel, diagonal, compass and so on. And it can operate even in very narrow spaces.
3. Technique Parameter
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 1 | 1.2 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
4. Packing and delivery
BRFANBY have fixed fowarder with long term cooperation. and we will as per the true situation to provide proper transportation solution to save teh cost.
