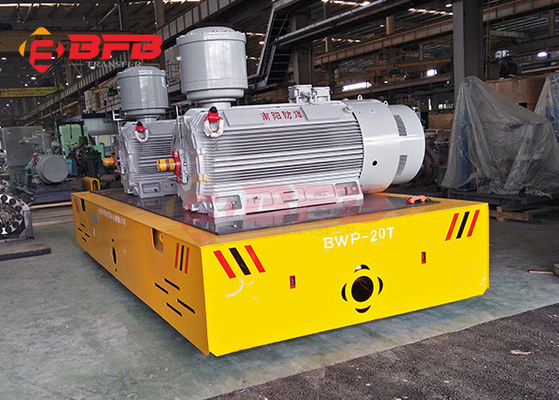

Steel Element Electric Battery Transfer Cart 20 M / Min Speed 1435mm Rail Gauge
| Place of Origin | Xinxiang, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE, ISO9001,SASO,CE |
| Model Number | electric handling cart |
| Minimum Order Quantity | 1set |
| Price | Negotiation |
| Packaging Details | The whole cart is packed by tarp, the other is packed wooden case. |
| Delivery Time | 45-60 days after receiving the payment. |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 500 sets/ year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cart Material | Steel Q235B | Power Supply | Battery |
|---|---|---|---|
| Table Size | Can Be Customized | Speed | 20 M/min |
| Rail Gauge | 1435mm | Load Capacity | 20t,1-500t Customized |
| Motor | 2kw | Running Distance | No Limitation |
| Warranty | 12 Months | Color | Customized |
| Operation Type | Hand Pendant 9 Remote Control | ||
| Highlight | battery powered cart,battery operated cart |
||
Product Description
Steel Element Electric Battery Transfer Cart 20 M / Min Speed 1435mm Rail Gauge
Product brief of electric handling cart
Steel Element Electric Battery Transfer Cart 20 M / Min Speed 1435mm Rail Gauge is a kind of rail handling equipment. It can meet special working environment, so it is chosen by some plants to transport the workpeice from sand blasting booth to painting booth. In painting booth, the handing cart needs anti explosion.
1. Features:
1. Anti explostion, anti-high temperature
2. No limited running distance
3. Power can be battery or cable
4. Speed:20m/min
5. Safe devices are installed as per customers' demand
6. Customization can be supported as per customers' demand
7. Hand pendant+ remote control to make the cart start, stop, go forward, back forward, turning, and so on.

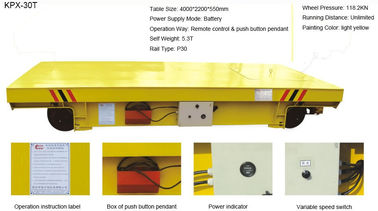

2. Parts Showing
3. Application:
Painting line includes sand blasting area, painting area, baking area etc. These area can be in steel mill, shipyard.

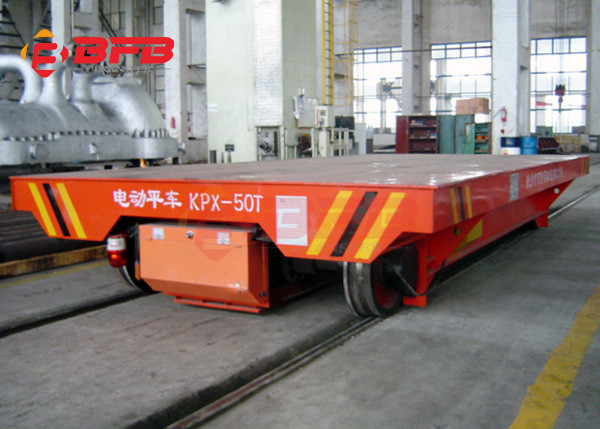

4. Parameter list of Steel Element Electric Battery Transfer Cart
|
Model
|
KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Our Company
Xinxiang Hundred Percent Electrical and Mechanical company is a collection of research, design, manufacture, installation and after-sales service of transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.
Our client
Related project for electric handling cart
In order to provide suitable price, please let us know the following informaiton when you inquire the transfer car:
| In order to provide the best price for you, please provide the following information |
|
1. Cart payload, power supply mode, table size and travelling distance |
|
2. The cart runs on rails or cement floor? |
|
3. If you cann't choose the model,please let us know how do you use the cart, we will recommend the suitable cart for you according to your actual condition. |
More information, welcome to contact us freely. Welcome to visit our factory.
