Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table

Place of Origin Xinxiang
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPJ-20T
Price Negotiation
Packaging Details Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time 50-60 days as usual delivery,40-50days for urgent delivery
Payment Terms 30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability 600 sets one year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Production Line Or Shipyard Rated Load 20t
Max. Capacity Up To 300ton Car Size 2000*2000*500mm
Electrical Equipment Siemens, Schneider, Nord Exported Countries Mexico, Australia, Singapore
Material Q235 Steel Wheel Quantity 4 Pcs
Package The Whole Transport Bogie Is Packed With Plastic Woth, The Electric Parts Is Packed By Wooden Crate Delivery Time 45-60 Days After Received Advamced Payment
Payment Terms T/T, L/C Port Qingdao/Tianjin/Shanghai/Ningbo
High Light

motorized industrial carts

,

motorized material handling equipment

Leave a Message
Product Description

Flat bed foundry plant small table railway rail transport bogie





Detailed description of railway rail transport bogie



This kind of automatic railroad trolley is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.



The frame of cable drum powered automatic railroad trolley is welded by high quality steel, with the assistant of running mechanism, gears, AC motor, cable drum, the cart will function under the control system.



railroad trolley railroad trolley

wide platform transport wagon Driving system of the rail wagon Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table 4

                  Frame                                              Driving system                                  Cable drum



Working principle of railway rail transport bogie


KPJ series automatic railroad trolley is powered by cable drum. The power source 380V alternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the railroad trolley. The railroad trolley can realize full automatic operation by PLC system.



Features of industrial railway trolley

  • Anti-explosion,Anti-high temperature;
  • Powered by cable;
  • With lifting holes, convenient to shipment;
  • Stable start, big starting power, long lifetime;
  • Simple structure, low cost ;
  • Running distance is limited;
  • Safe and convenient operation ;
  • High using frequency ;
  • Unlimited load capacity
  • Can be add hydraulic lifting device;
  • Can be add dumping device;
  • High efficiency, low energy consumption;

Technical parameters of railway rail transport bogie



Model
KPJ-2T KPJ-10T KPJ-20T KPJ-30T KPJ-50T KPJ-63T KPJ-150T
Rated load (T) 2 10 20 30 50 63 150
Table size length(L) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 2000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Wheel Quantity 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 75 75
Running speed (min) 0-25 0-25 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 1 1.6 2.2 3.5 5 6.3 15
Battery Capacity(Ah) 180 160 180 250 330 400 600
Battery Voltage(V) 24 48 48 48 48 48 72
Running Time When Full Load 4.32 4.8 4 3.5 3.3 3 2.9
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2 4 3.6 3.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
Reference Weight (t) 2.8 4.2 5.9 6.8 8 10.8 26.8
Recommended Rail Model P15 P18 P24 P38 P43 P50 QU100

Application of railway rail transport bogie


This kind of automatic railroad trolley is running on steel tracks or steel squre bars.It is suitable to high using frequency working condition without crossing rails, but the running distance is no more than 200m.



Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table 5 Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table 6

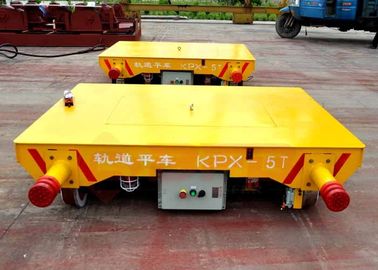

Small dimension railroad trolley, it equipped with bumper, to protect the trolley be damaged.



Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table 7 Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table 8



railway rail transport bogie railway rail transport bogie

There is electric forklift on the platform of the railway trolley, It can lift up and down materials freely.



The transport bogie is also applied in the following working station:

  • Carry loads along assembly lines;
  • transfer material from one work station to the next;
  • store and transport an entire shift worth of production.
  • They can even be used as a stable yet moveable machine base.
Delivery of railway rail transport bogie


railway rail transport bogie railway flat wagon



railway rail transport bogie railway rail transport bogie


Generally the rail transport bogie on tracks is delivery through container, but if the platform is too large, it can be delivery through frame rack

Customer visit in our factory


railway flat wagon Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table 16

Customer feedback

 railway rail transport bogie

Quality control of large dimension railroad trolley


railway rail transport bogie




Other railway rail transport bogie in BEFANBY company


railway rail transport bogie railway rail transport bogie

Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table 21



Our company

railway rail transport bogie

Our certificate
railway rail transport bogierailroad trolleyrailway rail transport bogie



Our service

  • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
