Electric Orange Color Heavy Duty Plant Trailer For Cement Floor Q235 Material
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | BWP |
| Minimum Order Quantity | 1 set/sets |
| Price | $4000-$7000/ Per Set |
| Packaging Details | The heavy duty plant trailer will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40 days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Color | Customized |
|---|---|---|---|
| Warranty | 12 Months | Load Capacity | 1-500T |
| Running Speed | 0-20m/min | Running Distance | Unlimited |
| Power Supply | Battery Powered | Port | Qingdao/Tianjin/Shanghai |
| Application | Industial Field | Advantage | Flexible,turnning Free |
| Operation Method | Hand Pendant + Remote Control | Product Name | Chinese Manufacturer Electric Orange Color Heavy Duty Plant Trailer For Cement Floor |
| High Light | powered trolley cart,motorized platform cart |
||
Product Description

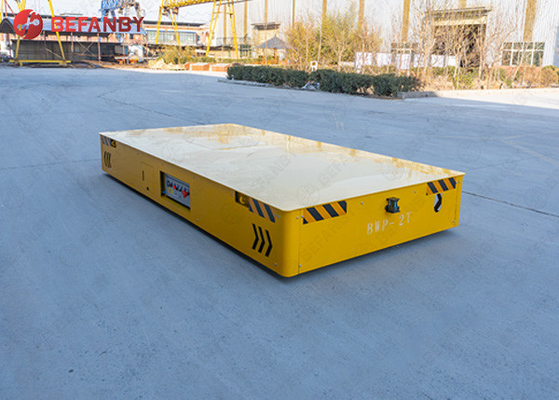

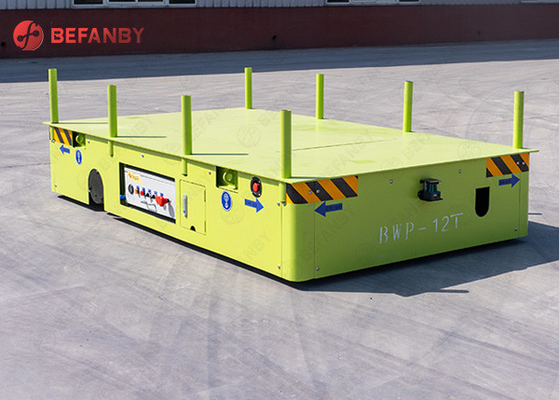

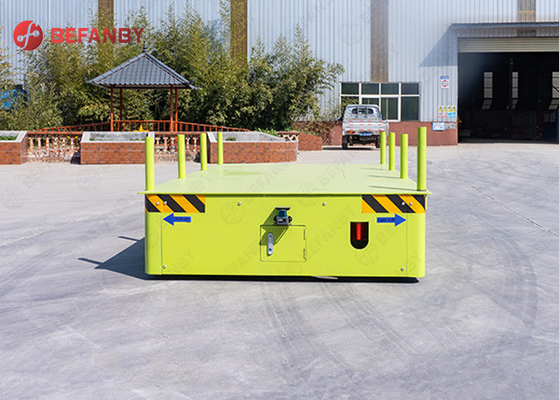

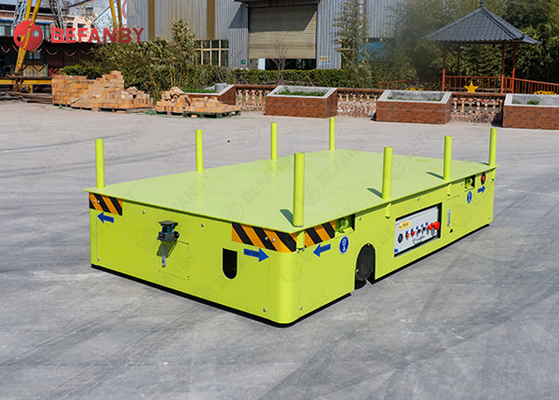

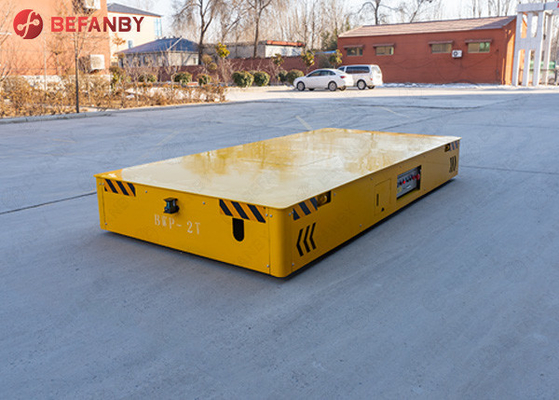

Chinese manufacturer electric orange color heavy duty plant trailer for cement floor
1. Introduction of the Chinese manufacturer electric orange color heavy duty plant trailer for cement floor
Conventional Chinese manufacturer electric orange color heavy duty plant trailer for cement floor, all run on rails, but limited by the length of the track, the radius of the turn, etc., such track flat cars can only be used within a certain range, and are determined according to fixed lines. Too many workshops or factory tracks can cause traffic problems in limited spaces.
However, due to these limitation, BEFANBY company research and design the heavy duty plant trailer trackless sucessfully, whcih can run the common floor, and realize the turning with 360 degree freely.
BEFANBY could give some advice according to the plant site . Also give a reasonable solution for every client.
2. Parameter of the Chinese manufacturer electric orange color heavy duty plant trailer for cement floor
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Remark | The technical parameter of the Chinese manufacturer electric orange color heavy duty plant trailer for cement floor only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time. | |||||||
Get the competitive quotation, please do not hesitate to contact with us.
3. Processing details of the Chinese manufacturer electric orange color heavy duty plant trailer for cement floor
Brief introduction----Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd
How to choose the suitable transfer trailer?
All of our transfer trailer, all customized as client's requirement, for choose the most suitable handling trolley,please kindly providing the following information:
· Transfer or handling what material/cargo?
· What capacity do you need?
· This transfer trolley is running on rails or ground(floor)?
· Your requirement for table size:length,width and height?
· How about the running distance?
. How many hours does the transfer car work one day?
