1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device

  • 1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
  • 1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
  • 1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
  • 1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
  • 1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
  • 1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
  • 1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
  • 1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price $3000-$6000/ per set
Packaging Details The transfer carts will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 800 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1-500 Ton Heavy Machinery Industry Equipment Rail Transfer Cart With Audible Warning Device Color Customized
Application Industrial Field Running Speed 0-20m/min
Running Distance Unlimited Warranty 18 Months
Port Qingdao/Tianjin/Shanghai Load Capacity 1-1000T
Operation Type Hand Pendant + Remoete Control Power Supply Battery Powered
Highlight

battery operated cart

,

rail transfer trolley
Leave a Message
Product Description

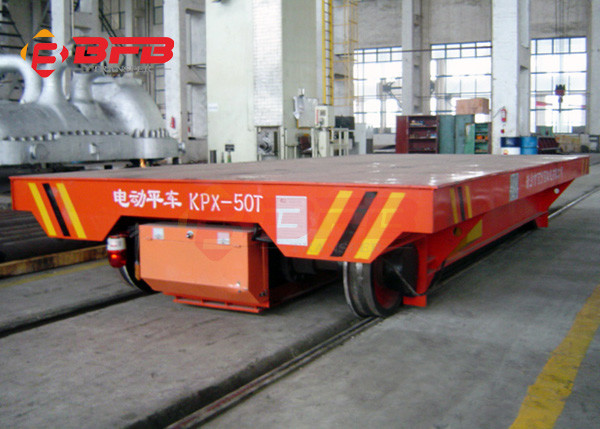

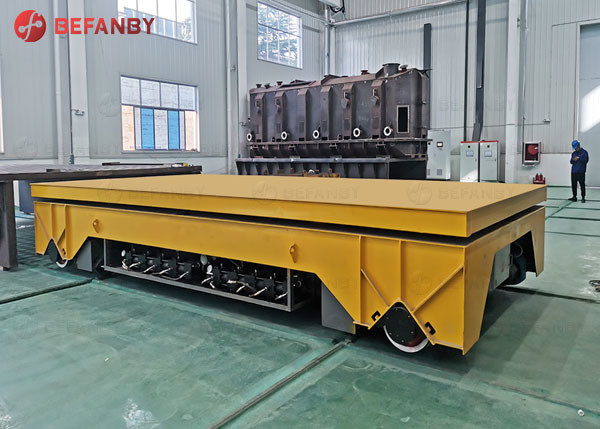

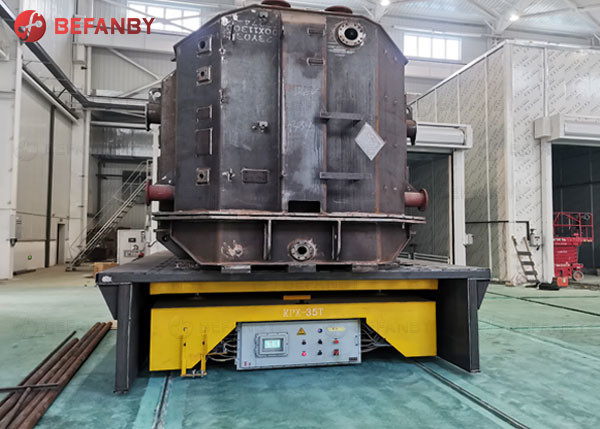

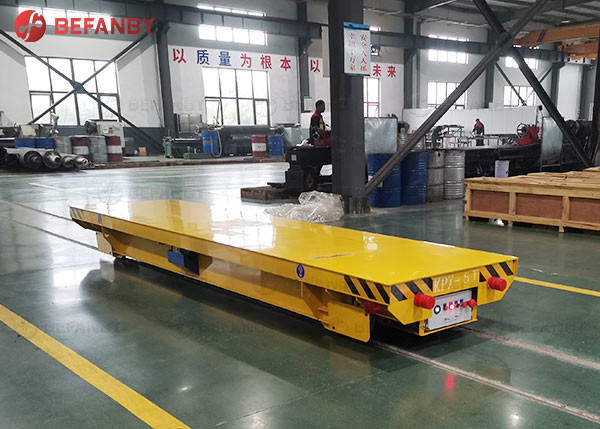

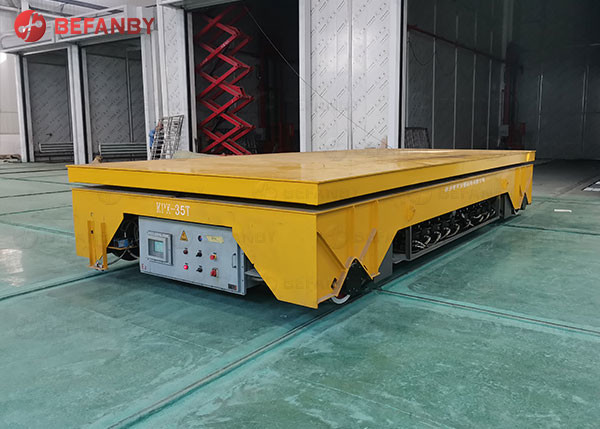

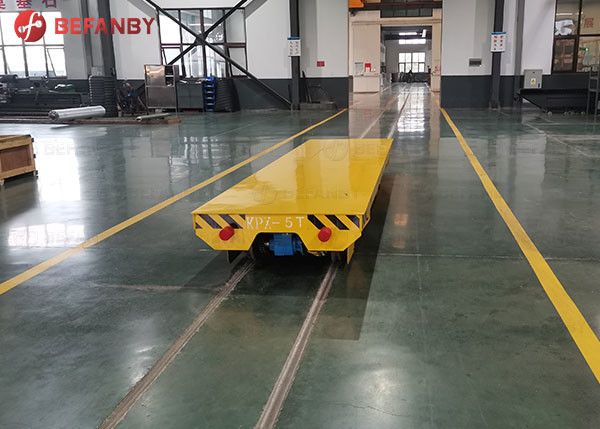

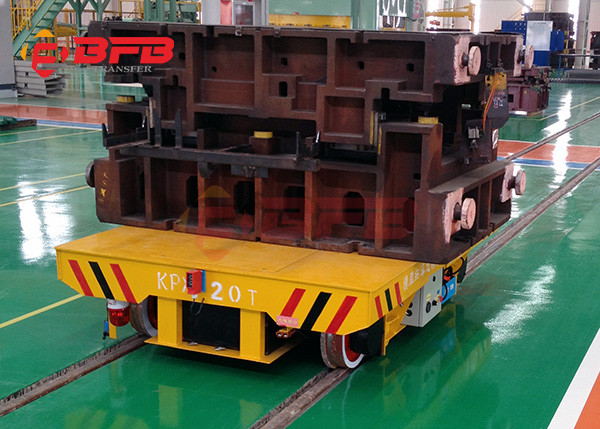

1-500 ton heavy machinery industry equipment rail transfer cart with audible warning device

1. The Brief Introduction of 1-500 ton heavy machinery industry equipment rail transfer cart


The 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning device is our most popular carts. It is used to move dies,coils or materials between the pressroom and the mold storage and maintenance area. This 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning device has the superiority of moving the entire length of the manufacturing equipment, where molds that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard htransfer cars is controlled by a hand held push button controller and wireless control with small turning radius.





1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device 0

1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device 1



2. The Safe Device of 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning device



1. Sound and light alarm lamp,alarm worker to make the walk safer



2. Dead man stop, Stop automatically when pedestrian or obstacle is detected



3. Emergency stop button, can make the cart stop immediately



4. Limit switches and buffers on both sides



5 .Bumper installed the end of the cart to protect the carts against the wall



6. The structural parts are made of Q235B rolled steel plate, 1.5 times load design and 1.25 times load test



7. With conventional electrical protection: over current, over voltage, under voltage, short circuit, overheating, grounding, leakage and other protective devices



8. Optional wireless remote control operation



1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device 2





3. The Technique Parameter of 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning

Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 1 1.2 2 2.2 3 3.5 4 5 6.3 8 10 15 15
Battery Capacity 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage 24 36 48 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100



5. The Transporting Details of  1-500 ton heavy machinery industry equipment rail transfer cart with audible warning





A. BEFANBY 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning device have been exported to many countries such as US, Canada, Thailand, Netherlands, South Africa, UAE, Turkey, Saudi Arabia etc.



B. The 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning devices is packed with tarp, and the wheel , rails and parts of the CE bulk material handling equipment battery powered transfer cars on rails will be packed by the high quality wooden case.



C. According the table size and quantity, the industrial material handling robust railcar would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.


1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device 3
6. BEFANBY Company


1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device 4


Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Our Workshop Equipment

1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device 51-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device 6

Our Sales Performance for half years

The largest capacity can reach to 500 tons or more.

1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device

BEFANBY Transfer Cart Application

1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device 8


1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
