Steel Rolls Warehouse 20m/Min 1T On Rail Transfer Cart

Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPD
Minimum Order Quantity 1 set/sets
Packaging Details The warehouse trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 set/sets per year
Product Details
Material Q235 Running Speed 0-20m/min
Running Distance According To Customers'demand Warranty 18 Months
Load Capacity 1-1000T Application Industrial Field, Steel Rolls Handling, Automobile Assembly Line Handling
Port Qingdao/Tianjin/Shanghai Color Customized
Power Supply Low Voltage Rail Power Operation Type Hand Pendent + Remote Control
Rail And Wheel Insulated Material Will Be Added
High Light

1T On Rail Transfer Cart

,

20m/Min On Rail Transfer Cart

,

Warehouse Rail Transfer Trolley

Leave a Message
Product Description

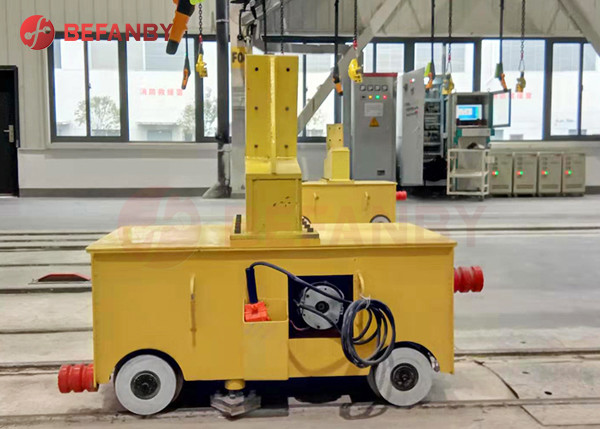

Warehouse Trolley 1 Ton Carrying On Rails For Automobile Assembly Line Handling


1. Product Introduce



BEFANBY custom manufacture rail power warehouse trolley 1 ton carrying on rails for automobile assembly line handling is powered by low voltage electricity from railways, the kind of warehouse trolley 1 ton carrying on rails for automobile assembly line handling is one of the most convenient material handling equipment and it often can be widely used in the industry field and so on. Of course,compared other transfer trolley,it main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the rail motorized platform trolley have, why we design is that its convenient (only rails needed) and its simple operation.



About BEFANBY, Our rail powered warehouse trolley not only have sold across the country, but also exported to US, Malaysia, Thailand, Netherlands, South Africa, Syria, Turkey, Singapore, Nepal etc. There are more than 150 employees including 10 senior engineers, 15 engineers, 25 technicians, the employees accepted higher education including postgraduate, undergraduate, junior colleague student occupied 80%. We cooperate with the Nanjing Engineering Institute all the year round and a senior welding engineer personally directs the production. Our company passed ISO9001 Quality management system and got the CE, ISO, SGS certificate. Meanwhile, we also got 8 national patents which are S type rail turning cart utility model patent, S type rail turning cart appearance patent, rail electric forklift utility patent, electric rail tractor utility patent, steerable Transfer Car Exportedutility patent, lifting electric cart utility patent, scissor hydraulic lifting electric trolley patent, whole ring rail electric flat car’s wheel and flat car patent.



Please contact us if you's like to learn more details and get the quotation.



BEFANBY have over 16 years' experience in the material handling fields.

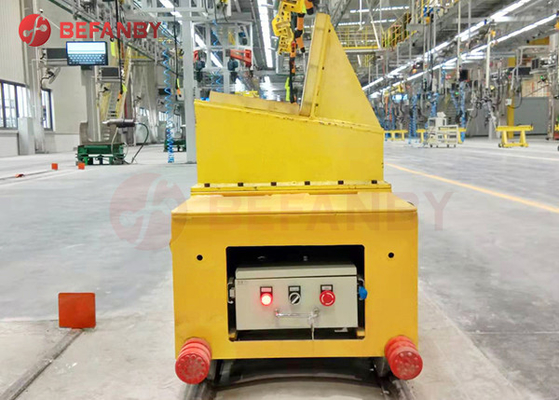

Warehouse Trolley 1 Ton Carrying On Rails For Automobile Assembly Line HandlingWarehouse Trolley 1 Ton Carrying On Rails For Automobile Assembly Line Handling



Warehouse Trolley 1 Ton Carrying On Rails For Automobile Assembly Line Handling




2. Working Principle


BEFANBY warehouse trolley 1 ton carrying on rails for automobile assembly line handling, the power source AC380v is transformed into AC36v two-phase and are respectively connected to the two rails.Then the flat carts' wheels conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.

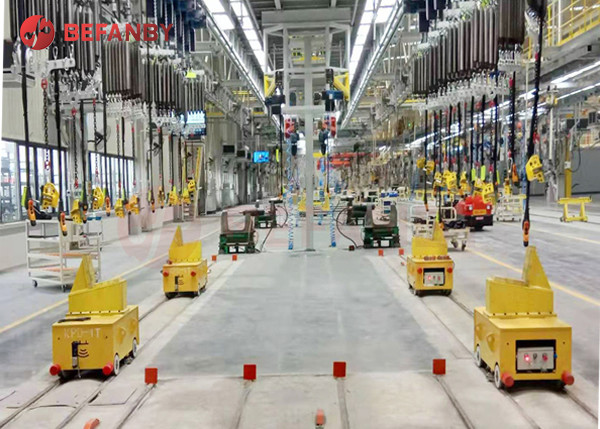

Warehouse Trolley 1 Ton Carrying On Rails For Automobile Assembly Line Handling







3. Advantage



The advantage of warehouse trolley 1 ton carrying on rails for automobile assembly line handling is that it is not only safe, but also not afraid of hot, not afraid of smashing, does not hinder cross-transportation, easy to realize remote control and automation, can drive on curved roads and circular roads, and increase the number of step-down transformers properly. The limitation of the running distance of the transfer trolley is very convenient for the transportation plane layout of the plant.

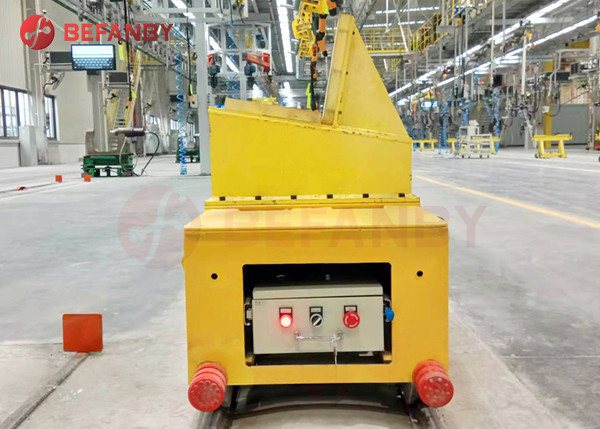

Warehouse Trolley 1 Ton Carrying On Rails For Automobile Assembly Line Handling




4. Technique Parameter
KPD series is a low-voltage power supply without towing cable electric transfer trolley; KPX series is a battery electric motorized rail platform transfer trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered electric rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.

Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50

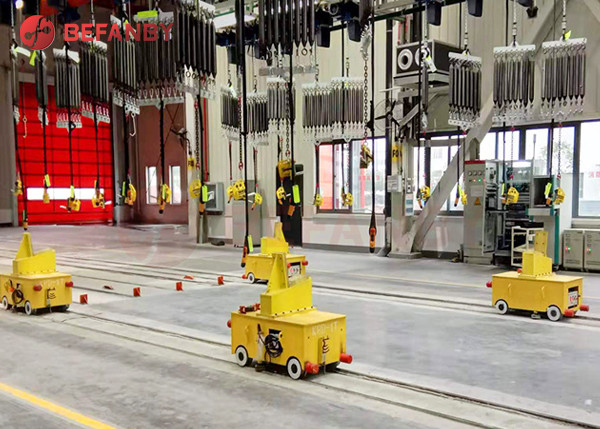

Warehouse Trolley 1 Ton Carrying On Rails For Automobile Assembly Line Handling

Exported Company

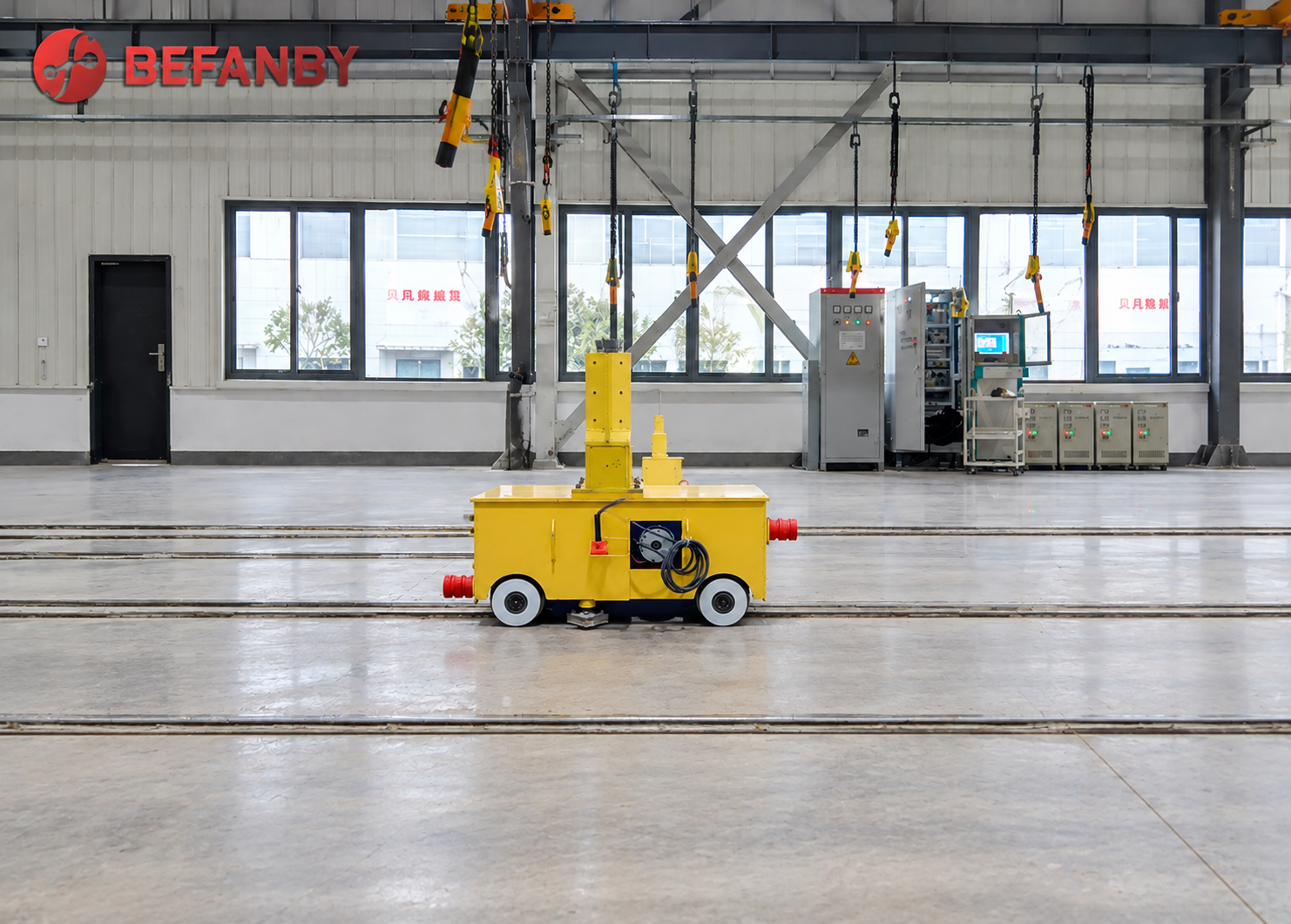

Warehouse Trolley 1 Ton Carrying On Rails For Automobile Assembly Line Handling
