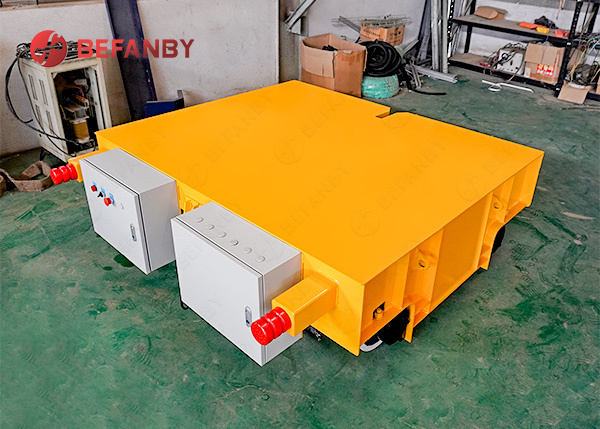

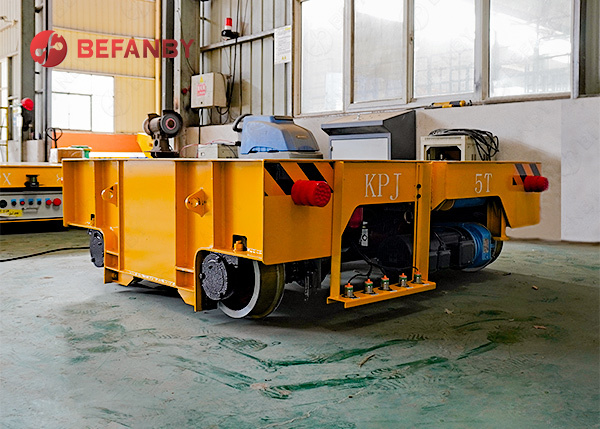

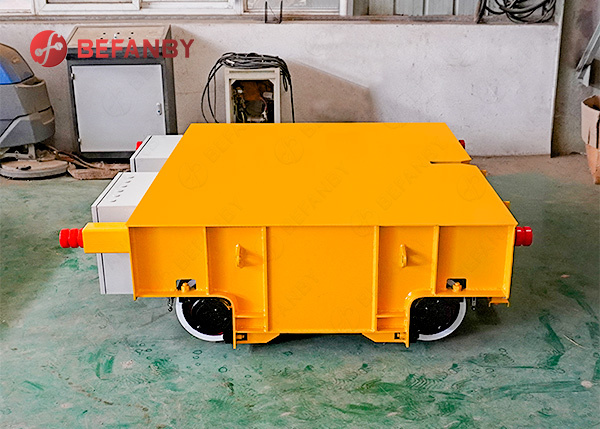

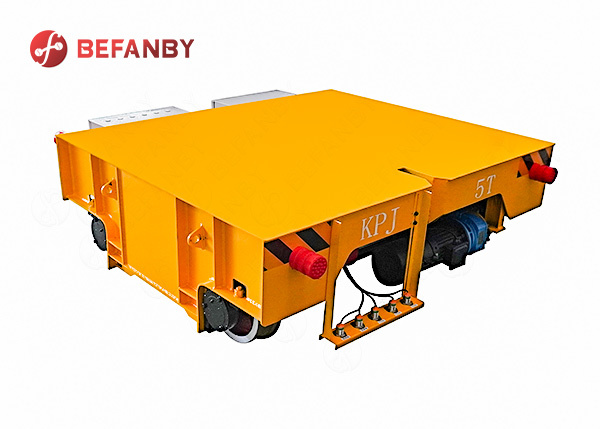

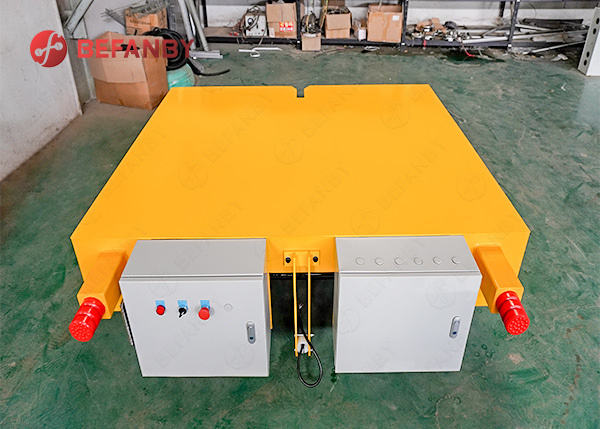

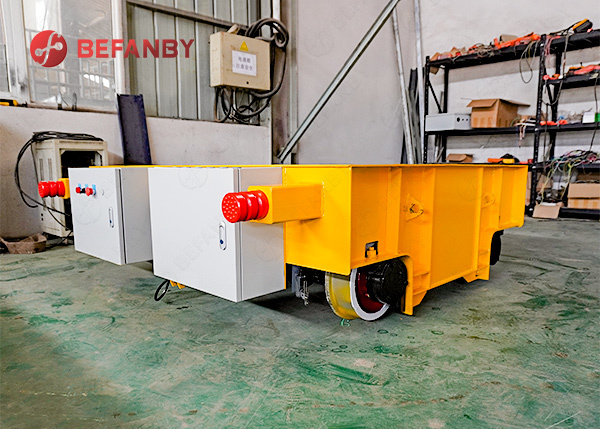

Customized Electrical Rail Transfer Carts With Cast Steel Wheel
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD |
| Document | KPDZ.pdf |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The electric transfer cart factory will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 1000 set/sets per year |
Product Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Load Capacity | 60T | Power Supply | Low Voltage Rail |
| Operation Type | Hand Pendent + Remote Control | Wheel Material | Insulated |
Product Description
Customized Electrical Rail Transfer Carts With Cast Steel Wheel
1. Product Introduce
A cable reel rail transfer cart is an electrically powered material handling device that runs on a fixed track and is powered by a cable reel. During operation, the cable reel automatically winds up and unwinds the cable according to the transfer cart's travel distance, making it suitable for medium- to long-distance transportation.
This type of transfer cart is widely used in various work environments, such as factory workshops, steel metallurgy, production lines, and large equipment manufacturing, and can be used to transport steel, molds, machinery, workpieces, and other heavy materials.
2. Technique Parameter
| Model | KPJ-2t | KPJ-5t | KPJ-10t | KPJ-16t | KPJ-20t | KPJ-25t | KPJ-30t | KPJ-40t | KPJ-50t | KPJ-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
3.Structural Design
Based on the load capacity and actual transport conditions of the transport vehicle, a high-strength box girder frame or a steel composite structure can be adopted. Optional drive systems, wheels, and load-bearing components can be selected to ensure the vehicle has excellent load-bearing capacity and operational stability.
The transfer cart runs along fixed tracks, maintaining a stable travel route, suitable for transporting medium to heavy-duty and even extra-heavy materials. The platform can also be customized according to the actual transported items, and auxiliary structures such as baffles, support frames, positioning devices, V-blocks, tooling fixtures, and roller conveyor systems can be added.
4.Upgrades and Development
- Basic Rail Transport
Early rail transport vehicles were primarily used to solve the problem of transferring large and heavy materials within the factory. Driven by motors, the wheels ran along fixed tracks, featuring a simple structure and convenient operation, meeting basic material transport needs.
- Platform Function Upgrades
As modern industrial production demands increasing transport efficiency and equipment compatibility, rail transport vehicles have gradually evolved from single transport platforms to multi-functional operating platforms.
Depending on the characteristics of the materials, various configurations can be added to the platform, such as hydraulic lifting, roller conveyors, roll material supports, fixed clamps, and weighing displays, enabling the transport vehicle to directly participate in material transfers and process transfers between production lines.
- Automation and Intelligent Upgrades
With continuous upgrades and development, modern cable reel rail transport vehicles can be further integrated with factory automation systems. Through PLC control, sensor detection, fixed-point stopping, automatic start/stop, and production line linkage functions, more intelligent material transport can be achieved.
Based on this, non-standard designs can be made according to the customer's on-site processes, allowing the transport vehicle to gradually upgrade from a traditional heavy-duty transport device to an important component of the factory's intelligent logistics system.
5.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
