Remote Q235 20m/Min 15 Ton Marble Rail Transfer Cart
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD |
| Minimum Order Quantity | 1 set/sets |
| Packaging Details | The marble transfer trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Running Distance | According To Customers'demand | Warranty | 18 Months |
| Load Capacity | 1-1000T | Application | Industrial Field, Steel Rolls Handling, 15 Tons Marble Transfer |
| Port | Qingdao/Tianjin/Shanghai | Color | Customized |
| Power Supply | Low Voltage Rail Powered | Operation Type | Hand Pendent + Remote Control |
| Rail And Wheel | Insulated Material Will Be Added | ||
| High Light | 20m/Min Rail Transfer Cart,15 Ton Rail Transfer Cart,Q235 Material Transfer Carts |
||
Product Description

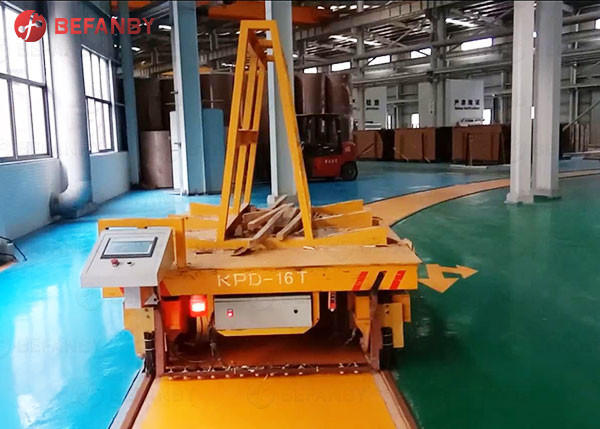

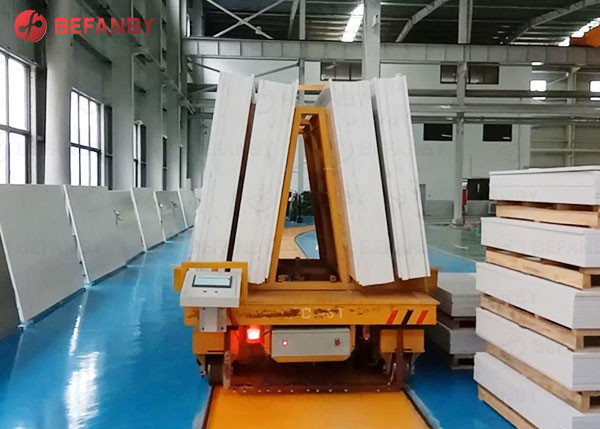

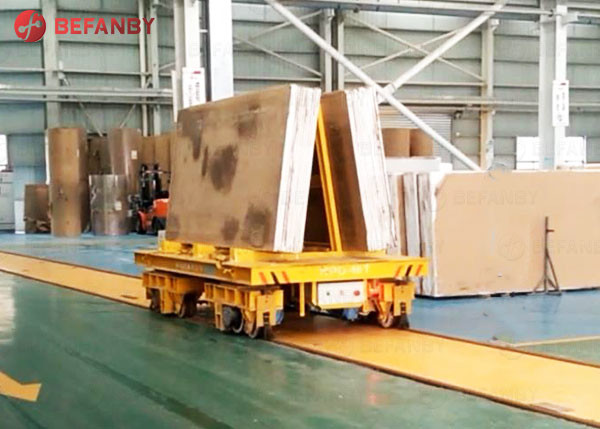

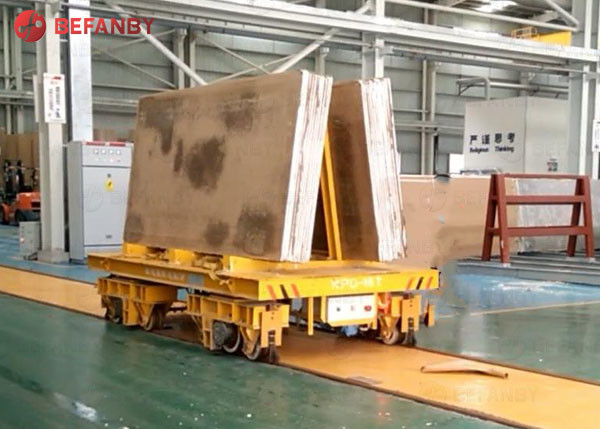

Rail Powered Marble Transfer Trolley 15 Tons With A Frame Table
1. Product Introduce
|
BEFANBY custom manufacture marble transfer trolley 15 tons with a frame table is powered by low voltage electricity from railways, the kind of custom manufacturemarble transfer trolley 15 tons with a frame table is one of the most convenient material handling equipment and it often can be widely used in the industry field and so on. Of course,compared other transfer trolley,it main features as it follows,its rails is isulated with the ground, and its wheels are isulated with the ground, so doesn't others.it is the advantage that the marble transfer trolley 15 tons with a frame table have, why we design is that its convenient (only rails needed) and its simple operation.
|
|
About BEFANBY, Our company have professional team and utilize more advanced technique to design and develope it , and it has been a long year to manufacture it attentively. Simutaneously, it will be more easy and flexible.Simple structure and low cost make it popular for workshop transportation. |
|
Please contact us if you's like to learn more details and get the quotation.
BEFANBY have over 16 years' experience in the material handling fields. |
2. Working Principle
BEFANBY custom manufacture rail powered marble transfer trolley 15 tons with a frame table, the power source AC380v is transformed into AC36v two-phase and are respectively connected to the two rails.Then the flat carts' wheels conduct the AC36v on rail into the electrical appliance box at the bottom of the carts, And then the AC36v is transformed into DC36v and then control the DC motor through the DC control system to make the flat carts start, stop, go forward and backward railways.
3. Advantage

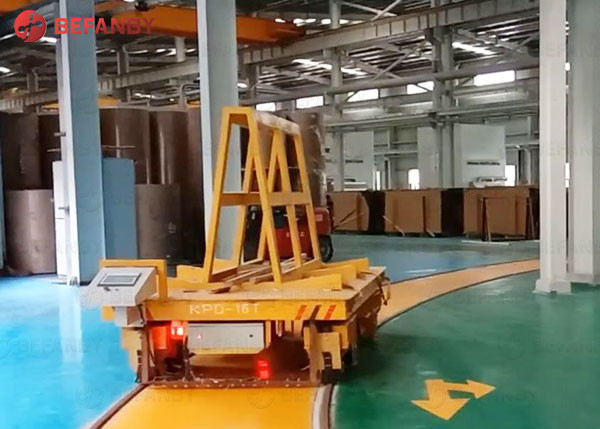

The advantage of custom manufacture marble transfer trolley 15 tons with a frame table is that it is not only safe, but also not afraid of hot, not afraid of smashing, does not hinder cross-transportation, easy to realize remote control and automation, can drive on curved roads and circular roads, and increase the number of step-down transformers properly. The limitation of the running distance of the transfer trolley is very convenient for the transportation plane layout of the plant.
4. Technique Parameter
KPD series is a low-voltage power supply without towing cable electric transfer trolley; KPX series is a battery electric motorized rail platform transfer trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered electric rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.
| Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
Factory Equipment
Exported Company
Our Company
Q &A
1. Q: What is the size and load of this electric marble transfer trolley 15 tons ?
A:The size and load of our this electric marble transfer trolley 15 tons is customized design according to your requirement.
2. Q: How should I operate this electric marble transfer trolley 15 tons ?

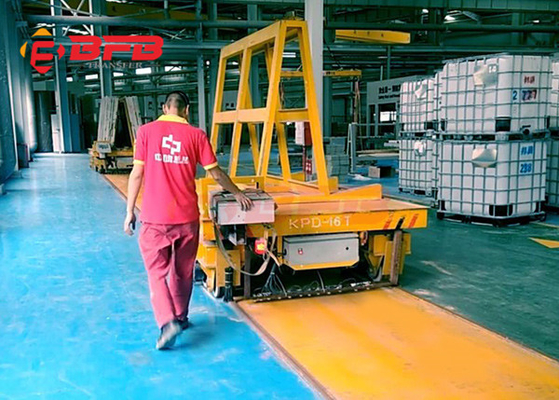

A: The electric marble transfer trolley 15 tons is controlled by pendant & remote radio control. The controller could be push button or joy-sticker.
3. Q: Is there any braking system on this electric marble transfer trolley 15 tons ?
A: Yes, there are electromagnetic brakes on the marble transfer trolley 15 tons. When the marble transfer trolley 15 tons is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and the electric 25 ton transfer cart, you can push it for emergency stop.
4. Q:What is the warranty period? What kind of service do you offer in the warranty period?
A: The warranty period for our product is 18 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.
5. Q: How do you transport the electric marble transfer trolley 15 tons and what is the package ?
A: For the big part, we will pack it with tarpaulin and wood pallet on the bottom of the electric 25 ton transfer cart to prevent it from moving. For the small part, we will pack it in wood case.
6. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special electric 25 ton transfer cart, such as hydraulic lifting electric 25 ton transfer cart, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
