Hydraulic Steering Steel Platform Rail Track Trolley
| Place of Origin | Henan, China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPD |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 600 set/sets per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Running Speed | 0-20m/min |
|---|---|---|---|
| Running Distance | According To Customers'demand | Warranty | 24 Months |
| Load Capacity | 1-1500T | Application | Industry, Workshop, Warehouse Transfer |
| Port | Qingdao/Tianjin/Shanghai | Color | Customized |
| Operation | Pendant+ Remote Control | ||
| Highlight | Steel Platform Rail Track Trolley,Hydraulic Steering Rail Track Trolley,20m/min Rail Track Trolley |
||
Product Description

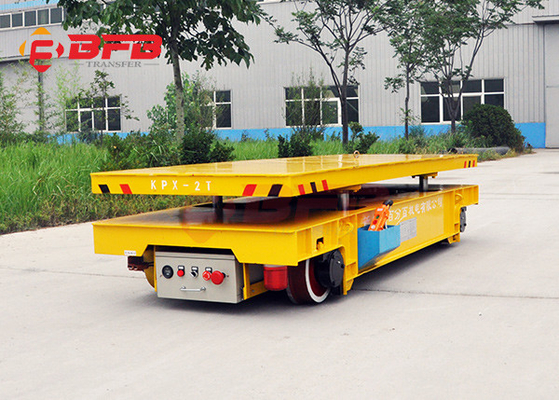

Steel Platform Motorized Electric Rail Track Trolley With Hydraulic Steering System
Steel platform motorized electric rail track trolley with hydraulic steering system refers to an electric transfer car that can be raised and lowered on the steel platform. This series of electric rail track trolleys can lift and lower the table. The lifting system is generally a hydraulic lifting system, and the lifting system is stable. And does not affect the normal operation of the transfer trolley.
Feature
- Anti-high temperature
- Safe devices are installed
- Customization can be supported
- Apply to various occasions
- The hydraulic lifting can be installed as per your true demand
- V frame is added for cylinder
- safety, flexibility, stable start, big starting torque, small capacity to the gear gearing
-
Running on the track, running smoothly.
-
The table can be raised and lowered.
-
The running speed is adjustable.
BEFANBY can customized different transfer cart from variour Industry
Technique Parameter
| Model | KPDZ-2t | KPDZ-5t | KPDZ-10t | KPDZ-16t | KPDZ-20t | KPDZ-25t | KPDZ-30t | KPDZ-40t | KPDZ-50t | KPDZ-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
Brief Introduction----BEFANBY
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Why Choose Us
Transportation Showing
How to choose suitable transfer trolley?
All of our transfer carts all customized as client's requirement, for choose the most suitable transfer trolley,please kindly providing the following information:
- Transfer or handling what material/cargo?
- What capacity do you need?
- This trasnfer trolley is running on rails or ground(floor)?
- Your requirment for table size:length,width and height?
- How about the running distance?
- How many working hours in per day?
