15t Remote Control Rail Scissor Lift Transfer Cart
Place of Origin | Henan,China |
---|---|
Brand Name | BEFANBY |
Certification | CE,SGS,ISO9001 |
Model Number | KPX |
Minimum Order Quantity | 1 set/sets |
Price | Negotiation |
Packaging Details | The transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
Delivery Time | 40-50 days as usual delivery,30-40 days for urgent delivery |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Customized | Application | Warehouse,steel Factory,shipbuilding |
---|---|---|---|
Running Speed | 0-20m/min | Warranty | 12 Months |
Lifting Height | Customized | Load Capacity | 1-1500T |
Operation Type | Hand Pendant + Remoete Control | Power Supply | Battery Powered |
Highlight | Remote Control Lift Transfer Cart,15t Scissor Lift Transfer Cart,Rail Scissor Lift Transfer Cart |

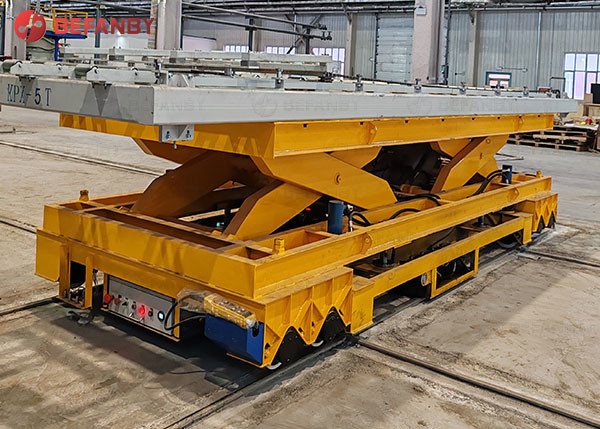

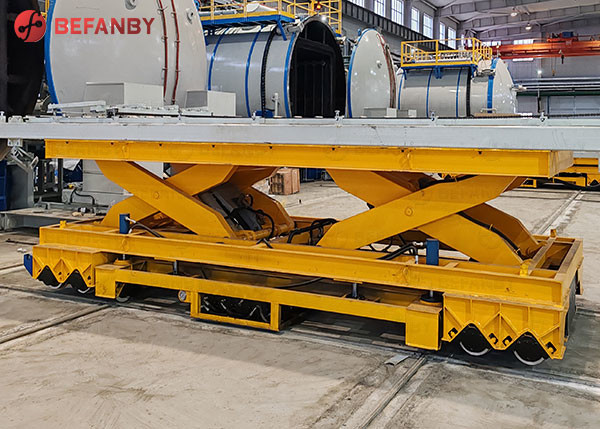

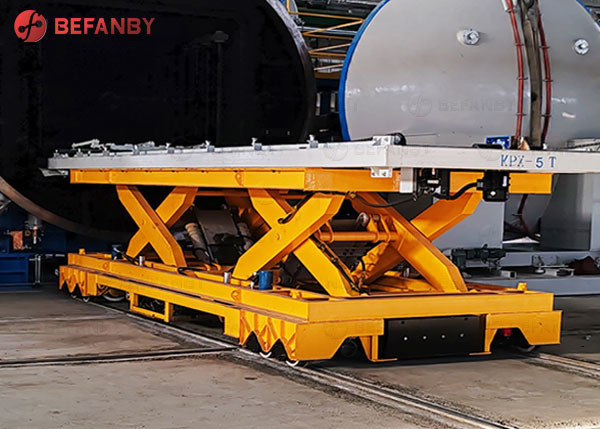

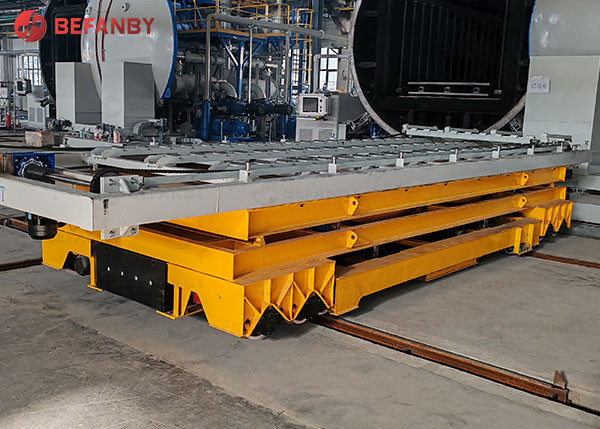

15t Remote Control Rail Scissor Lift Transfer Cart
The scissor-type rail electric transfer vehicle is a modern logistics equipment that can effectively improve the efficiency and safety of logistics operations. With its unique design and excellent performance, it has become the tool of choice for many transportation industries. This article will introduce in detail the working principle, main features and application of scissor-type rail electric transfer vehicles in the logistics industry.
1. Working principle of scissor track electric transfer vehicle
The scissor-type rail electric transfer vehicle uses an electric drive system, and the motor drives the scissors to rise or fall vertically, thereby realizing the loading, unloading and transportation of goods. What makes it unique is that the vehicle can drive along the track, maintaining stability and balance.
2. Main features of scissor-type rail electric transfer vehicles
1. Flexibility: The scissor-type track electric transfer vehicle can be customized according to needs and is suitable for loading and unloading items of various specifications and weights.
2. Safety: The crawler drive design has high stability and balance, which can reduce the risk of cargo damage during transportation.
The scissor-type rail electric transfer vehicle is an indispensable advanced tool in the logistics industry. Its excellent performance and wide range of applications make it the first choice for logistics companies that pursue high efficiency and high quality.
2. Details Showing
3. Advantage
Model | KPX-2t | KPX-5t | KPX-10t | KPX-16t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
Height(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
Motor Power | 1 | 1.2 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
Battery Capacity | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
Battery Voltage | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
