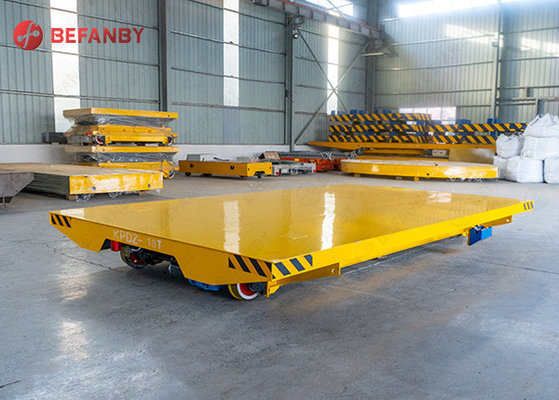

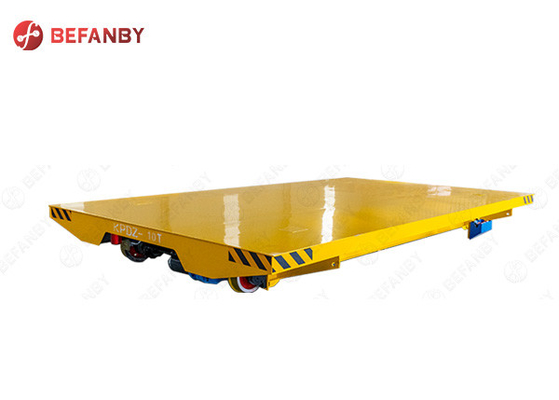

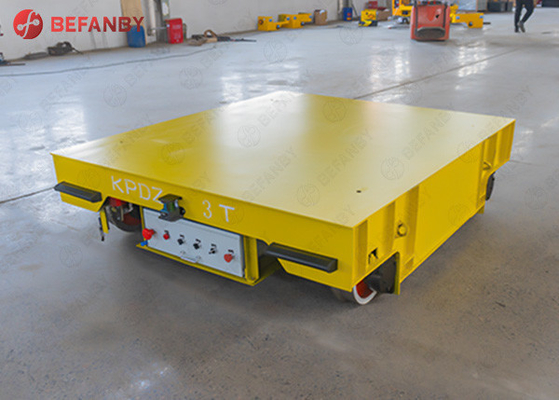

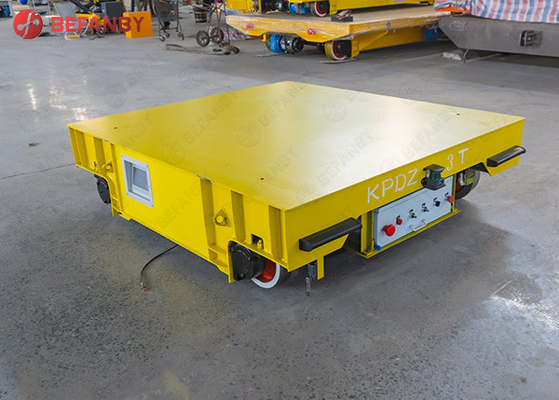

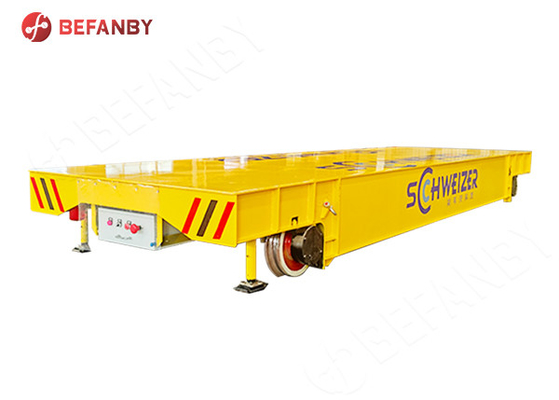

Integrated Flat Decking 2T Rail Transfer Cart For Workshop Handler

  • Integrated Flat Decking 2T Rail Transfer Cart For Workshop Handler
  • Integrated Flat Decking 2T Rail Transfer Cart For Workshop Handler
  • Integrated Flat Decking 2T Rail Transfer Cart For Workshop Handler
  • Integrated Flat Decking 2T Rail Transfer Cart For Workshop Handler
  • Integrated Flat Decking 2T Rail Transfer Cart For Workshop Handler
  • Integrated Flat Decking 2T Rail Transfer Cart For Workshop Handler
Place of Origin Henan, China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPD
Minimum Order Quantity 1 set/sets
Packaging Details The light mover rail trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 set/sets per year
Product Details
Material Q235 Running Speed 0-20m/min
Running Distance According To Customers'demand Warranty 18 Months
Load Capacity 1-1000T Application Industrial Field, Metal Plant Use,workshop Handler
Port Qingdao/Tianjin/Shanghai Color Customized
Power Supply Low Voltage Rail Powered Operation Type Hand Pendent + Remote Control
Rail And Wheel Insulated Material Will Be Added
High Light

2T Rail Transfer Cart

,

Q235 Workshop Handler Rail Transfer Cart

,

20m/min Integrated Rail Transfer Cart
Leave a Message
Product Description
2T Electric Power Light Mover Rail Trolley Transfer Cart For Workshop Handler


1. Product Introduce





KPDZ series rail trolley is a low-voltage rail power supply series of electric transfer cars. it connects ac 36v two phases to two tracks respectively. the wheels on the track lead ac 36v power into the on-board electrical box. after rectification module, ac 36v is rectified into dc 36v, and then dc motor is controlled by dc control system to realize a series of movement of flat cars. this series of flat cars can run on s track. the running distance of low-voltage rail power supply series electricrail trolleys is not limited, more than 70 meters, as long as the number of transformers is increased. it is easy to operate and maintain when it is used frequently. this rail trolley can achieve transportation, lifting, rollover, table rolling, in addition, the company can customize for customers, and research and development of customer needs. at present, the tonnage is from 1-200t, which can be installed with handle and remote control. the safety configuration is quite complete, and the stop device is used in case of people. it attaches great importance to reputation and quality, so it has become a leading enterprise in henan electric flat car industry. kpdz series of electric rail trolleys because of its many advantages are also favored by many enterprises!





About BEFANBY, Our company have professional team and utilize more advanced technique to design and develope it , and it has been a long year to manufacture it attentively. Simutaneously, it will be more easy and flexible.Simple structure and low cost make it popular for workshop transportation.

f

Please contact us if you's like to learn more details and get the quotation.



BEFANBY have over 16 years' experience in the material handling fields.

2T Electric Power Light Mover Rail Trolley Transfer Cart For Workshop Handler

2T Electric Power Light Mover Rail Trolley Transfer Cart For Workshop Handler2T Electric Power Light Mover Rail Trolley Transfer Cart For Workshop Handler



2. Application


1. All kinds of coils (V-Groove Deck)

2. Tanks (Size/Stability For Uniformly Distributed Loads)

3. Assemblies (Fixture Cradle) For A Complete Build Or To Send A Partially Completed Product To The Next Station (Tractors, Heavy Equipment Machinery)

4. Sub-Assembly Shuttle From One Line To Another Line

5. Maintenance Cart For Motors And Pumps

6. Equipment Support (Stand-Off Deck) For Navigating Loads To Locations With A Plant Facility

7. Material Shuttle For Steel Tubing (Flat Decking With Guard Rails)

8. Elevating Platform For Assembly Process (Integrated Screw-Jack Table)

9. Sand Casting (Flat Decking)

2T Electric Power Light Mover Rail Trolley Transfer Cart For Workshop Handler2T Electric Power Light Mover Rail Trolley Transfer Cart For Workshop Handler


3. Befanby Material Handling Equipment Introduce

factory manufacturer flat cars custom manufacture flat carts high speed rail

The 2T Electric Power Light Mover Rail Trolley Transfer Cart For Workshop Handler used to carry heavy objects in the workshop. Generally speaking, the driving behavior on the track is limited. In order to solve these problems, Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. has developed non-standard vehicles such as turntables, turning vehicles, and shuttle vehicles to assist in the use. Industrial rail flat cars are powered by KPX battery, KPD low-voltage rail power supply, KPJ cable reel power supply and KPC trolley line power supply; the track laying requirements of rail flat cars need to be appropriately based on power supply and factory conditions, such as low voltage Rail power supply requires insulation treatment; high temperature resistance treatment is required under high temperature conditions. In addition, the customization of industrial rail cars needs to be customized according to the specific needs of users, and the size of the design needs to be calculated by the technicians for the load.
2T Electric Power Light Mover Rail Trolley Transfer Cart For Workshop Handler





Welcome to inquiry us if you'd like to learn more

4. Technique Parameter
KPD series is a railway transfer trolley material handling equipment used in warehouses; KPX series is a battery electric motorized rail platform transfer trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered electric rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.

Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50



Exported Company

2T Electric Power Light Mover Rail Trolley Transfer Cart For Workshop Handler
