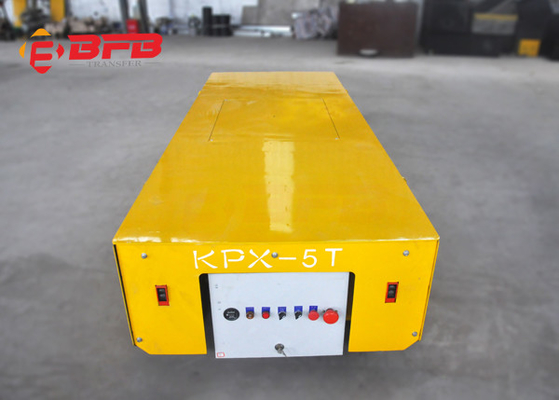

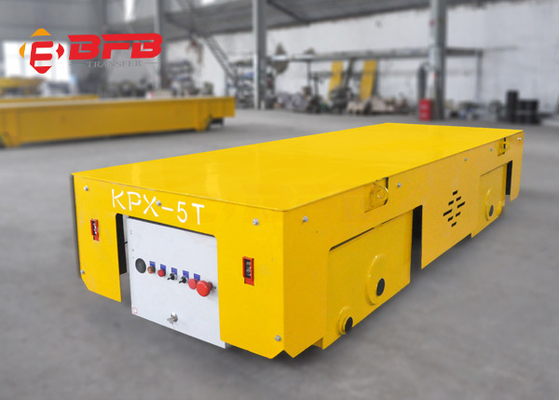

OEM 15T Battery Transfer Cart For Spraying Room 20m/Min
| Place of Origin | Xinxiang |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX-10 ton |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | Electrical parts will add shields. As required by the customer, we can add a fixed packing. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Peoduct Name | Customized Coil Transport Cart | Capacity(t) | 1-1000 Tons |
|---|---|---|---|
| Package | The Whole Cart Is Packed By High Quality Plastic Cloth | Color | Red, Yellow, Blue |
| Operation Type | Hand Pendant+ Remote Control | After-sales Service Provided | Field Maintenance And Repair Service |
| Warranty | 2 Years | Running Speed | 0-20m/min |
| Motor | Dc Motor | Power Source | Battery Powered |
| Application | Steel, Aluminum Coil, Roller, Cylinder Transfer | OEM | Accept |
| High Light | 15T Battery Transfer Cart,20m/Min Remote Battery Transfer Cart,SGS Spraying Room Battery Transfer Cart |
||
Product Description
15 Ton Battery Rail Transfer Cart Manufacturer
15 Ton Battery Rail Transfer Cart Manufacturer apply for spraying room is mainly applied in steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), production line (raw material handling, finished products transport), metallurgy industry (steel ladle), warehouse transport, mold plant (dies, molds transport from one bay to another), ship industry (steel parts transfer, maintenance, assemble, container transport), workpieces transport in workshop, lathe transport, construction (bridge, simple building, concrete, concrete column), energy (poly crystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort, equipment transport), etc.
| Model | KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
BEFANBY Company
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand
Cutomer from worldwide
BEFANBY advantages
- Our commitment: The load bearing safety factor of the trolley is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
