Precast Rails 40T Steel Pallet Material Transfer Carts Battery Powered
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The pallet transfer vehicle will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Color | Customized |
|---|---|---|---|
| Application | Industrial Field, Steel Pallet Transfer | Running Speed | 0-20m/min |
| Running Distance | Unlimited | Warranty | 24 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-1000 Ton Payload |
| Operation Type | Hand Pendant + Remote Control | Power Supply | Battery Powered |
| Advantage | More Than 17 Years' Experience For Transporting Sections Of Vessel Between Buildings Of Shipyard | Option Power | Cable Power Supply, Trolly Line, Low Voltage Rail, Diesel, Etc. |
| High Light | 40T Steel Pallet Material Transfer Carts,Precast Rails Material Transfer Carts,Q235 Material Transfer Carts |
||
Product Description
40T Steel Pallet Transfer Vehicle For Precast On Rails
40T steel pallet transfer vehicle, it is an electric material handling transfer cart powered by battery which is designed for heavy duty material or equipment transfer in the factory. we can cusomized different type transfer vehicle on demand as per your demand.
Operation Guidance
1. before entering the workshop, employees must wear all labor protection articles and protective articles, otherwise they are absolutely not allowed to enter the production workshop.
2. before using the electric transfer vehicle, check whether the exterior of the cart is intact, whether the transmission mechanism and its lubrication are normal, remove the production waste or large obstacles accumulated on both sides and in the middle of the track, as well as articles that may affect the normal use of the electric flat car, and start the use signal for use before work.
3. during the operation of the electric transfer cart, avoid the danger of slipping and falling of inertial load, and avoid emergency start and emergency stop, so as to avoid safety accidents.
4. during the operation, two people must work at the same time. one person operates the electric transfer vehicle, the other person pays attention to the items carried on the car and the surrounding environment, reminds the staff to pay attention to safety in the past, notifies the operator immediately after finding the situation, and takes corresponding measures to prevent accidents that harm others or themselves.
customization requirements:hydraulic lifting,electric roller automatic conveying,landmark location,automatic track alignment,hmi human machine interface,automatic scheduling
contact us for a free consultation based on your requirements.
Technique Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

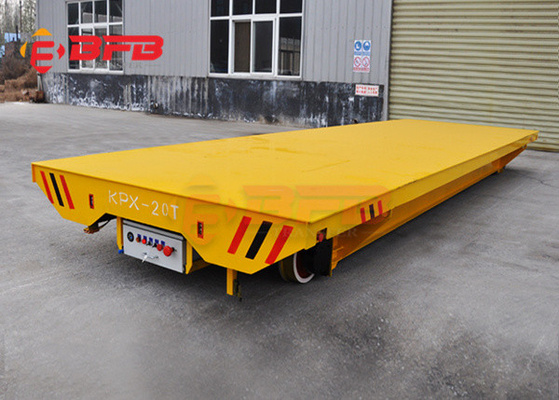

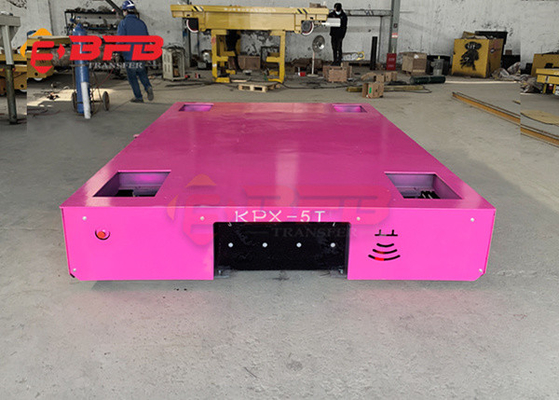

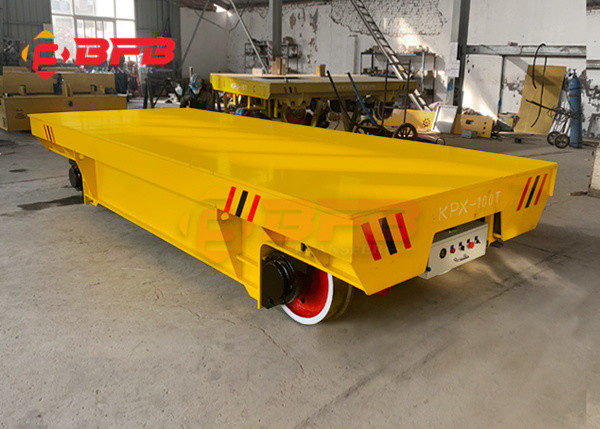

Detailed Images of 50 Ton Battery Track Transfer Vehicle For Die Transportation
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
