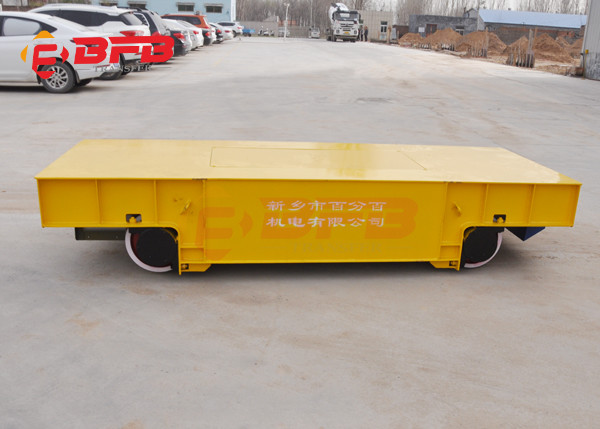

25T Steel Platform Rail Battery Operated Cart Remote Control

Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The rail electric wagon will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235 Color Customized
Application Industrial Field, Battery Powered Transfer Wagon Running Speed 0-20m/min
Running Distance Unlimited Warranty 24 Months
Port Qingdao/Tianjin/Shanghai Load Capacity 1-1000 Ton Payload
Operation Type Hand Pendant + Remote Control Power Supply Battery Powered
Advantage More Than 17 Years' Experience For Transporting Sections Of Vessel Between Buildings Of Shipyard Option Power Cable Power Supply, Trolly Line, Low Voltage Rail, Diesel, Etc.
High Light

Steel Platform Rail Battery Operated Cart

,

Q235 Steel Rail Battery Operated Cart

,

SGS Remote Battery Operated Cart

Leave a Message
Product Description
25T Steel Platform Structure Rail Electric Wagon For Sale



The rail electric wagon is an electric driven material transfer cart which is running on the rails. it is designed for coil material handling from one bay to another in the working site.

as the motorised transport carts are equipped with steel wheels and move on steel rails, and the very low friction between steel and steel, the railway transport carts are suited to very high loading capacities.



complete absence of pollution (with total flexibility of use, both indoors and outdoors)

1. almost complete absence of maintenance

2. increase in wagon's useful life periods (the replacement of an electric motor is very simple and cheap)

3. huge decrease in noise pollution

4. possibility of automation.

25T Steel Platform Structure Rail Electric Wagon For Sale

25T Steel Platform Structure Rail Electric Wagon For Sale





Rail Installation Guidance

the rail installation models of electric wagon usually include p18, p24, p43 (p18 explanation: light rail weighing 18 kg per meter) and so on. generally, it is light rail. heavy rail is used for the track of electric flat car above 100t. the smaller the tonnage is, the smaller the track model is. the track of electric flat car is installed with three types: the track tread is higher than the ground, flush with the ground and lower than the ground. generally, the track of electric flat car with a download weight of more than 5t needs to be used as the foundation to avoid damage to the workshop foundation. when making the foundation, bolts need to be embedded to fix the track. after the installation of the track of electric flat car, the ground is made in the secondary pouring. the above is a brief introduction to the laying method of ordinary track. when you are using low-voltage track electric flat car, because the track is electrified, the track needs to be insulated from the earth. before installing the track, you need to lay an insulating pad on the foundation. if you want to pursue the quality, you can lay a layer of asphalt, the embedded bolts also need to use insulating bolts, and the track pressure plate needs to use insulating materials..



Technique Parameter

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8



All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
