Remote Control Workshop 45mt Battery Transfer Cart Die Mold Loading On Rail Track
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The die mold loading cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Color | Customized |
|---|---|---|---|
| Application | Industrial Field, Die Mold Transfer | Running Speed | 0m/min |
| Running Distance | 70m, Customized On Demand | Warranty | 24 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-1000 Ton Payload |
| Operation Type | Hand Pendant + Remote Control | Power Supply | Battery Powered |
| Advantage | More Than 19 Years' Experience For Rail Car Manufacturer | Option Power | Cable Power Supply, Trolly Line, Low Voltage Rail, Diesel, Etc. |
| Highlight | 45mt battery transfer cart,remote control workshop battery transfer cart,45mt battery operated transfer trolley |
||
Product Description
Remote Control Workshop 45mt Die Mold Loading Cart On Rail Track
BEFANABY develops and produces handling equipment, not only can customize standard electric loading carts, but also customize non-standard electric loading carts for handling various molds.
The mold loading cart, as the name suggests, is an electric handling equipment used to transfer various molds. Due to the inconsistent sizes and styles of various molds, when the electric flatbed truck is not suitable for handling, special handling equipment needs to be used to transport such molds. Therefore, use The electric equipment to transport the mold is collectively referred to as the mold transfer vehicle.
The mold loading cart can be customized as an electric cart with or without a track, or it can be a non-powered car. The unpowered car can be pulled manually or by the tractor. Because some molds have special characteristics such as high temperature, it is recommended that the mold transfer car use electric driving to avoid the harm to the human body.
Technical Parameter
1. Model: KPX
2. Capacity: 45mt
3. Table Size: 3600*2000*600mm
4. Power: Battery Powered
5. Running Speed: 0-20m/min
6. Operation: Hand Pendant + Remote Control
Customized Manufacturer
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

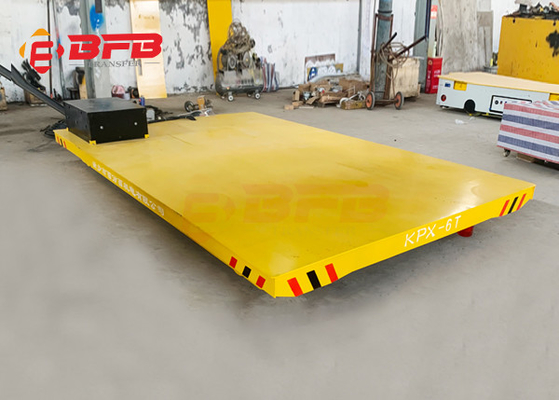

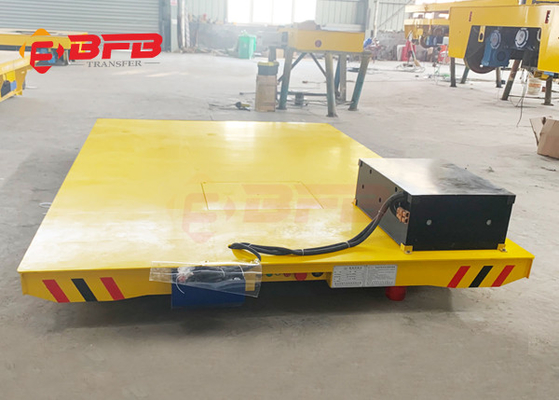

Detailed Images of die mold loading cart manufacturer
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
