Battery Powered Flatbed Load Transfer Trolley Steel Structure 10mt
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The steel structure transport cart will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235B Steel | Color | Customized |
|---|---|---|---|
| Application | Industrial Field, Steel Structure Transport | Running Speed | 0-20m/min, Adjusted Spped |
| Running Distance | 90m, Customized On Demand | Warranty | 24 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-1500 Ton Payload |
| Operation Type | Hand Pendant + Remote Control | Power Supply | Battery Powered |
| Advantage | More Than 19 Years' Experience For Transport Cart | Option Power | Cable Power Supply, Sliding Line, Low Voltage Rail, Diesel, Etc. |
| High Light | battery powered flatbed load transfer trolley,steel structure load transfer trolley,10mt battery transfer cart |
||
Product Description
Battery Powered Flatbed Steel Structure Transport Cart 10mt
BEFANABY develops and produces handling equipment, not only can customize standard electric transport carts, but also customize non-standard electric transport carts for handling various molds.
The steel structre transport cart is a rail-type transportation vehicle, which needs to lay a rail on the ground. The rail is generally an I-shaped surface contacting the rails; secondly, it is an electric drive vehicle, which runs automatically under the drive of a motor reducer. This kind of transport cart has a flat surface without a cover, and sometimes it can be non-planar but without a cover. The cart body has no steering wheel, only forward and backward directions (even if it turns, it will turn on the track). This kind of vehicle has the characteristics of simple structure, convenient use, large carrying capacity, no fear of being dirty or smashed, easy to maintain, and long-term use. A means of transport that frequently carries heavy loads over short distances.
Technical Parameter
1. Model: KPX
2. Capacity: 25mt
3. Table Size: 3600*2000*600mm
4. Power: Battery Powered
5. Running Speed: 0-20m/min
6. Operation: Hand Pendant + Remote Control
Customized Manufacturer
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

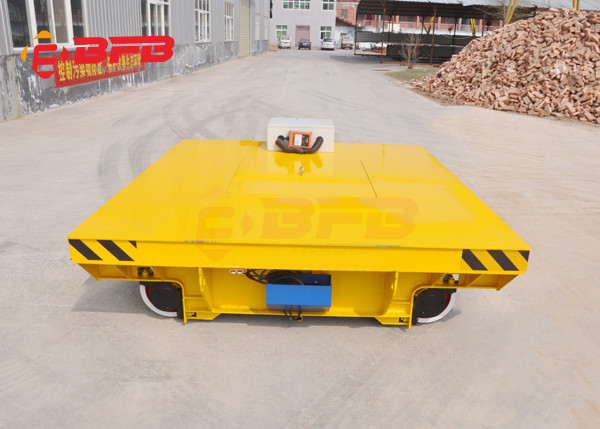

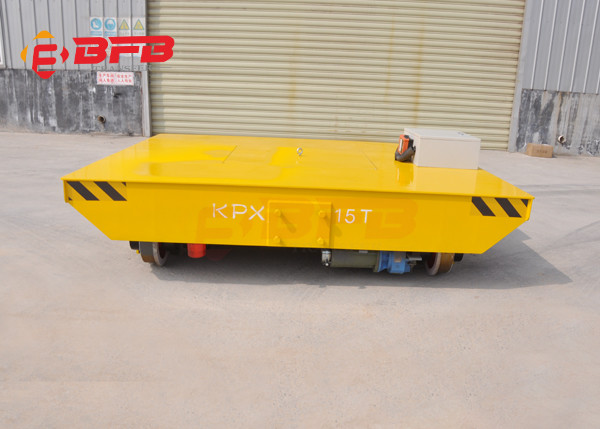

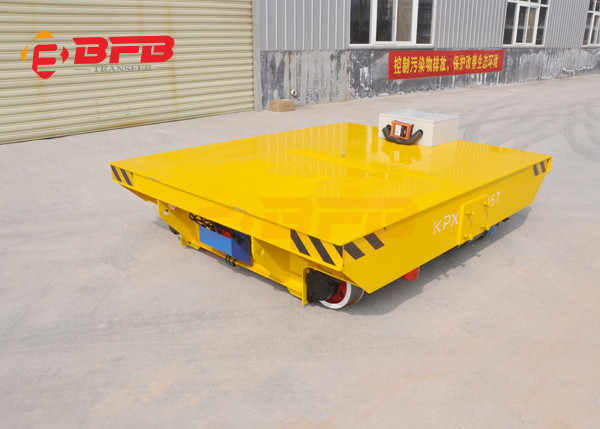

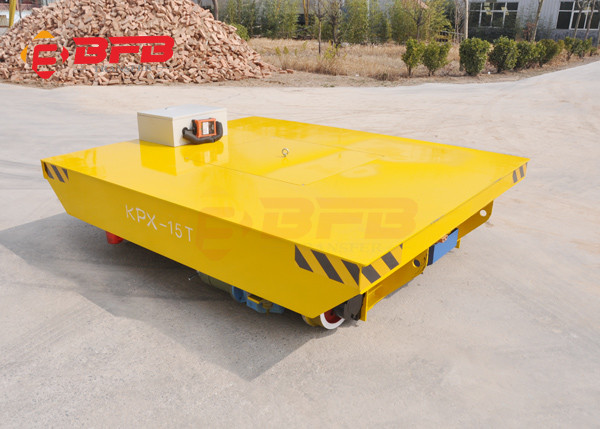

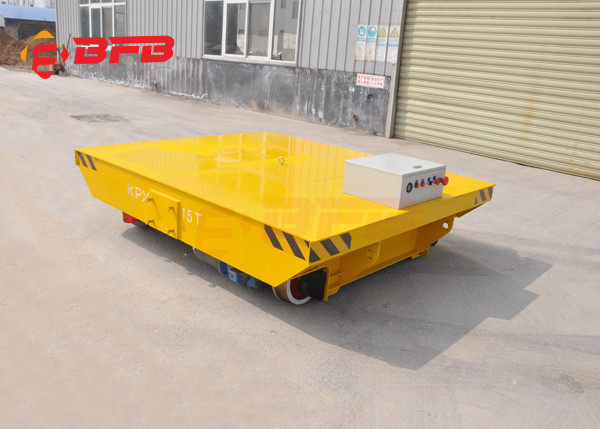

Detailed Images of steel structure transport cart manufacturer
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
