45 Tons Battery Transfer Cart Steerable Steel Shop Floor Rail Trolley For Factory

Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number KPX
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The shop floor rail trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1500 set/sets, per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235B Steel Color Customized
Application Industrial Field, Steel Shop Floor Transfer Running Speed 0-20m/min, Adjusted Spped
Running Distance 90m, Customized On Demand Warranty 24 Months
Port Qingdao/Tianjin/Shanghai Load Capacity 1-1500 Ton Payload
Operation Type Hand Pendant + Remote Control Power Supply Battery Powered
Advantage More Than 19 Years' Experience For Rail Trolley Option Power Cable Power Supply, Sliding Line, Low Voltage Rail, Diesel, Etc.
High Light

45 tons battery transfer cart

,

steerable battery transfer cart

,

45 tons battery transfer trolley

Leave a Message
Product Description

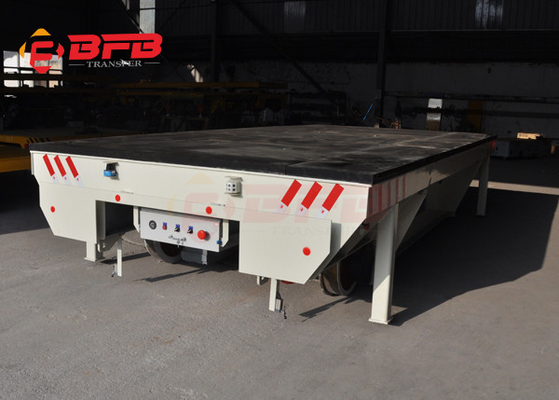

45 Tons Steerable Steel Shop Floor Rail Trolley Factory


BEFANABY develops and produces handling equipment, not only can customize standard electric transport carts, but also customize non-standard electric transport carts for handling various molds.
The steel shop floor rail trolley is a rail-type transportation vehicle, which needs to lay a rail on the ground. The rail is generally an I-shaped surface contacting the rails; secondly, it is an electric drive trolley, which runs automatically under the drive of a motor reducer. This kind of transport trolley has a flat surface without a cover, and sometimes it can be non-planar but without a cover. The cart body has no steering wheel, only forward and backward directions (even if it turns, it will turn on the track). This kind of vehicle has the characteristics of simple structure, convenient use, large carrying capacity, no fear of being dirty or smashed, easy to maintain, and long-term use. A means of transport that frequently carries heavy loads over short distances.



Maintenance Attention

1. The air duct of the motor must be unobstructed, and no heat source can be placed around the motor, and preventive measures should be taken in time when problems are found.
2. Under normal conditions, change the grease every six months. When replacing the grease, first wash the bearing with kerosene or gasoline, and then fill two-thirds of the bearing chamber with grease, too much or too little is not good for lubrication.
3. The motor should be inspected regularly, usually a minor inspection every three months, and an overhaul once a year. If the motor winding is burned out due to an accident, it should be disassembled in time to analyze the cause. Usually, the auxiliary winding is burned out due to the failure of starting switching or the capacitor is short-circuited; the main winding is burned out due to long-term overload or stalled starting. Replace the motor winding and remove the cause of the accident before it can be reused.
4. During the use of the electric rail trolley, it is necessary to regularly check the technical status of each component, clean up the dust, water, oil and iron filings that may enter the body in time, and do a good job in the daily maintenance of the electric rail trolley.

45 Tons Steerable Steel Shop Floor Rail Trolley Factory



Customized Manufacturer

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8



All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
