Q235 Hydraulic Electric Powered Cart For Bracket Transportation

Place of Origin Henan,China
Brand Name BEFANBY
Certification CE,SGS,ISO9001
Model Number BWP
Minimum Order Quantity 1 set/sets
Price Negotiation
Packaging Details The remote operated vehicle will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 40-50 days as usual delivery,30-40 days for urgent delivery
Payment Terms L/C, T/T, Western Union
Supply Ability 1000 set/sets, per year
Product Details
Material Q235 Color Customized
Warranty 18 Months Load Capacity 1-1000 Ton, Customized 30t Capacity
Moving Speed 0-20m/min Running Ways Unlimited Distance, Multidirectional, Go Straight
Power Supply Mintenance Free Battery Powered For Remote Operated Vehicle Port Qingdao/Tianjin/Shanghai
Application Industial Field, Workshop Advantage Material Handling Solution Designer
Operation Method Hand Held Push Button + Remote Control
High Light

Q235 Bracket Transfer Powered Cart

,

BWP Hydraulic Battery Powered Cart

,

Hydraulic Battery Transfer Cart Q235

Leave a Message
Product Description

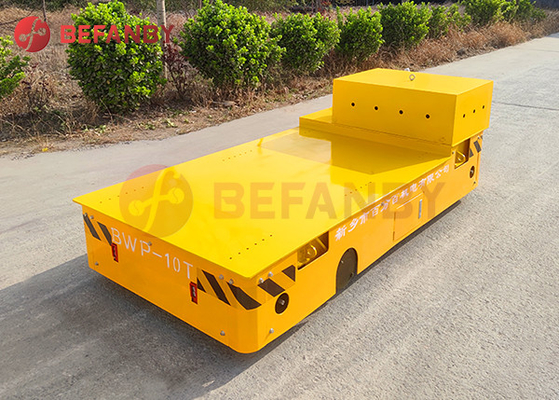

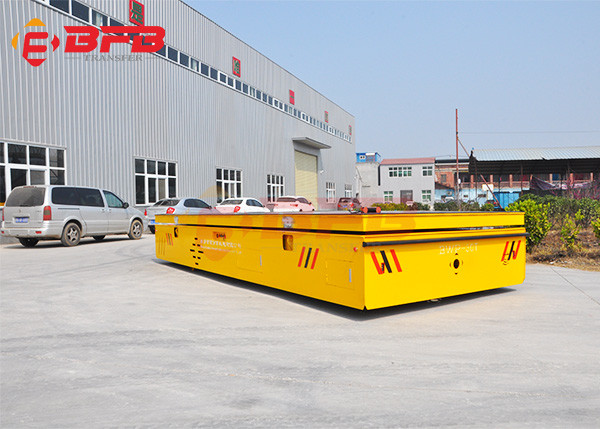

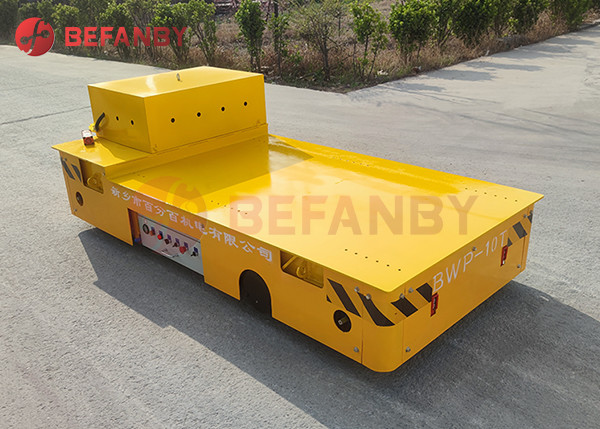

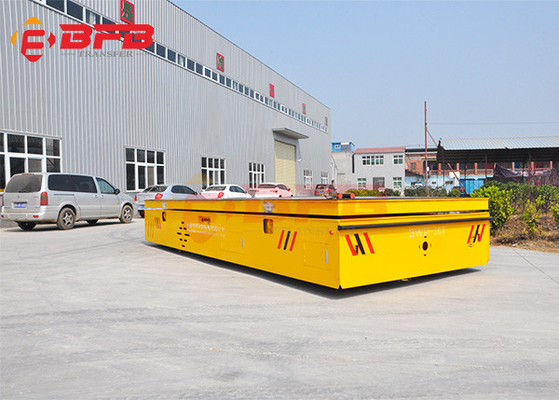

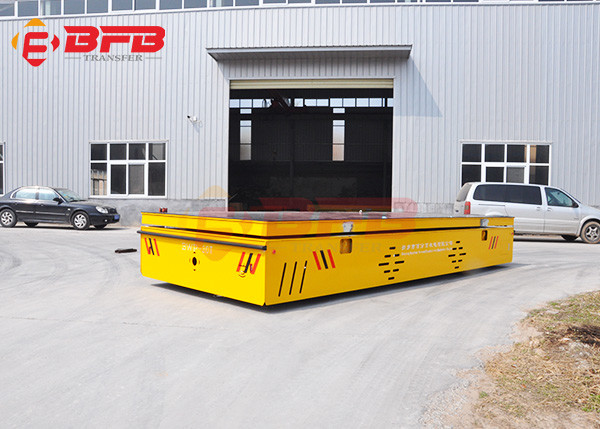

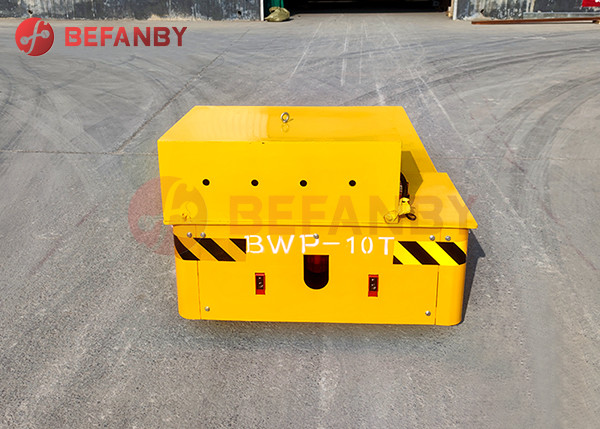

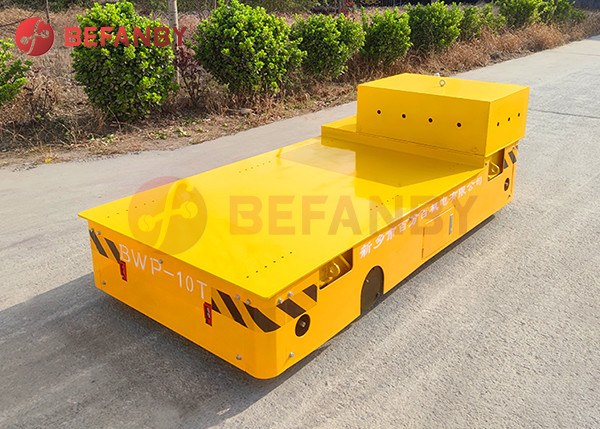

15 Ton Hydraulic Powered Transfer Car For Bracket Transportation



15 ton hydraulic powered transfer car is based on specially structured rubber wheels as well as the velocity vector synthesis technology. by precisely controlling the rotary speed and direction of various wheels, the mobile platform could realize movement in any direction and turn, without the steering system on conventional transfer cars. such characteristics bring it huge strength when compared with conventional transport systems. when operating on narrow sites, it has zero turning radius and travels freely; when docking is needed, it could move omnidirectionally thus increasing efficiency; when working under high precision demands, it could make slight and precise adjustments to its position.

Component including: car frame, dc motor, speed reducer, electric control box, storage battery, intelligent charger, driving device, fixed wheels, swivel wheels, braking device, controller, remote-controller, speed controller, lighting alarm and sound alarm, safety bumper, operation device and safe detecting device.



Application

The hydraulic powered transfer car is designed for transporting cargoes or equipment from one bay to another in industry. it can be used indoor or outdoor. such as metallurgy, manufacture,oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coil industry, paper mills, metal working, warehouse, building construction and so on. its load capacity can up to 1500ton. we will supply you a suitable scheme according your specific appliciation.



Technical Parameter:

1. Model: BWP

2. Capacity: 15t

3. Table Size: 4000*2100*800mm

4. Power: Battery Powered

5. Running Speed: 0-20m/min

6. Operation: Hand Pendant + Remote Control

8. support customization

15 Ton Hydraulic Powered Transfer Car For Bracket Transportation

All products are customized on demand, inquiry us for your material handling solution!

15 Ton Hydraulic Powered Transfer Car For Bracket Transportation

15 Ton Hydraulic Powered Transfer Car For Bracket Transportation

unique product military machinery robot supplier flatbed truck steel metallurgy

 BEFANBY Companycar customized flatbed truck unique product steering mechanism car customized flatbed truck unique



Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. is a professional international handling equipment company integrating R&D, design, production and transnational sales. The company has a modern management team, technical team, and production technician team. With advanced management methods and service concepts, the company has already shown its brilliance at the beginning of its establishment. The company was established in 2003. The production plant is located in Yulin Township, Yanjin County, Xinxiang City. It covers an area of ​​50,000 square meters. It has modern large-scale factories and world-class production equipment. It covers an area of ​​33,300 square meters and has an annual production capacity of more than 1,500 handling equipment. Production of various tonnages between 1 and 1300 tons agv, KPD low-voltage track type, KPJ cable reel type, KPC safety trolley type, KPX battery type, KPT trailing cable type, KP unpowered type, train traction type, BWP trackless transport type , Special vehicles and other nine series, including turning type, trackless type, ladle type, painting room type, sand blasting room type, ferry type, hydraulic lifting type, circulation type, mining type, crane type, and more than 80 types of handling Equipment products and accessories for cranes, shaft-mounted reducers, explosion-proof motors, DC motors and other handling equipment accessories. car
