Electric Rail Coil Transfer Cart Battery Driven For Workshop 10 Ton
| Place of Origin | Henan,China |
|---|---|
| Brand Name | BEFANBY |
| Certification | CE,SGS,ISO9001 |
| Model Number | KPX |
| Minimum Order Quantity | 1 set/sets |
| Price | Negotiation |
| Packaging Details | The electric rail dolly will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Delivery Time | 40-50 days as usual delivery,30-40days for urgent delivery |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1500 set/sets, per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235 | Color | Customized |
|---|---|---|---|
| Application | Industrial Field, Coil Transfer | Running Speed | 0-20m/min |
| Running Distance | Unlimited | Warranty | 24 Months |
| Port | Qingdao/Tianjin/Shanghai | Load Capacity | 1-1000 Ton Payload |
| Operation Type | Hand Pendant + Remote Control | Power Supply | Battery Powered |
| Advantage | More Than 20 Years' Experience For Electric Rail Dolly | Option Power | Cable Power Supply, Trolly Line, Low Voltage Rail, Diesel, Etc. |
| High Light | Rabattery Driven Coil Transfer Cart,10Ton Electric Transfer Cart,Electric Workshop Coil Transfer Cart |
||
Product Description
Battery Driven Workshop Electric Rail Dolly 10 Ton With Coil Transfer
the battery driven workshop electric rail dolly is a good choice if meeting the following features:
1. the running distance is not limited to the battery driven rail dolly
2. low using frequency(the spare battery can be provided if higher using frequency)
3. despite turning or going straight, the rail dolly can realize
4. despite running indoor or outdoor, high temperature or explosive environment, ferry or cross rail, the rail dolly can realize.
5. dimensions, capacity, loading platform superstructure, speed, and many other special functions can be customized as per client request
customization requirements:hydraulic lifting,electric roller automatic conveying,landmark location,automatic track alignment,hmi human machine interface,automatic scheduling
contact us for a free consultation based on your requirements.
Technique Parameter
| Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
| Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
| Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

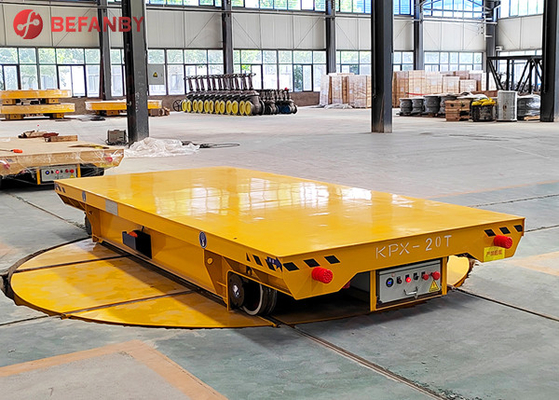

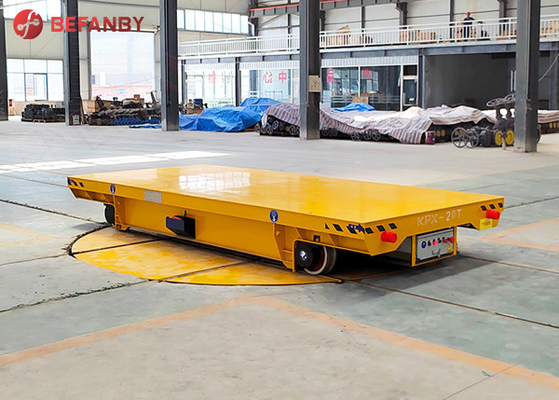

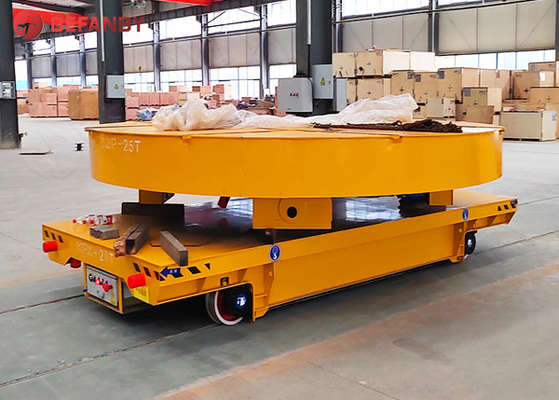

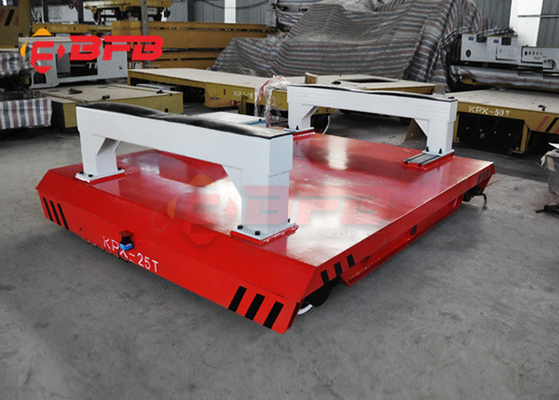

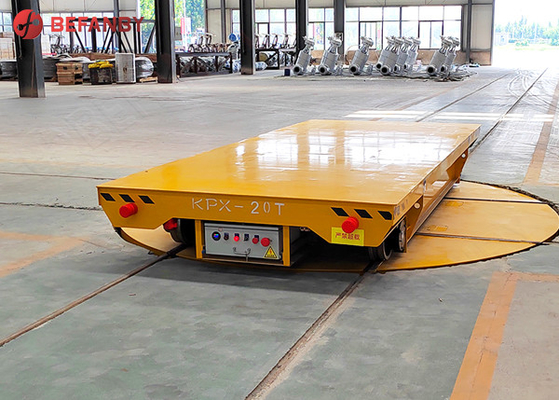

Detailed Images of Battery driven rail dolly
battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
